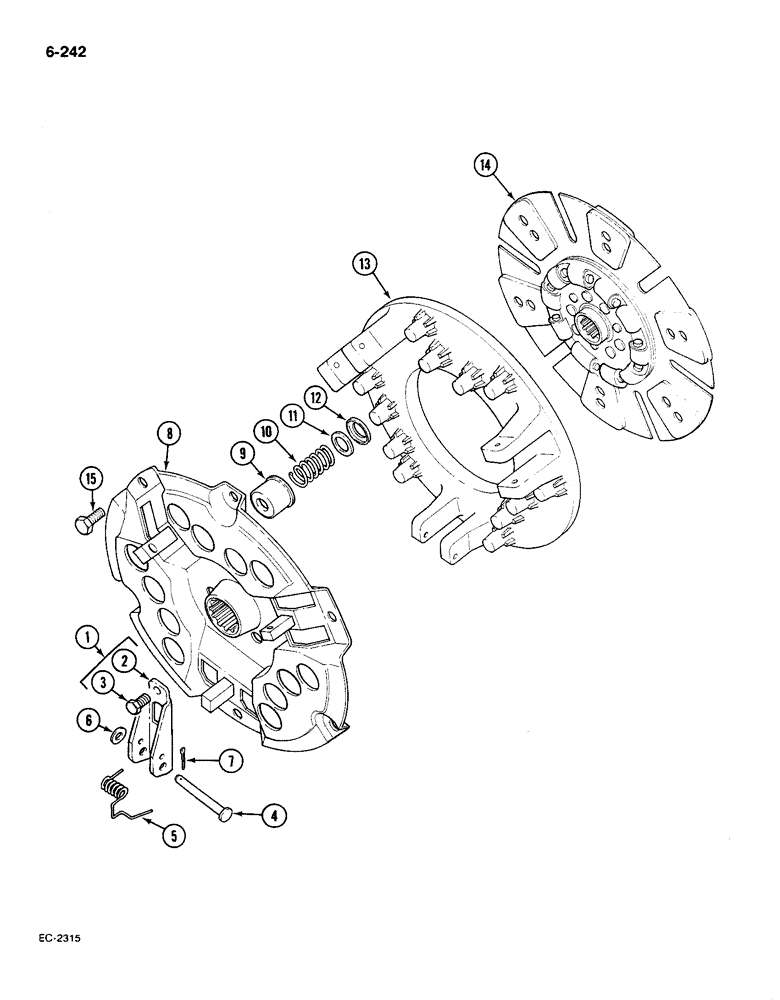

Запчасти Case IH 585 (6-242) - CLUTCH, HEAVY DUTY (06) - POWER TRAIN

85025C1

CLUTCH

PLATE pressure, Includes: Ref. 1-13

1шт.

84342556R

REMAN-CLUTCH PLATE

585 (1/86-12/90), Reman For New PN 85025C1

1шт.

84342556C

CORE-CLUTCH PLATE

Return Number

1шт.

.

85120C91

PACKAGE

lever assembly, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

LEVER release

3шт.

3

A25117

ADJUSTMENT SCREW,3/8" - 24 x 17/32"

SCREW adjusting

3шт.

4

149487R1

PIN

3шт.

5

375572R1

SPRING

3шт.

6

95-11034

WASHER,1/4"

plain, 0.344 x 0.688 x 0.051 inch

3шт.

7

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

8

85148C1

PLATE

back

1шт.

9

353316C1

CUP spring

12шт.

10

349934C1

SPRING

12шт.

11

311291C1

INSULATING WASHER

insulating

12шт.

12

311292C1

WASHER

retainer

12шт.

13

373614R1

CLUTCH, PRESSURE PLA,304.09mm OD

PLATE

1шт.

14

85026C1

CLUTCH DISC

PLATE clutch driven disc

1шт.

15

179881

BOLT,1/2" - 13 x 1", Gr 5

6шт.
