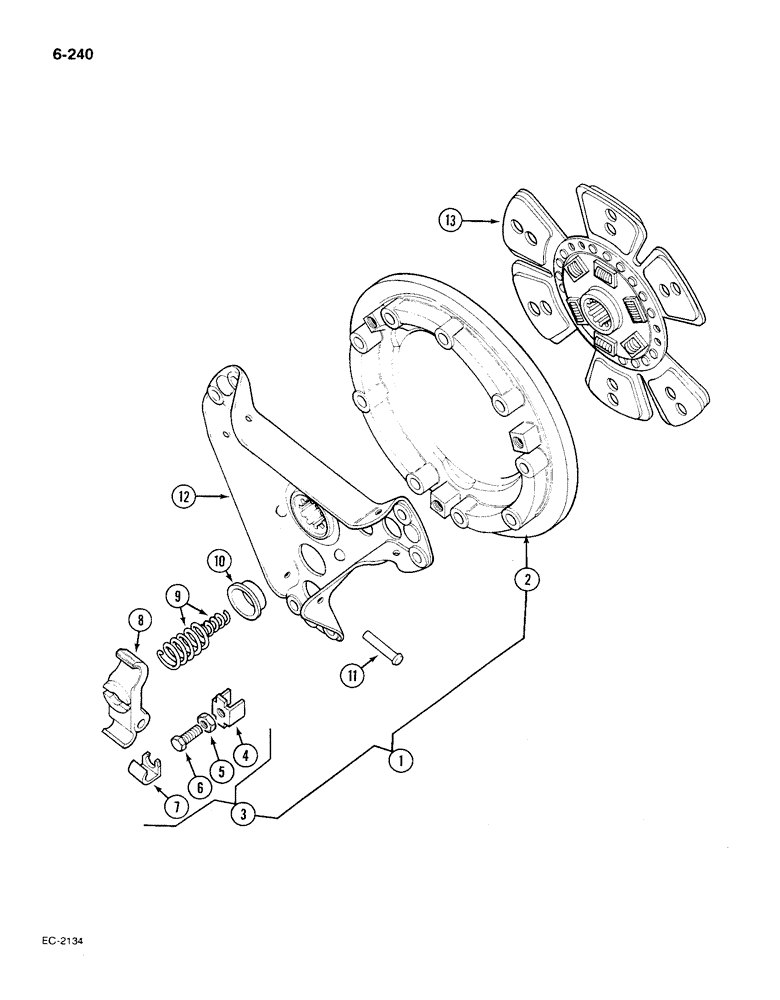

Запчасти Case IH 585 (6-240) - CLUTCH, 11 INCH LAYCOCK (06) - POWER TRAIN

1

92602C91

CLUTCH ASSEMBLY

COVER pressure plate, Includes: Ref. 1-12

1шт.

1

92602C92R

REMAN-CLUTCH PLATE,Pressure Plate Only

Remanufactured, Clutch Plate, 11 in, 10 Tooth Hub

1шт.

1

92602C92C

CORE-CLUTCH PLATE

Return Part Number

1шт.

1

92605C1

DISC

KIT pressure plate, Includes: Ref. 2-12

1шт.

2

NSS

NOT SOLD SEPARAT

PLATE pressure

1шт.

3

92607C1

PACKAGE

KIT adjusting screw and clip, Includes: Ref. 4-7

1шт.

4

NSS

NOT SOLD SEPARAT

CLIP lug

3шт.

5

NSS

NOT SOLD SEPARAT

LOCKNUT adjusting screw

3шт.

6

NSS

NOT SOLD SEPARAT

SCREW adjusting

3шт.

7

NSS

NOT SOLD SEPARAT

CLIP return

3шт.

8

NSS

NOT SOLD SEPARAT

LEVER release

3шт.

9

NSS

NOT SOLD SEPARAT

SPRING pressure

3шт.

10

NSS

NOT SOLD SEPARAT

CUP spring

3шт.

11

NSS

NOT SOLD SEPARAT

PIN pivot

3шт.

12

NSS

NOT SOLD SEPARAT

BRACKET

1шт.

13

3121507R94

CLUTCH DISC

CLUTCH DISK PLATE driven

1шт.

13

293248A1R

REMAN-CLUTCH DISC

585 w/Laycock Clutch, Reman For New P/N 3121507R94

1шт.

13

293248A1C

CORE-CLUTCH DISC

Return Part Number

1шт.
