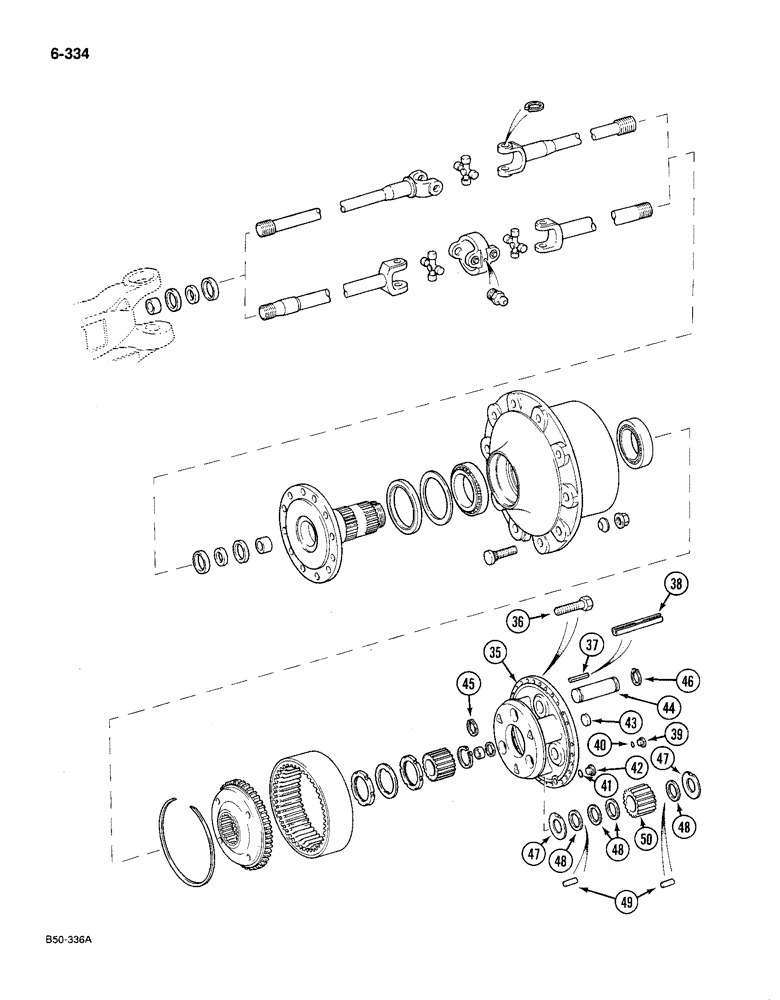

Запчасти Case IH 585 (5-334[JDS]) - WHEEL HUB AND DRIVE, FRONT, 4WD PRIOR TO P.I.N. 18001, CONTD (05) - STEERING

35

3230259R1

PINION CARRIER

CARRIER planetary

2шт.

36

930294R1

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

hex, M8 x 30 mm, class 8.8

54шт.

37

932840R1

LOCK PIN,M8 x 26, Slotted

PIN slotted spring, 8 x 26 mm

8шт.

39

934651R1

PLUG,Hex Soc, M18 x 1.5

2шт.

40

933222R1

SEALING WASHER,M18 x 22 x 1.5

2шт.

41

933709R1

PACKING RING

RING sealing, 24 x 29 mm

2шт.

42

933718R1

PLUG,Hex, M24 x 1.5

2шт.

43

933565R1

PLUG,M14, Conical

cup

2шт.

44

3230260R1

SHAFT

planet gear

6шт.

45

717072R1

SNAP RING,M22, Ext

RING retaining, external, 24 x 1.2 mm

6шт.

46

933255R1

CIRCLIP,Ext, M20.2

RING retaining, external, 22 mm

6шт.

47

3146668R1

THRUST WASHER

WASHER THRUST

12шт.

48

3146667R1

WASHER

special

12шт.

49

3230262R1

NEEDLE BEARING

BEARING needle

32шт.

50

3230261R1

GEAR

planet, 26 teeth

6шт.
