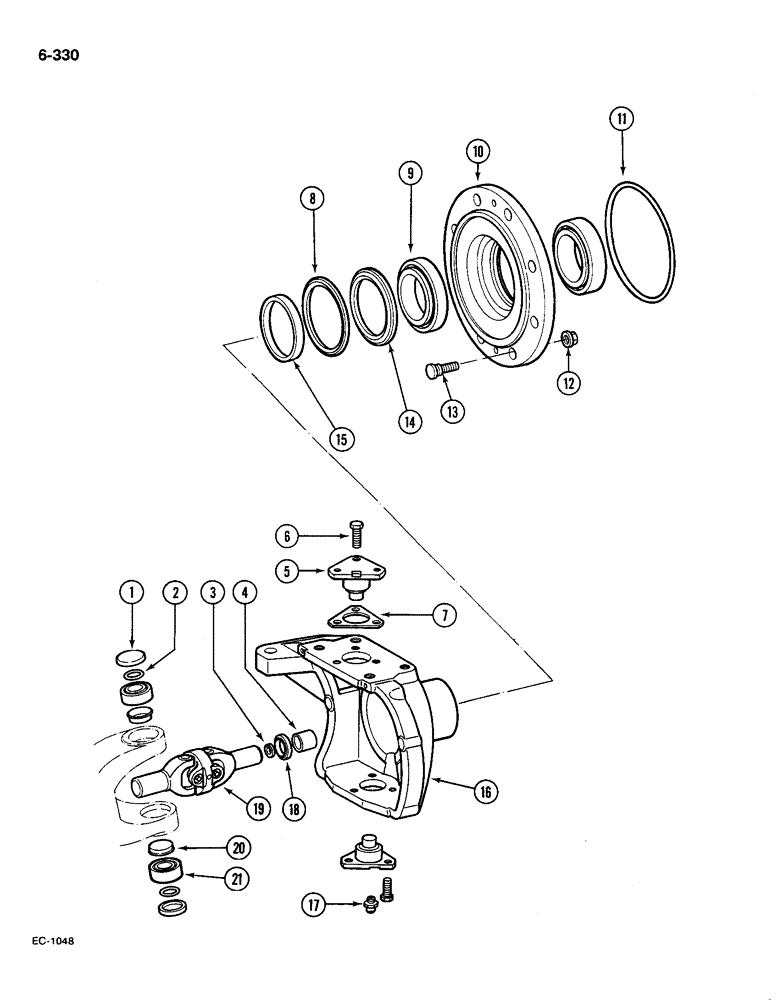

Запчасти Case IH 585 (5-330) - STEERING KNUCKLE,4 WHEEL DRIVE, APL-330/325, P.I.N. 18001 AND AFTER (05) - STEERING

NSS

NOT SOLD SEPARAT

HOUSING assembly, steering knuckle, Includes: Ref. 1-21

1шт.

1

81418C1

CAP

sealing

4шт.

2

81419C1

O-RING,2.5mm Thk x 34mm ID, 70 Duro

34 x 3 mm

2шт.

3

81409C1

RING, SNAP

RING retaining

2шт.

4

81429C2

BUSHING

SLEEVE

2шт.

5

81428C1

KNUCKLE

KING-PIN

4шт.

6

931590R1

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

hex, M12 x 30 mm, grade 10.9

12шт.

7

1975401C1

SHIM

0.2 mm

2шт.

7

1975400C1

SHIM

0.3 mm

2шт.

7

81426C1

SHIM

0.4 mm

2шт.

7

81420C1

SHIM

0.6 mm

2шт.

7

81427C1

SHIM

0.8 mm

2шт.

7

81421C1

SHIM

1.0 mm

2шт.

7

81422C1

SHIM

1.4 mm

2шт.

7

81423C1

SHIM

1.6 mm

2шт.

7

81424C1

SHIM

1.8 mm

2шт.

7

81425C1

SHIM

2.0 mm

2шт.

8

81311C1

SCRAPER RING

RING scraper

2шт.

9

81312C1

ROLLER BEARING,95 mm ID x 135 mm OD x 20 mm

BEARING roller

4шт.

10

81308C1

HUB

wheel

2шт.

11

81313C1

O-RING,200mm ID

200 x 3 mm

2шт.

12

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

hex, M18, wheel mounting

16шт.

13

81317C1

STUD

wheel mounting

16шт.

14

81310C1

SEALING RING

shaft

2шт.

15

81309C1

SLEEVE

2шт.

16

81413C1

HOUSING

steering knuckle, left

1шт.

16

81414C1

STEERING KNUCKLE

HOUSING steering knuckle, right

1шт.

17

A52371

FITTING

grease

4шт.

18

81411C2

SEAL

shaft

2шт.

19

81430C1

JOINT ASSY.

JOINT double, prior to APL-325 axle S/N 58040 and prior to APL-330 axle S/N 11956

2шт.

Ref #19 (P/N 81430C1) - Lube fitting for joint is P/N 712998R91

1шт.

19

1968450C1

JOINT ASSY.

JOINT double, APL-325 axle S/N 58040 and after, APL-330 axle S/N 11956 and after

2шт.

Ref # 19 1968450c1 - components:

1шт.

1342710c1 middle pivot

1шт.

1342711c1 spider (2)

1шт.

1342712c1 joint - fork

1шт.

1342713c1 joint - fork

1шт.

20

81415C1

CAP

end

4шт.

21

81416C1

BEARING, ROLLER

BEARING outer race

4шт.

21

81417C1

BEARING, ROLLER

BEARING inner race

4шт.
