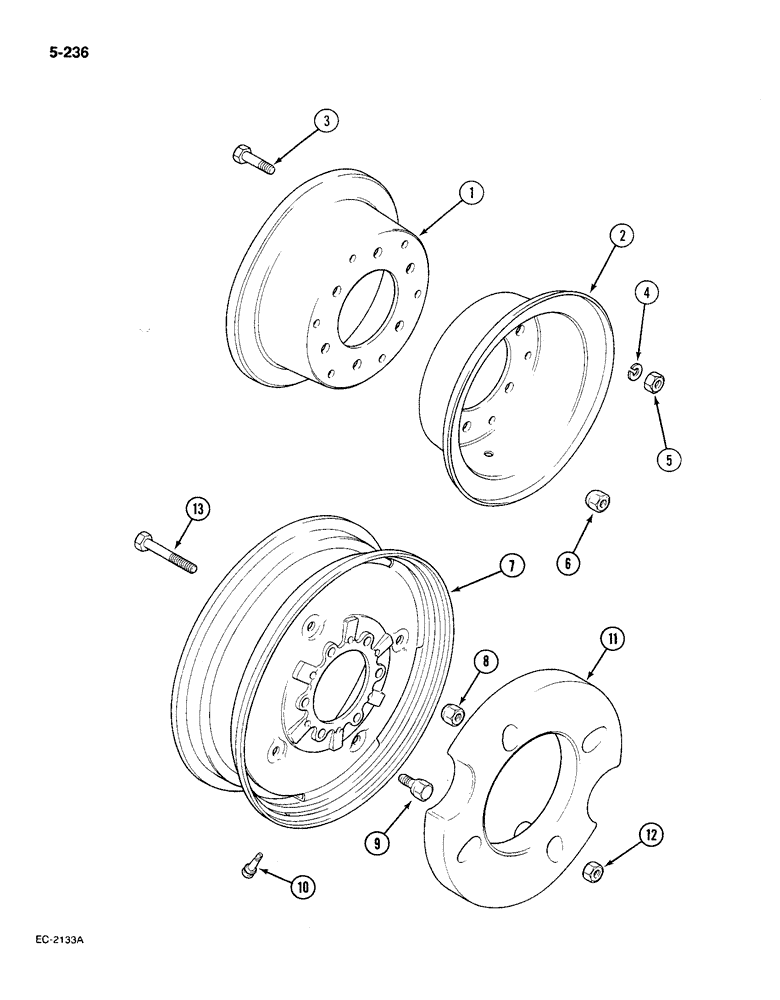

Запчасти Case IH 585 (5-236) - WHEELS AND WHEEL WEIGHTS, FRONT, 2 WHEEL DRIVE, 10 INCH SPLIT WHEEL (05) - STEERING

1

386081R1

WHEEL

front, inner half, 9.00-10 (for 9.00-10 tire)

2шт.

2

386082R1

WHEEL

front, outer half, 9.00-10

2шт.

3

181696

BOLT hex, 1/2 NF x 1 inch, grade 5

12шт.

4

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

5

120371

NUT,1/2"-20, G5

12шт.

6

483879R2

SPECIAL NUT

wheel retaining

12шт.

7

1287905C1

WHEEL

front, complete, 12-10.50 (for 26 x 12.00-12 tire), 12 inch

2шт.

7

364343R92

WHEEL

front, complete, w5.50-16 (for 6.50-16, 9.00-16 and 7.50-16 tires), 16 inch

2шт.

7

400573R1

WHEEL

front, complete, 5.50-18 (for 7.50-18 tire), 18 inch

2шт.

8

483879R2

SPECIAL NUT

wheel retaining, mounting hardware (12, 16, & 18 inch)

12шт.

9

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT wheel mounting (16 inch wheels on cast front axle), hardware (12, 16, & 18 inch)

12шт.

10

387897R91

VALVE STEM

VALVE TR 415, mounting hardware (12, 16, & 18 inch)

1шт.

11

370685R1

WEIGHT

front wheel, 50 lbs. approx.

1шт.

12

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , Wheel weights 1/2"-13, G5

1шт.

13

180181

BOLT,Hex, 1/2" - 13 x 2", Gr 5

hex, 1/2 NC x 2 inch, grade 5, ZND (1st position set), wheel weights

4шт.

13

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

hex, 1/2 NC x 4 inch, grade 5, ZND (2nd position set), wheel weights

4шт.
