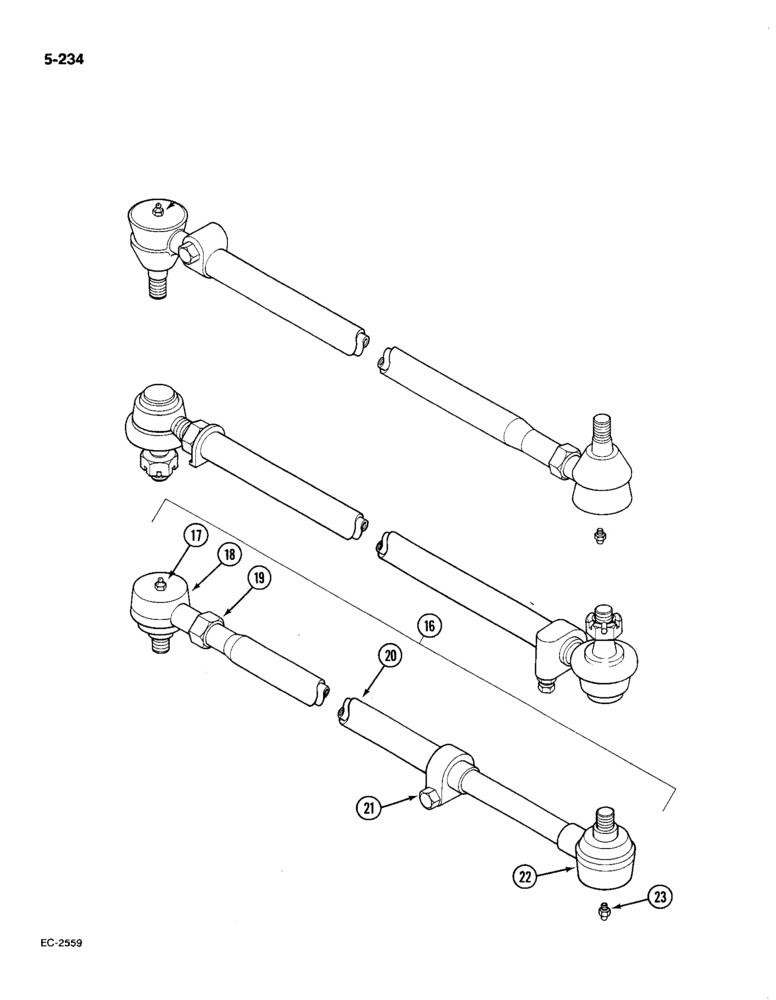

Запчасти Case IH 585 (5-234) - TIE ROD CONTD (05) - STEERING

16

NSS

NOT SOLD SEPARAT

ROD tie, adjustable, Includes: Ref. 17-23

2шт.

17

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

18

527658R91

BALL JOINT

END socket, right

1шт.

18

527658R91GV

TIE-ROD

Value, Tie Rod End

1шт.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

358900R1

SEAL

COVER dust

1шт.

19

390686R1

JAM NUT

hex jam, 11/16 inch NF

1шт.

20

527659R2

TUBE

tie rod

1шт.

21

43747D

CLAMP

tie rod tube

1шт.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

BOLT cap, 7/16 NF x 1-3/4 inch

1шт.

9421096

LOCK WASHER,7/16"

1шт.

271505

BODY

hex jam, 7/16 inch NF, grade 5

1шт.

22

527660R91

END

left

1шт.

22

65082C91

END

left, Serial Range: (Optional-527660R91)

1шт.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

358900R1

SEAL

COVER dust

1шт.

23

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.
