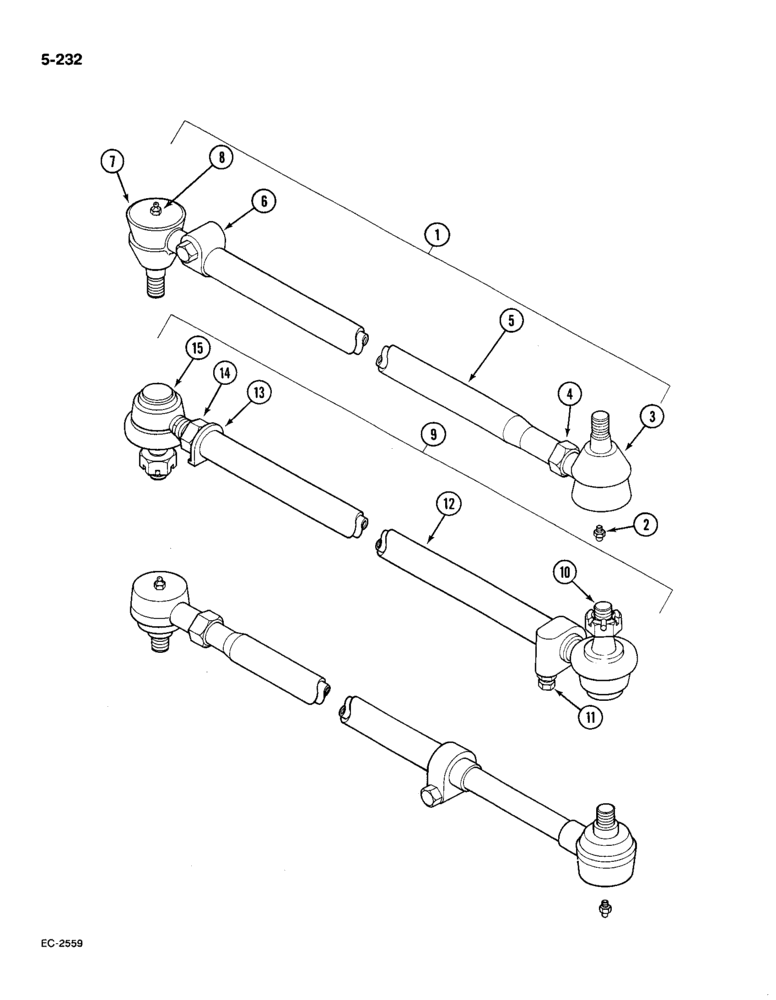

Запчасти Case IH 585 (5-232) - TIE ROD (05) - STEERING

1

1538016C1

STEERING TIE-ROD

ROD adjustable tie, Includes: Ref. 2-8

2шт.

2

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

1шт.

3

527658R91

BALL JOINT

END socket, right

1шт.

3

527658R91GV

TIE-ROD

Value, Tie Rod End

1шт.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

358900R1

SEAL

COVER dust

1шт.

4

390686R1

JAM NUT

hex jam, 11/16 inch NF

1шт.

5

67529C1

TUBE,0.766" ID, 1.005" OD, 16.21" Length

1шт.

9421096

LOCK WASHER,7/16"

1шт.

271505

BODY

hex jam, 7/16 inch NF, grade 5

1шт.

6

43747D

CLAMP

tie rod tube

1шт.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

BOLT cap, 7/16 NF x 1-3/4 inch

1шт.

9421096

LOCK WASHER,7/16"

1шт.

425-117

NUT,7/16"-20, G5

hex jam, 7/16 inch NF, grade 5

1шт.

7

65079C91

END

socket, left

1шт.

102648

SLOTTED NUT,9/16"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

358900R1

SEAL

COVER dust

1шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

9

3116408R1

TUBE,20.75 mm ID, 28 mm OD, 412 mm Length

ROD adjustable tie (Note A)

2шт.

REF#9 - 3116408R1 is just the tube, does not include the tie rod ends.

1шт.

9

1538016C1

STEERING TIE-ROD

ROD adjustable tie (Note C) (Replaces 3121427R93)

2шт.

102648

SLOTTED NUT,9/16"-18, G5

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), , Includes: Ref. 10-15 1/8" x 1"

2шт.

10

3116406R3

BALL JOINT

SOCKET outer (Note A)

1шт.

10

3129380R1

JOINT

ball, dimple end (Note B)

1шт.

10

3116406R3

BALL JOINT

SOCKET outer (Note A and C) (Replaces 1332805C1)

1шт.

10

3125171R2

BALL JOINT

SOCKET outer, Serial Range: (Optional-1332805C1)

1шт.

11

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW set

1шт.

425-147

JAM NUT,Jam, 7/16"-14, G5

lock (Replaces 3116410R1)

1шт.

12

3116408R1

TUBE,20.75 mm ID, 28 mm OD, 412 mm Length

ROD adjustable tie (Note A)

1шт.

12

3129379R1

TUBE,20.7 mm ID, 28 mm OD, 419 mm Length

center (Note B)

1шт.

12

3125172R1

TUBE,20.75 mm ID, 28 mm OD, 382 mm Length

centre (Note C)

1шт.

13

3116411R1

LOCK WASHER

tab

1шт.

14

3116412R1

LOCK NUT

NUT lock

1шт.

15

3116407R3

BALL JOINT

SOCKET inner (Note A and C)

1шт.
