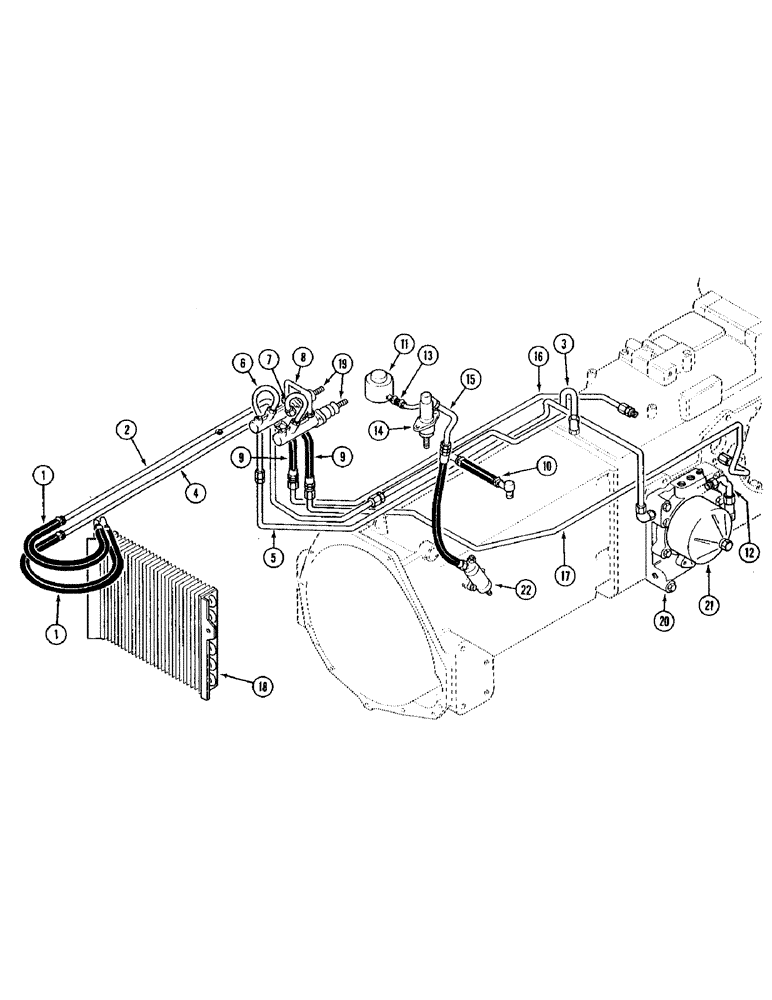

Запчасти Case IH 585 (1-04) - PICTORIAL INDEX, HYDRAULIC AND BRAKE LINES (00) - PICTORIAL INDEX

1

HOSE - oil cooler, inlet/outlet, Page 8-413, 415, 417

1шт.

2

TUBE - oil cooler, return, front, Page 8-413, 415, 417

1шт.

3

TUBE - oil cooler, return, rear, Page 8-413, 415, 417

1шт.

4

TUBE - oil cooler, supply, front, Page 8-413, 415, 417

1шт.

5

TUBE - oil cooler, supply, rear, Page 8-413, 415, 417

1шт.

6

CYLINDER - brake outlet pipe, right, Page 7-395

1шт.

7

CYLINDER - brake outlet pipe, left, Page 7-395

1шт.

8

PIPE - brake, cylinder pipe link, Page 7-395

1шт.

9

HOSE - brake, high pressure, Page 7-395

1шт.

10

HOSE - lubrication, Page 8-417

1шт.

11

RESERVOIR - clutch, complete with cap, Page 6-247

1шт.

12

TUBE - multiple control by-pass, Page 8-423

1шт.

13

PIPE - reservoir to master cylinder, Page 6-247

1шт.

14

CYLINDER - clutch master, Page 6-247, 251

1шт.

15

HOSE - clutch master to slave cylinder, Page 6-247

1шт.

16

PIPE - brake cylinder supply, right, Page 7-395

1шт.

17

TUBE - brake cylinder supply, left, Page 7-395

1шт.

18

OIL COOLER, Page 8-413, 415, 417

1шт.

19

CYLINDER - brake master, Page 7-391

1шт.

20

VALVE - multiple control, Page 8-425

1шт.

21

FILTER - hydraulic, oil, Page 8-411

1шт.

22

CYLINDER - clutch slave, Page 6-249, 251

1шт.
