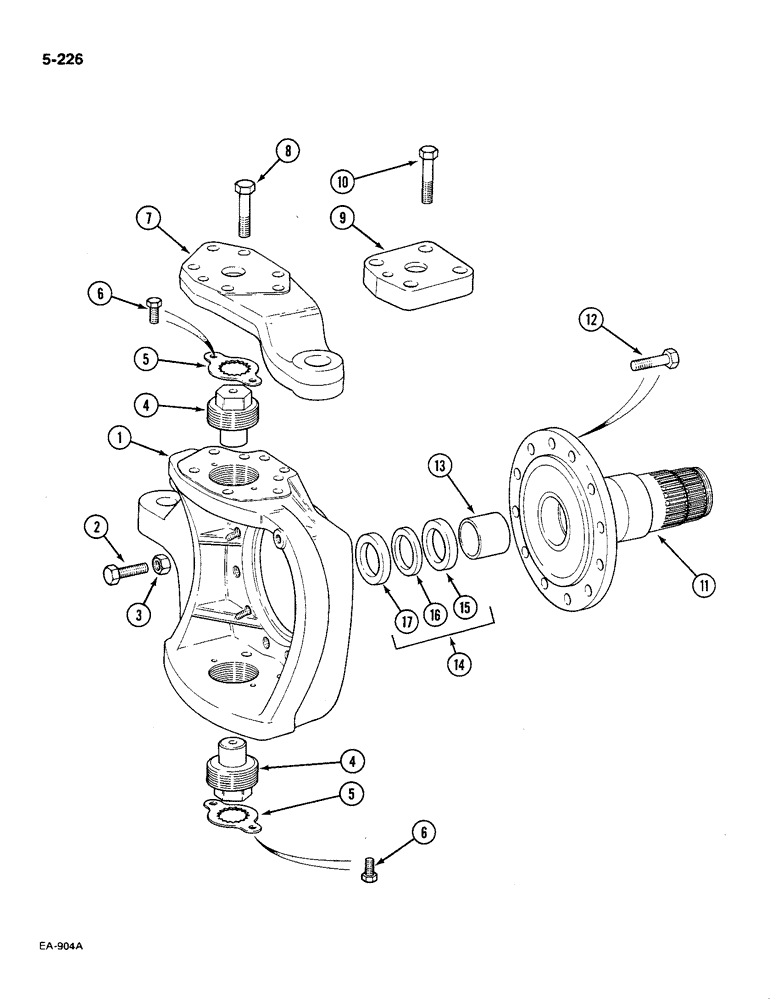

Запчасти Case IH 585 (5-226) - STEERING KNUCKLE, 4 WHEEL DRIVE, PRIOR TO P.I.N. 18001 (05) - STEERING

NSS

NOT SOLD SEPARAT

KNUCKLE steering, Includes: Ref.1-17

2шт.

1

3230954R1

HOUSING

steering knuckle, left

1шт.

1

3230955R1

HOUSING

steering knuckle, right

1шт.

2

3134225R1

BOLT

BOLT hex, M12 x 40 mm

4шт.

3

934652R1

THIN NUT,Thin, M12 x 1.5, Cl 05

hex, M12

4шт.

4

3216588R1

LARGE PIN

PIN king, axle

4шт.

5

3216589R1

PLATE, LOCKING

PLATE locking

4шт.

6

930107R1

BOLT,Hex, M6 x 1 x 10mm, Cl 8.8, Full Thd

hex, M6 x 10 mm, class 8.8

8шт.

7

1502271C1

STRAP

ARM steering (left steering knuckle)

1шт.

8

3229114R1

LOCK BOLT

BOLT hex, M14 x 50 mm

6шт.

9

3230953R1

COVER

king pin (right steering knuckle)

1шт.

10

280264

BOLT,Hex, M14 x 50mm, Cl 8.8

Hex, M14 x 50, 8.8

4шт.

11

1502272C1

HUB CARRIER

CARRIER hub

2шт.

12

934654R1

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

hex, M12 x 25 mm, class 10.9

24шт.

13

3216585R1

BUSHING,28mm ID x 32mm OD x 30mm L

2шт.

14

3405555R1

SEAL

oil, complete, Includes: Ref. 15-17

2шт.

15

NSS

NOT SOLD SEPARAT

SEAL felt

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL oil

1шт.

17

NSS

NOT SOLD SEPARAT

HOLDER

1шт.
