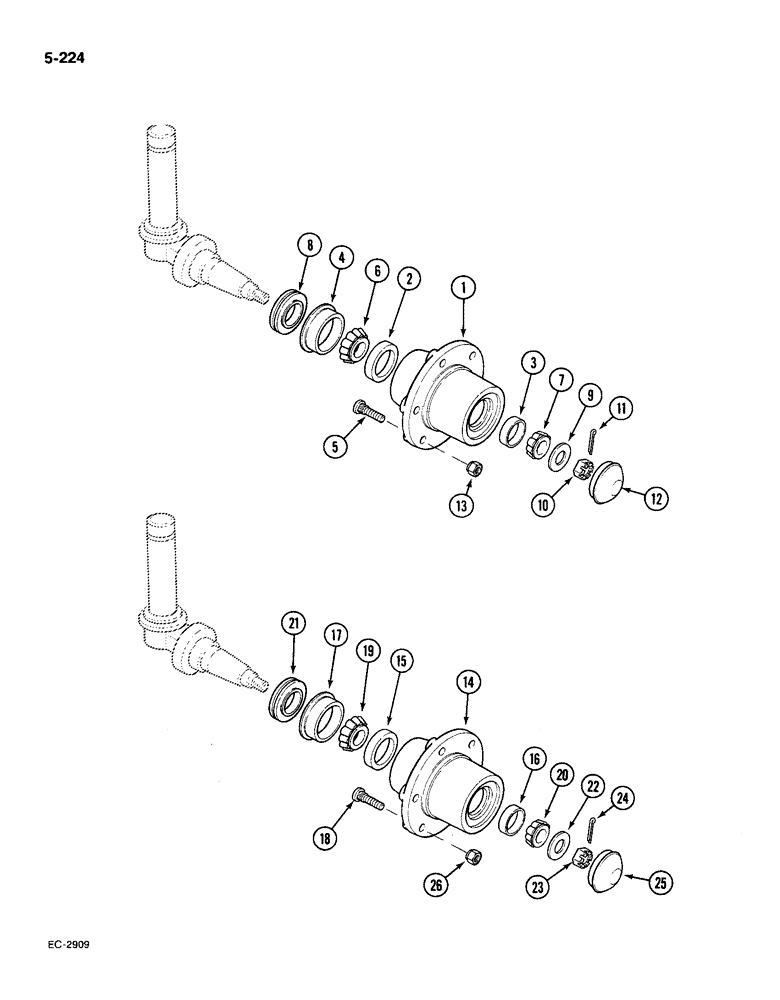

Запчасти Case IH 585 (5-224) - WHEEL HUB AND CAP, ADJUSTABLE FRONT AXLE, SWEPT BACK AXLE (05) - STEERING

1

67527C92

HUB

front wheel, Includes: Ref. 2-5

2шт.

2

400988C1

BEARING, CUP

Inner

1шт.

2

399934C1

BEARING CUP,73.43mm OD x 15.75mm W

inner, Serial Range: (Optional-400988C1)

1шт.

3

536054R1

BEARING CUP,60mm OD x 11.94mm W

outer

1шт.

3

538491R1

BEARING, CUP

Outer, Serial Range: (Optional-5360541R1)

1шт.

4

67328C1

SEALING RING

RING wear

1шт.

5

528803R1

BOLT,1/2" - 20 x 1.75"

- Wheel mounting

6шт.

Ref #5 & #18 - 81317C1- 3/4" fine thread Wheel Bolts

1шт.

6

400987C91

BEARING ASSY,1.7817" ID x 2.892" OD x 0.77, 0.62"

BEARING cone, inner

2шт.

6

399933C91

ROLLER BEARING,45.24mm ID x 19.81mm W

inner (Optional to 400987C91)

2шт.

7

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

BEARING cone,outer

2шт.

7

538492R91

BEARING CONE

outer, Serial Range: (Optional-536053R91)

2шт.

8

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

dust, front wheel

2шт.

9

105759C1

WASHER

retaining, outer bearing

2шт.

10

1332751C1

SLOTTED NUT

hex slotted, 3/4 inch NF

2шт.

11

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

12

612884R1

HUB CAP

CAP hub, front wheel

2шт.

13

483879R2

SPECIAL NUT

wheel retaining

12шт.

14

406294R21

HUB ASSY.

HUB front wheel, swept back axle, Includes: Ref. 15-18

2шт.

15

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner, Swept back axle

1шт.

15

371898R1

BEARING, CUP

Inner, Optional to 618024R1, Swept back axle

1шт.

16

371883R1

BEARING CUP

Outer, Swept back axle

1шт.

16

371908R1

BEARING CUP

Outer (Optional to 371883R1), Swept back axle

1шт.

17

406295R2

RING

wear, swept back axle

1шт.

18

528803R1

BOLT,1/2" - 20 x 1.75"

- Wheel mounting, Swept back axle

6шт.

Ref #5 & #18 - 81317C1- 3/4" fine thread Wheel Bolts

1шт.

19

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

inner, planet gear, swept back axle

2шт.

19

371897R91

BEARING ASSY,1.315" ID x 2.5625" OD x 0.72"

(Optional to 618023R91), swept back axle

2шт.

20

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

Outer, Swept back axle

2шт.

20

371907R91

ROLLER BEARING,0.8437" ID x 1.9687" OD x 0.72"

cone, outer (Optional to 371882R91), swept back axle

2шт.

21

405835R91

SEAL

dust, front wheel, swept back axle

2шт.

21

530104R91

SEAL

SEAL dust (Optional to 405835R91), swept back axle

2шт.

22

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

hardened, swept back axle

2шт.

23

427639

SLOTTED NUT,3/4"-16, G5

NUT hex, slotted, 3/4 inch NF, grade 5, swept back axle

2шт.

24

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), , Swept back axle 5/32" x 1 3/8"

2шт.

25

612884R1

HUB CAP

CAP hub, front wheel, swept back axle

2шт.

26

483879R2

SPECIAL NUT

wheel retaining, swept back axle

12шт.
