(5-222) - AXLE, FRONT, 4 WHEEL DRIVE, P.I.N. 18001 AND AFTER

Запчасти Case IH 585 (5-222) - AXLE, FRONT, 4 WHEEL DRIVE, P.I.N. 18001 AND AFTER (05) - STEERING

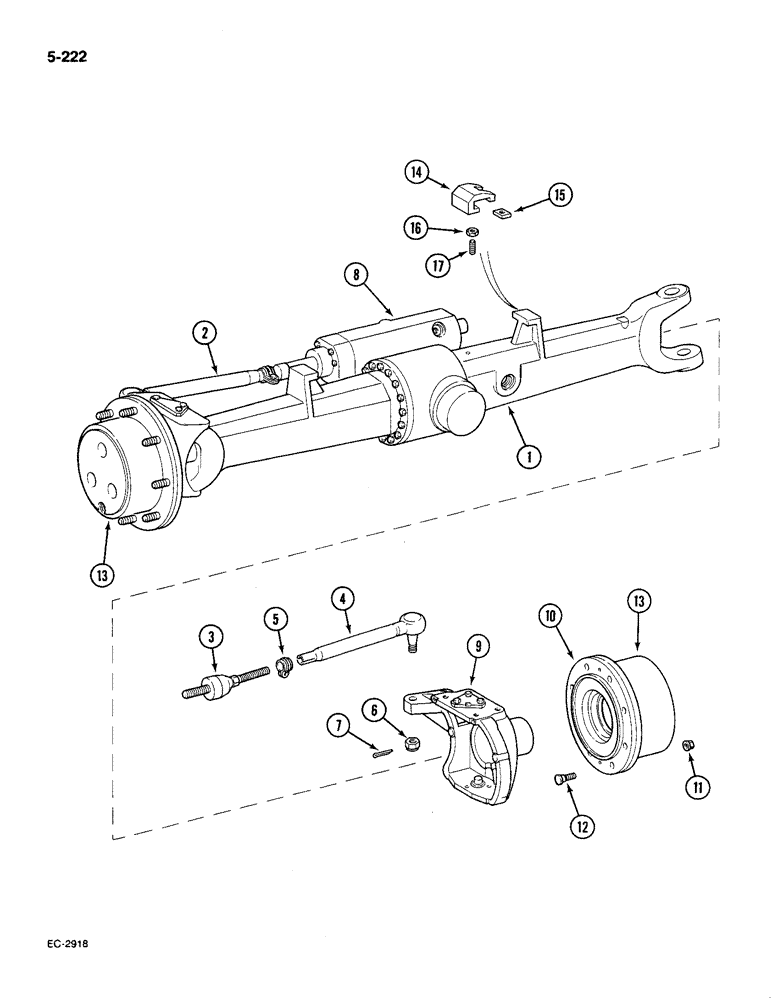

Схема запчастей Case IH 585 - (5-222) - AXLE, FRONT, 4 WHEEL DRIVE, P.I.N. 18001 AND AFTER (05) - STEERING
12
16
10
4
8
14
2
9
1
11
17
5
3
15
13
6
13
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

AXLE front, APL-325 with self-locking differential, Includes: Ref. 1-13

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING axle assembly (see Figure 6-328), Includes: Ref. 2-7

1шт.

2

81289C1

DRAG LINK

ROD tie, Includes: Ref. 3-7

2шт.

3

1968463C1

BALL JOINT

JOINT axial

1шт.

4

1968464C1

TIE-ROD

BALL joint

1шт.

5

1968467C1

HOSE CLAMP

CLAMP tie rod

1шт.

6

1968465C1

NUT

hex slotted

1шт.

7

1968466C1

PIN, SPLIT (COTTER)

PIN cotter

1шт.

8

NSS

NOT SOLD SEPARAT

CYLINDER steering (see Figure 5-198)

1шт.

9

NSS

NOT SOLD SEPARAT

KNUCKLE, STEERING (see Figure 5-330)

2шт.

10

81308C1

HUB

wheel

2шт.

11

3230877R1

WHEEL NUT,Wheel, Flg, M18 x 1.5

hex, M18, wheel mounting

16шт.

12

81317C1

STUD

wheel mounting

16шт.

13

NSS

NOT SOLD SEPARAT

DRIVE planetary (see Figure 6-336)

2шт.

14

99775C1

STOP

axle oscillation

2шт.

15

99779C1

SQUARE NUT

square, 1/4 inch NC

2шт.

16

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

17

102436

SET SCREW,Sq Hd, 1/4"-20 x 1 1/2"

SCREW square head, 1/4 NC x 1-1/4 inch

2шт.
