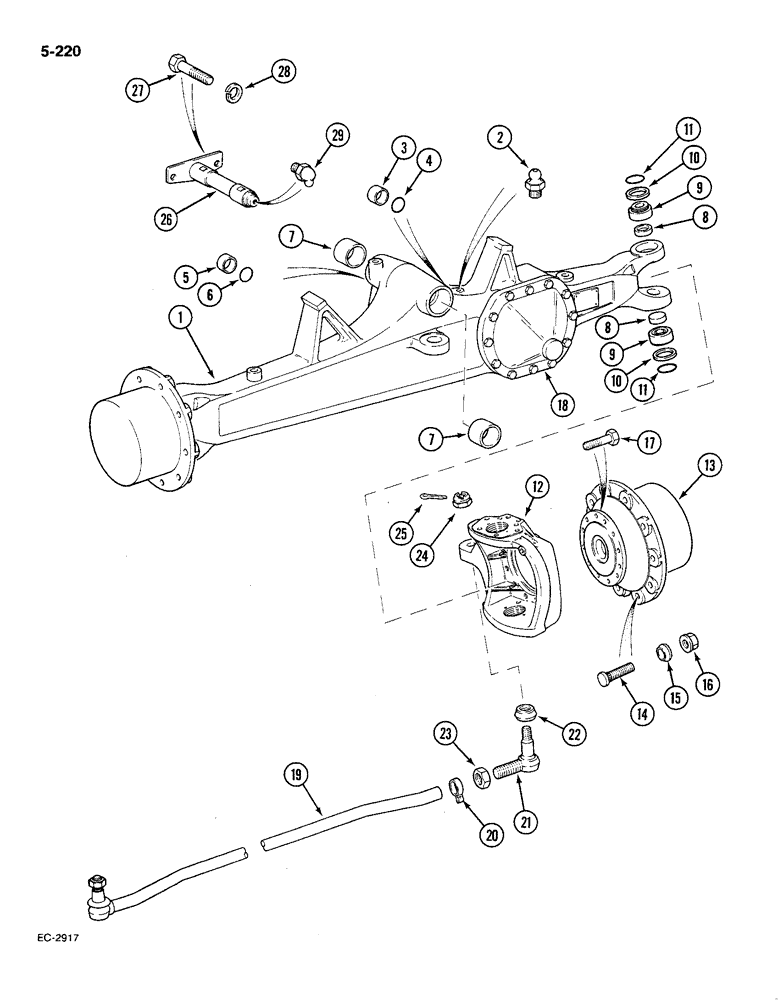

Запчасти Case IH 585 (5-220) - AXLE, FRONT, 4 WHEEL DRIVE, PRIOR TO P.I.N. 18001 (05) - STEERING
№
Артикул
Название
Примечание
Количество
1500229C92
4WD AXLE ASSY
AXLE front, complete, self locking differential with single U-joint drive shaft, Includes: Ref. 1-25
1шт.
82240C91
AXLE
front, complete, self locking differential with double U-joint drive shaft, Includes: Ref. 1-25
1шт.
1
1502262C1
HOUSING
axle
1шт.
2
898138H1
BREATHER
VALVE breather
1шт.
3
933799R1
PLUG,Hex Soc, M24 x 1.5
1шт.
4
933709R1
PACKING RING
RING sealing, 24 x 29 mm
1шт.
5
3216584R1
PLUG
filler, M18
1шт.
6
933222R1
SEALING WASHER,M18 x 22 x 1.5
1шт.
7
1502263C1
BUSHING
2шт.
8
3147245R1
PLUG
COVER
4шт.
9
3147241R1
BEARING, CUP
4шт.
9
3147242R91
ROLLER BEARING
BEARING cone
4шт.
10
3147243R1
CUP WASHER
4шт.
11
3147244R1
O-RING
4шт.
12
KNUCKLE steering, complete assembly (see Figure 5-226)
2шт.
13
HUB wheel, with drive assembly (see Figure 6-332)
2шт.
14
3230876R1
BOLT,Wheel, Serr, M18 x 1.5 x 61 mm
wheel
16шт.
15
712824R1
LOCK WASHER,M18.5, Spring
WASHER lock
16шт.
16
933800R1
NUT
wheel mounting
16шт.
17
934654R1
BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd
hex, M12 x 25 mm, class 10.9
24шт.
18
DIFFERENTIAL complete (see Figure 6-340)
1шт.
19
1502268C1
TIE-ROD
ROD tie, Includes: Ref. 20
1шт.
Ref #19 - Would be the Male end
1шт.
Ref#19 is Tie Rod(1502268c1) with no Ball Joint Ends.Order item 21(1502269c1) for the Ends.
1шт.
20
NSS
NOT SOLD SEPARAT
CLIP tie rod
1шт.
21
1502269C1
BALL JOINT
JOINT ball, Includes: Ref. 22
2шт.
Ref #21 - Would be the Female end
1шт.
22
NSS
NOT SOLD SEPARAT
SEAL ball joint
2шт.
23
1502270C1
NUT
lock
2шт.
24
934683R1
NUT,M18 x 1.5
NUT castellated, M18
2шт.
25
932956R1
COTTER PIN,M4 x 40
PIN cotter, 4 x 40 mm
2шт.
26
539128R1
SHAFT ASSY.
SHAFT front axle pivot
1шт.
27
179883
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
hex, 1/2 NC x 1-1/4 inch, grade 5
2шт.
28
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
29
273352
SCREW
FITTING grease, 90 degree, 1/8 inch PTF
1шт.
Выбрано товаров: 35
