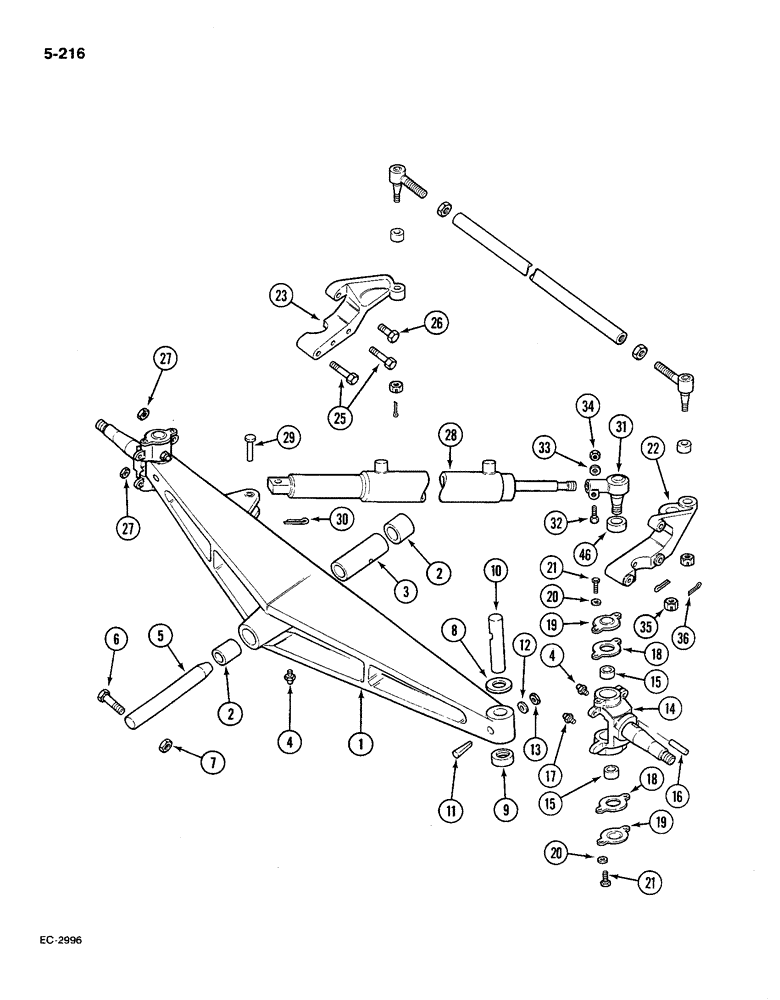

Запчасти Case IH 585 (5-216) - AXLE, FRONT, SWEPT BACK CAST (05) - STEERING

1

378502R22

AXLE

front, complete, Includes: Ref. 2 and 3

1шт.

2

378813R1

BUSHING

2шт.

3

530975R2

SPACER

1шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

3шт.

5

85999C1

PIN

front axle pivot

1шт.

6

180193

BOLT,Hex, 1/2" - 13 x 3 3/4", Gr 5

hex, 1/2 NC x 3-3/4 inch

1шт.

7

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

8

61554R1

WASHER

SHIM steering knuckle, light

1шт.

8

70586R1

SHIM

steering knuckle, medium

1шт.

9

21076D

BEARING ASSY,31.9mm ID x 55.56mm OD x 16.13mm W

BEARING thrust, steering knuckle

2шт.

10

70594R91

KIT

PIN king, pivot

2шт.

11

62798H

KEY

king pin

2шт.

12

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

13

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

2шт.

14

112775R11

STEERING KNUCKLE

KNUCKLE steering

2шт.

14

1213434C91

KNUCKLE

steering (Optional to 112775R11), Includes: Ref. 15

2шт.

15

70589R1

BRONZE BUSHING,31.37mm ID x 34.66mm OD x 40.21mm L

BUSHING steering knuckle

2шт.

16

107317

GROOVED PIN,3/16" x 1/2", Type A

Pin, Grooved, 3/16" x 1/2", Type A

2шт.

17

219-7

LUBE NIPPLE,1/8" - 27 NPTF

FITTING short grease, 1/8 PTF

2шт.

18

70591R1

GASKET

steering knuckle cap

4шт.

19

70590R1

CAP

steering knuckle

4шт.

20

116120

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

21

51124V

SCREW

steering knuckle cap

8шт.

22

378399R1

ARM

steering knuckle, left

1шт.

23

378400R1

ARM

steering knuckle, right

1шт.

25

414-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

hex, 5/8 NF x 2-3/4 inch

4шт.

26

414-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

hex, 5/8 NF x 2-1/4 inch

2шт.

27

425-1110

NUT,5/8"-18, G5

hex, 5/8 inch NF

6шт.

28

3118502R93

STEERING CYLINDER

CYLINDER power steering (see Figure 5-192)

1шт.

29

518505R1

HEADED PIN,3/4" x 3"

PIN headed, 3/4 x 3 inch

1шт.

30

432-1628

COTTER PIN,1/4" x 1 3/4"

Pin, Split (Cotter), 1/4" x 1 3/4"

1шт.

31

378817R91

BALL JOINT

END power steering cylinder

1шт.

32

181646

BOLT,Hex, 3/8" - 24 x 1 3/4", Gr 5

hex, 3/8 NF x 1-3/4 inch

1шт.

33

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

34

120369

NUT,3/8"-24, G5

1шт.

35

425-1914

SLOTTED NUT,7/8"-14, G5, Thk

hex slotted, 7/8 inch NC

1шт.

36

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.
