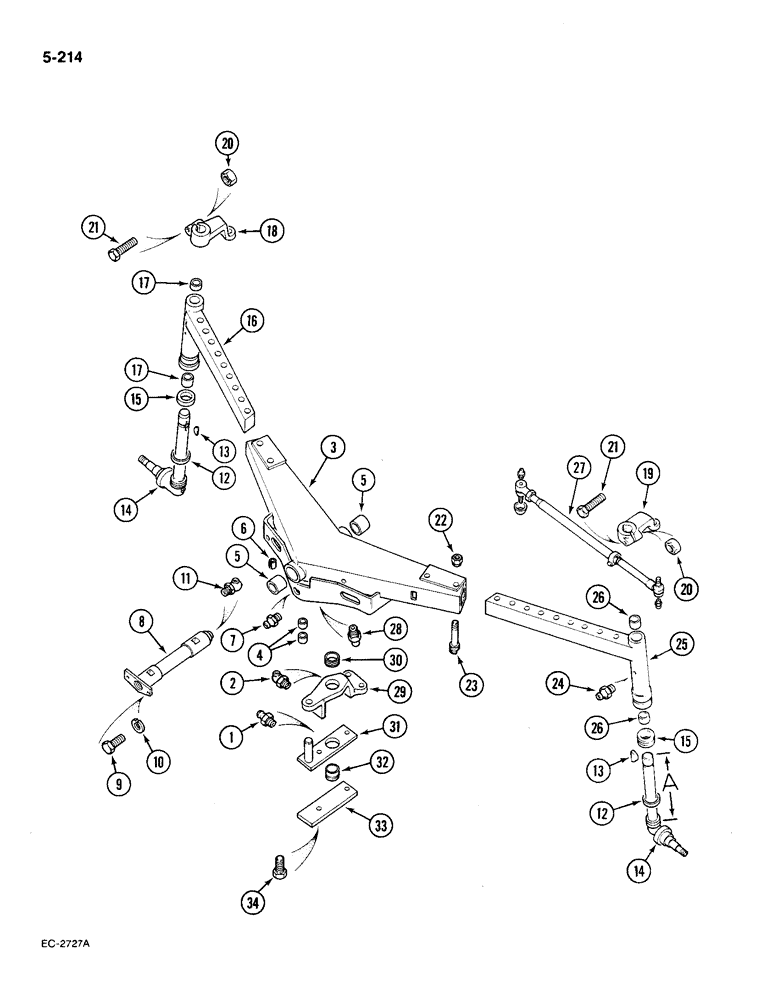

Запчасти Case IH 585 (5-214) - AXLE, FRONT, SWEPT BACK ADJUSTABLE, TRACTOR WITHOUT CAB WITH HIGH CLEARANCE BOLSTER (05) - STEERING

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING grease, straight drive type, 3/16 inch

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING grease, 65 degree drive type, 3/16 inch

1шт.

3

539158R93

AXLE

front, centre section, Includes: Ref. 4, 5 and 6

1шт.

4

376160R1

BUSHING,25.4mm ID x 28.7mm OD x 19.3mm L

cylinder mounting bracket

2шт.

4

405574R1

BUSHING

cylinder mounting bracket, Serial Range: (Optional-376160R1)

1шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

6

3125304R1

BUSHING

spring steel

1шт.

7

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING grease, 45 degree drive type, 1/4 inch

1шт.

8

539128R1

SHAFT ASSY.

SHAFT front axle, pivot

1шт.

9

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch, grade 5

2шт.

10

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

11

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 90 degree, 1/8 PTF

1шт.

12

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Steering knuckle pivot

2шт.

13

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

14

405840R12

KNUCKLE

steering, low spindle (Dimension 'A' = 12.17 inch)

2шт.

14

1332982C1

STEERING KNUCKLE

KNUCKLE steering (orchard version) (Dimension A = 8.33 inch)

2шт.

15

405831R91

BEARING

thrust, steering knuckle

2шт.

15

527295R91

THRUST BEARING,44.45mm ID x 68.4mm OD x 17.6mm W

BEARING, Serial Range: (Optional-405831R91)

2шт.

15

369131R91

THRUST BEARING

, Serial Range: (Optional-405831R91)

2шт.

16

66702C91

EXTENSION

front axle, right

1шт.

16

1332984C1

EXTENSION

front axle, right (orchard version), Includes: Ref. 17

1шт.

17

376099R1

BUSHING

front axle extension

2шт.

18

405837R1

ARM

steering knuckle, right

1шт.

19

405836R1

ARM

steering knuckle, left

1шт.

20

102637

NUT,1/2"-13, G5

2шт.

21

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

2шт.

22

405576R1

NUT

front axle

4шт.

23

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

24

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING grease, drive type, 1/4 inch

2шт.

25

66701C91

EXTENSION

front axle, left, Includes: Ref. 26

1шт.

REF 25 1332983C1 IS FRONT AXLE LEFT (ORCHARD VERSION)

1шт.

26

367099R1

BUSHING

front axle extension

2шт.

27

NSS

NOT SOLD SEPARAT

ROD tie (see Figure 5-232)

1шт.

28

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING grease, straight drive type, 1/4 inch

1шт.

29

405585R11

ARM

power steering centre, Includes: Ref. 30

1шт.

30

379748R1

BUSHING

1шт.

31

405580R11

BAR ASSY.

BAR power steering cylinder, Includes: Ref. 32

1шт.

32

379748R1

BUSHING

1шт.

33

67976C1

PLATE, LOCKING

STRIP steering centre arm lock bolt

1шт.

34

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.
