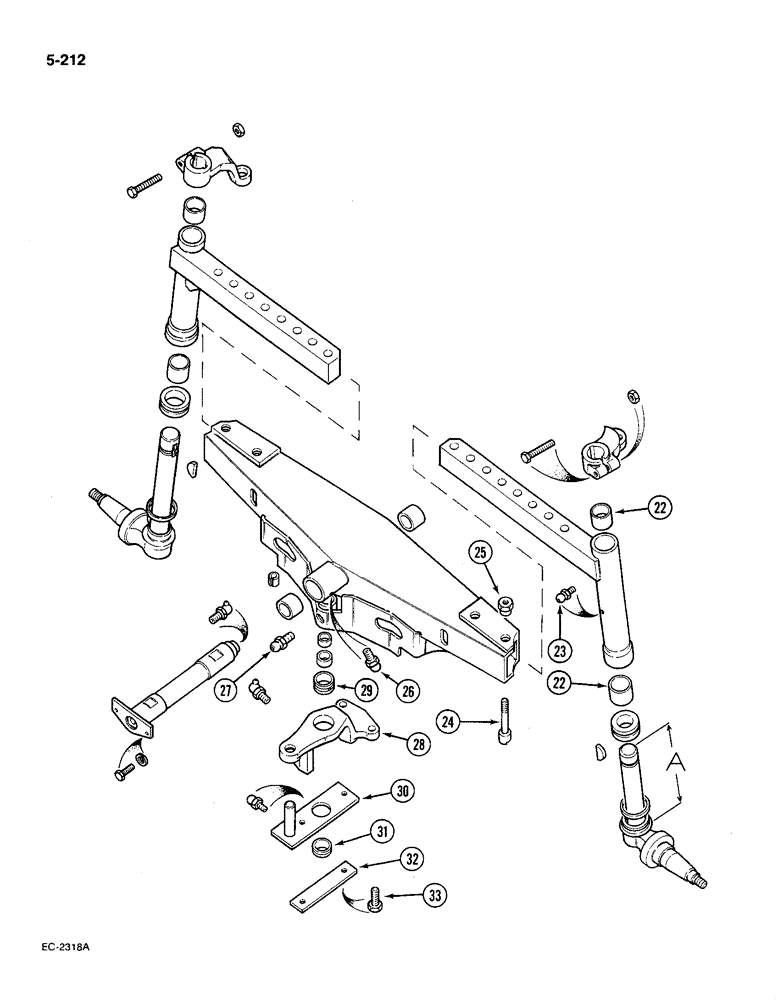

Запчасти Case IH 585 (5-212) - AXLE, FRONT, STRAIGHT ADJUSTABLE, 52 TO 77 INCH TRACK, CONTD (05) - STEERING

22

376099R1

BUSHING

front axle extension

2шт.

23

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING grease, drive type, 1/4 inch

2шт.

24

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

25

405576R1

NUT

front axle

4шт.

26

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING grease, drive type, 1/4 inch

1шт.

27

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING grease, 45 degree drive type, 1/4 inch

1шт.

28

67499C91

ARM ASSY.

ARM centre, power steering, Includes: Ref. 29

1шт.

29

379748R1

BUSHING

1шт.

30

405580R1

BAR power steering, Includes: Ref. 31

1шт.

31

379748R1

BUSHING

1шт.

32

67976C1

PLATE, LOCKING

STRIP lock, steering centre arm bolt

1шт.

33

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.
