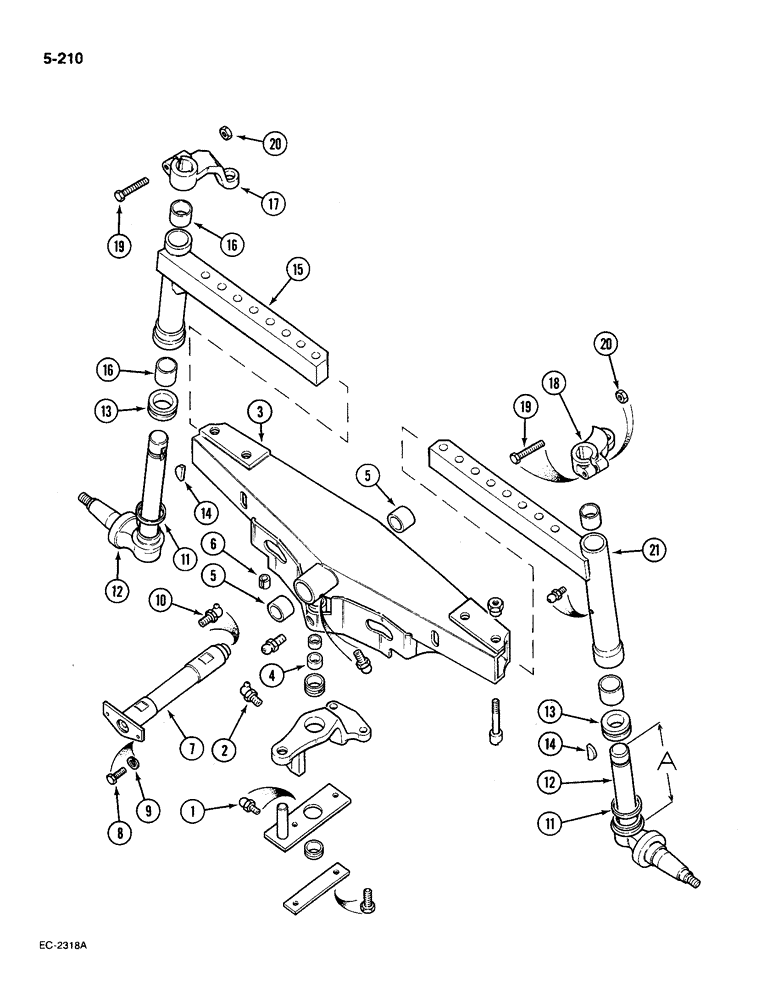

Запчасти Case IH 585 (5-210) - AXLE, FRONT, STRAIGHT ADJUSTABLE, 52 TO 77 INCH TRACK (05) - STEERING

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING grease, straight drive type, 3/16 inch

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING grease, 65 degree drive type, 3/16 inch

1шт.

3

69881C92

FRONT AXLE

AXLE front, centre section, Includes: Ref. 4, 5 and 6

1шт.

4

405574R1

BUSHING

cylinder mounting bracket

2шт.

4

376160R1

BUSHING,25.4mm ID x 28.7mm OD x 19.3mm L

, Serial Range: (Optional-40574R1)

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

6

3125304R1

BUSHING

spring steel

1шт.

7

539128R1

SHAFT ASSY.

SHAFT front axle pivot

1шт.

8

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch, grade 5

2шт.

9

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 90 degree, 1/8 inch PTF

1шт.

11

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Steering knuckle

2шт.

12

405840R12

KNUCKLE

steering, low spindle, tractors with standard bolster (Dimension A = 12.17 inch)

2шт.

12

527292R92

STEERING KNUCKLE

KNUCKLE steering, high spindle, tractors with high clearance bolster (Dimension A = 15.35 inch)

2шт.

12

534288R92

KNUCKLE

steering, low low spindle, low profile tractors (Dimension A = 9.52 inch), Includes: Ref. 13 and 14

2шт.

13

405831R91

BEARING

thrust, steering knuckle

2шт.

13

527295R1

BEARING, Serial Range: (Optional-405831R91)

2шт.

13

369131R91

THRUST BEARING

, Serial Range: (Optional-405831R91)

2шт.

14

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

15

67533C91

EXTENSION ASSY.

EXTENSION front axle, right, low spindle, tractors with standard bolster

1шт.

15

67502C91

EXTENSION ASSY.

EXTENSION front axle, right, high spindle, tractors with high clearance bolster

1шт.

15

3116476R91

EXTENSION ASSY.

EXTENSION front axle, right, low low spindle, low profile tractors, Includes: Ref. 16

1шт.

16

376099R1

BUSHING

front axle extension

2шт.

17

67525C1

ARM

steering knuckle, right

1шт.

18

67524C1

ARM

steering knuckle, left

1шт.

19

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

2шт.

20

102637

NUT,1/2"-13, G5

2шт.

21

67532C91

EXTENSION ASSY.

EXTENSION front axle, left, low spindle, tractors with standard bolster

1шт.

21

67501C91

EXTENSION ASSY.

EXTENSION front axle, left, high spindle, tractors with high clearance bolster

1шт.

21

3116475R91

EXTENSION ASSY.

EXTENSION front axle, left, low low spindle, low profile tractors, Includes: Ref. 22 in next Figure

1шт.
