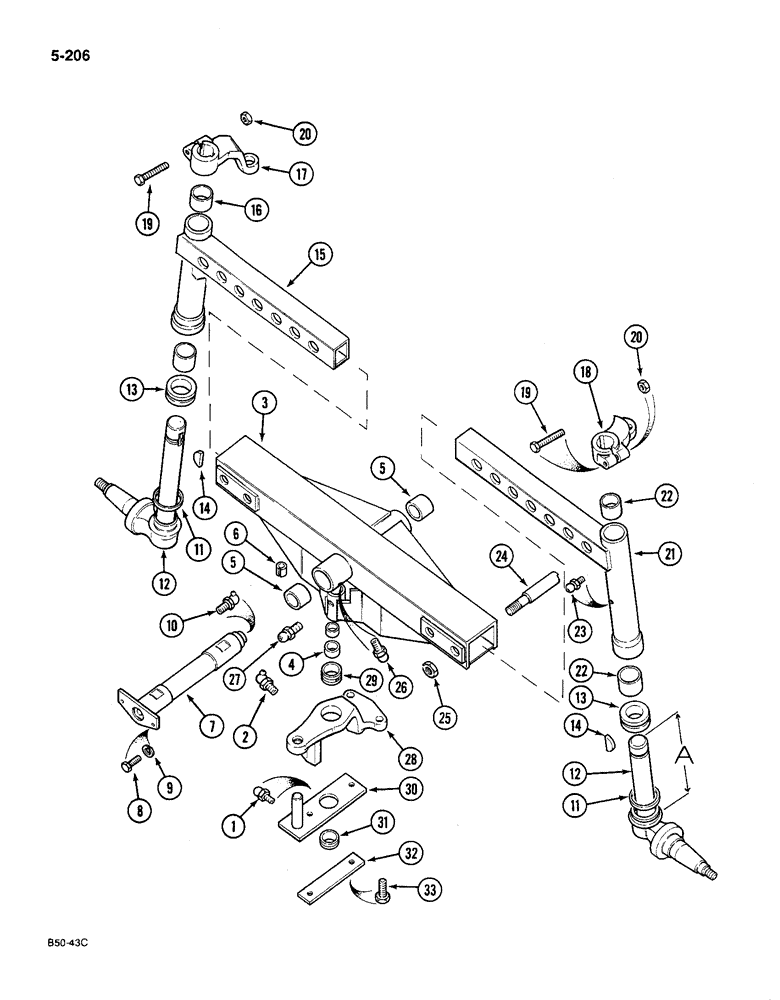

Запчасти Case IH 585 (5-206) - AXLE, FRONT, HEAVY DUTY, 52 TO 77 INCH TRACK (05) - STEERING

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING grease, straight drive type, 3/16 inch

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING grease, 65 degree drive type, 3/16 inch

1шт.

3

3121242R92

CENTER AXLE

AXLE front centre section, Includes: Ref. 4, 5 and 6

1шт.

4

405574R1

BUSHING

cylinder mounting bracket

2шт.

4

376160R1

BUSHING,25.4mm ID x 28.7mm OD x 19.3mm L

, Serial Range: (Optional-405574R1)

2шт.

Ref #4 - 1536870C1 New Bushing

1шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

6

3125304R1

BUSHING

spring steel

1шт.

7

3121254R1

SHAFT ASSY.

SHAFT front axle pivot

1шт.

8

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch, grade 5

2шт.

9

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

10

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING grease, 90 degree, 1/8 PTF

1шт.

11

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Steering knuckle pivot

2шт.

12

3121261R91

KNUCKLE,RH

steering, high spindle (Dimension A = 11.22 inch)

2шт.

12

3121270R91

KNUCKLE

steering, low spindle (Dimension A = 8.32 inch)

2шт.

Ref # 12 (P/N 3121261R91) - keyway is illustrated wrong. It is actually on the inside of the shaft, not the outside.

1шт.

13

405831R91

BEARING

thrust, steering knuckle

2шт.

14

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

15

3121257R91

EXTENSION ASSY.

EXTENSION front axle, right, high spindle

1шт.

15

3121268R91

EXTENSION ASSY.

EXTENSION front axle, right, low spindle

1шт.

15

3121267R91

EXTENSION ASSY.

EXTENSION front axle, left, low spindle, Includes: Ref. 16

1шт.

16

376099R1

BUSHING

front axle extension

2шт.

17

3121264R1

ARM

steering knuckle, right

1шт.

18

3121263R1

ARM

steering knuckle, left

1шт.

19

25526R1

NUT,1/2"-13, G8

hex, 1/2 inch NC

2шт.

20

454993

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

hex, 1/2 NC x 3-1/8 inch

2шт.

21

3121256R91

EXTENSION ASSY.

EXTENSION front axle, left, high spindle, Includes: Ref. 22

1шт.

22

376099R1

BUSHING

front axle extension

2шт.

23

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING grease, drive type, 1/4 inch

2шт.

24

3121252R1

BOLT,3/4" - 16 x 1 27/32"

shoulder, axle extension

4шт.

25

3121253R1

SPECIAL NUT

front axle

4шт.

26

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING grease, straight drive type, 1/4 inch

1шт.

27

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING grease, 45 degree drive type, 1/4 inch

2шт.

28

67499C91

ARM ASSY.

ARM centre, power steering, Includes: Ref. 29

1шт.

29

379748R1

BUSHING

1шт.

30

405580R11

BAR ASSY.

BAR power steering cylinder, Includes: Ref. 31

1шт.

31

379748R1

BUSHING

1шт.

32

67976C1

PLATE, LOCKING

STRIP steering centre arm lock bolt

1шт.

33

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.
