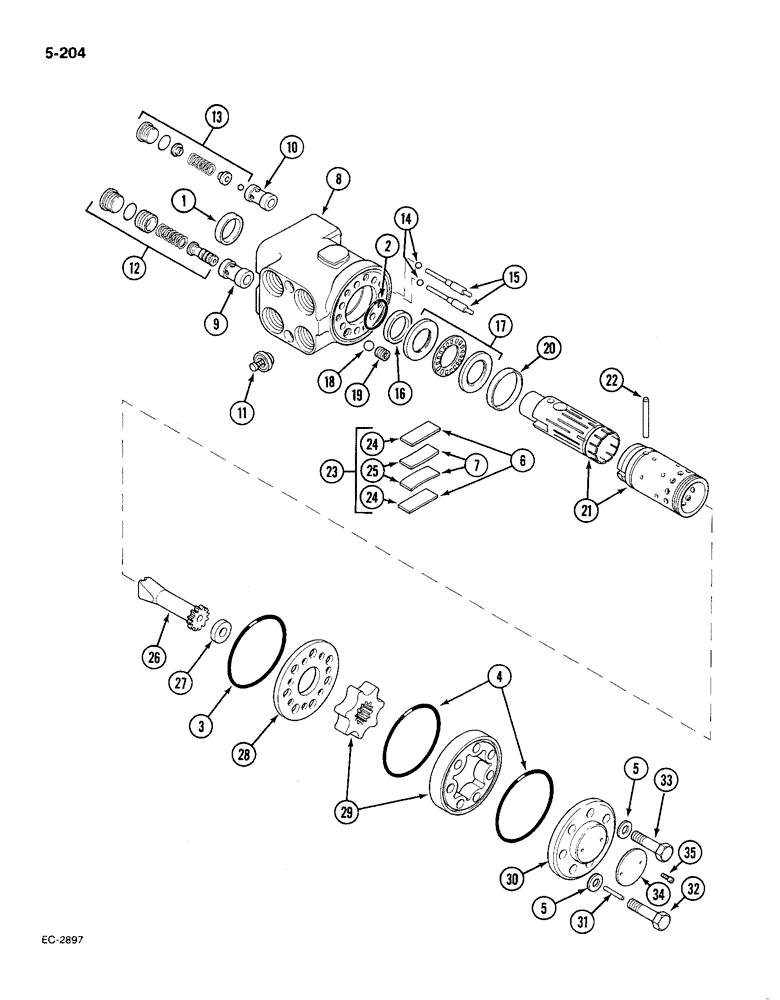

Запчасти Case IH 585 (5-204) - STEERING VALVE, P.I.N. 18001 AND AFTER, DANFOSS OSPC 100 (05) - STEERING
№
Артикул
Название
Примечание
Количество
88107C91
PUMP
VALVE integral, power steering, Includes: Ref. 1-35 and P/N 1500443C91
1шт.
1500443C91
SEAL KIT
PACKAGE service, seal and spring, Includes: Ref.1-7
1шт.
1
NSS
NOT SOLD SEPARAT
SEAL dust
1шт.
2
NSS
NOT SOLD SEPARAT
O-RING
1шт.
3
NSS
NOT SOLD SEPARAT
O-RING
1шт.
4
NSS
NOT SOLD SEPARAT
O-RING
2шт.
5
NSS
NOT SOLD SEPARAT
WASHER
7шт.
6
NSS
NOT SOLD SEPARAT
SPRING flat, weak (blue)
2шт.
7
NSS
NOT SOLD SEPARAT
SPRING curved, weak (blue)
2шт.
8
NSS
NOT SOLD SEPARAT
HOUSING power steering valve, Includes: Ref. 9-11
1шт.
9
NSS
NOT SOLD SEPARAT
SEAT relief valve
1шт.
10
NSS
NOT SOLD SEPARAT
SEAT dual shock valve
2шт.
11
NSS
NOT SOLD SEPARAT
VALVE check
1шт.
12
1971688C1
VALVE
relief, without seat
1шт.
13
NSS
NOT SOLD SEPARAT
VALVE dual shock, without seat
2шт.
14
211-204
BALL
steel, 3/16 inch
2шт.
15
1971684C1
BUSHING
with pin
2шт.
16
NSS
NOT SOLD SEPARAT
RING
1шт.
17
1272808C1
NEEDLE BEARING
needle bearing
1шт.
18
1272794C1
BALL
BAL steel, 8.5 mm diameter
1шт.
19
1272793C1
BUSHING
threaded
1шт.
20
1272795C1
O-RING,39.6mm ID x 41mm OD x 4.5mm
seal
1шт.
21
NSS
NOT SOLD SEPARAT
SPOOL complete with sleeve
1шт.
22
1272796C1
CROSS PIN
1шт.
23
1272809C1
PACKAGE
KIT spring, standard (grey), Includes: Ref. 24 and 25
1шт.
24
NSS
NOT SOLD SEPARAT
SPRING flat, standard (grey)
2шт.
25
NSS
NOT SOLD SEPARAT
SPRING curved, standard (grey)
4шт.
26
1272797C1
SHAFT
cardan
1шт.
27
3216707R1
SPACER
1шт.
28
1272803C1
PLATE
distributor
1шт.
28
1346022C1
PLATE
new, Start Year: 05-DEC-95
1шт.
29
NSS
NOT SOLD SEPARAT
GEAR rotor, complete
1шт.
30
1500444C1
CAP
COVER end
1шт.
30
3112273R1
COVER
end, new, Start Year: 05-DEC-95
1шт.
31
3112271R1
PIN, ROLL
PIN roll
1шт.
32
1272791C1
SCREW
hex, with bore
1шт.
33
814-8040
BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8
6шт.
34
NSS
NOT SOLD SEPARAT
PLATE name
1шт.
35
NSS
NOT SOLD SEPARAT
SCREW drive
2шт.
Выбрано товаров: 39
