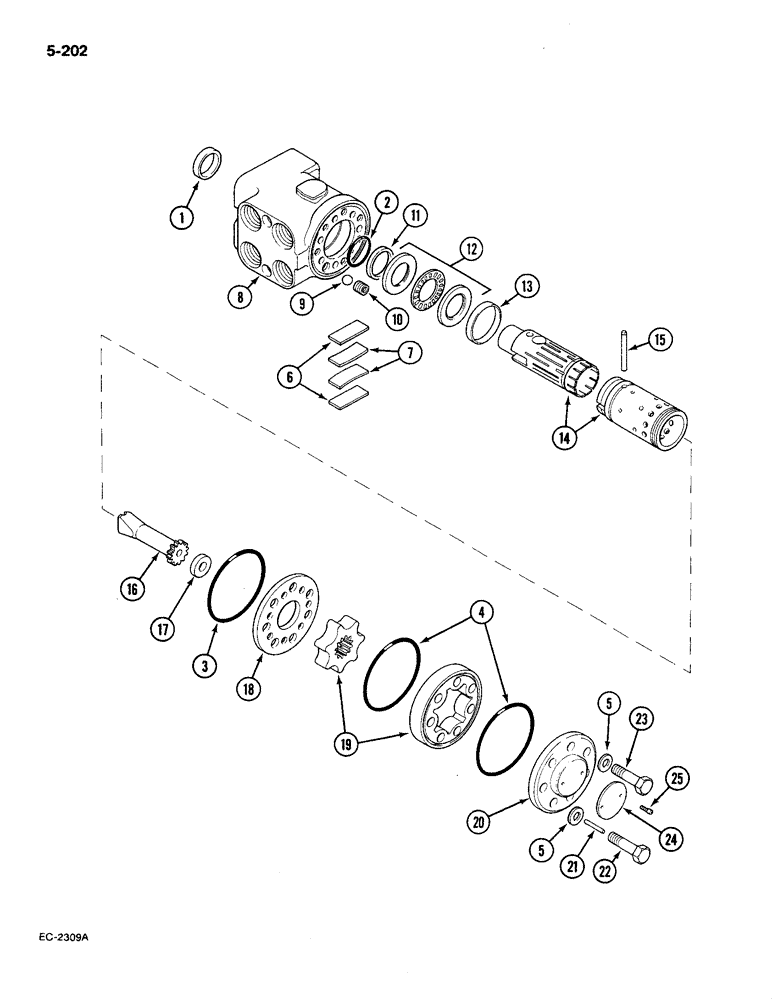

Запчасти Case IH 585 (5-202) - STEERING VALVE, PRIOR TO P.I.N. 18001, DANFOSS OSPB 80 OR (05) - STEERING

67698C93

VALVE

integral power steering, Includes: Ref. 1-25 and P/N 1500443C91

1шт.

1500443C91

SEAL KIT

PACKAGE service, seal and spring, Includes: Ref. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL dust

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

2шт.

5

NSS

NOT SOLD SEPARAT

WASHER

7шт.

6

NSS

NOT SOLD SEPARAT

SPRING flat, weak (blue)

2шт.

7

NSS

NOT SOLD SEPARAT

SPRING curved, weak (blue)

2шт.

8

NSS

NOT SOLD SEPARAT

HOUSING power steering valve

1шт.

9

3112270R1

BALL

steel

1шт.

10

3112273R1

COVER

BUSHING threaded

1шт.

11

NSS

NOT SOLD SEPARAT

RING kin

1шт.

12

3234338R91

BEARING SET

complete

1шт.

13

3112264R1

RING

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL complete with sleeve

1шт.

15

3112269R1

PIN

cross

1шт.

16

538915R1

DRIVE SHAFT

SHAFT drive

1шт.

17

538916R1

SPACER

drive shaft

1шт.

18

3112276R1

PLATE

valve

1шт.

19

538918R1

ROTOR ASSY.

GEAR rotor, complete

1шт.

20

1500444C1

CAP

COVER end

1шт.

21

3112271R1

PIN, ROLL

PIN roll

1шт.

22

3146907R1

BOLT,M8 x 1 x 35mm, Drilled

hex, with bore

1шт.

23

3146908R1

BOLT,M8 x 1 x 35mm

hex

6шт.

24

NSS

NOT SOLD SEPARAT

PLATE rating

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW drive

2шт.
