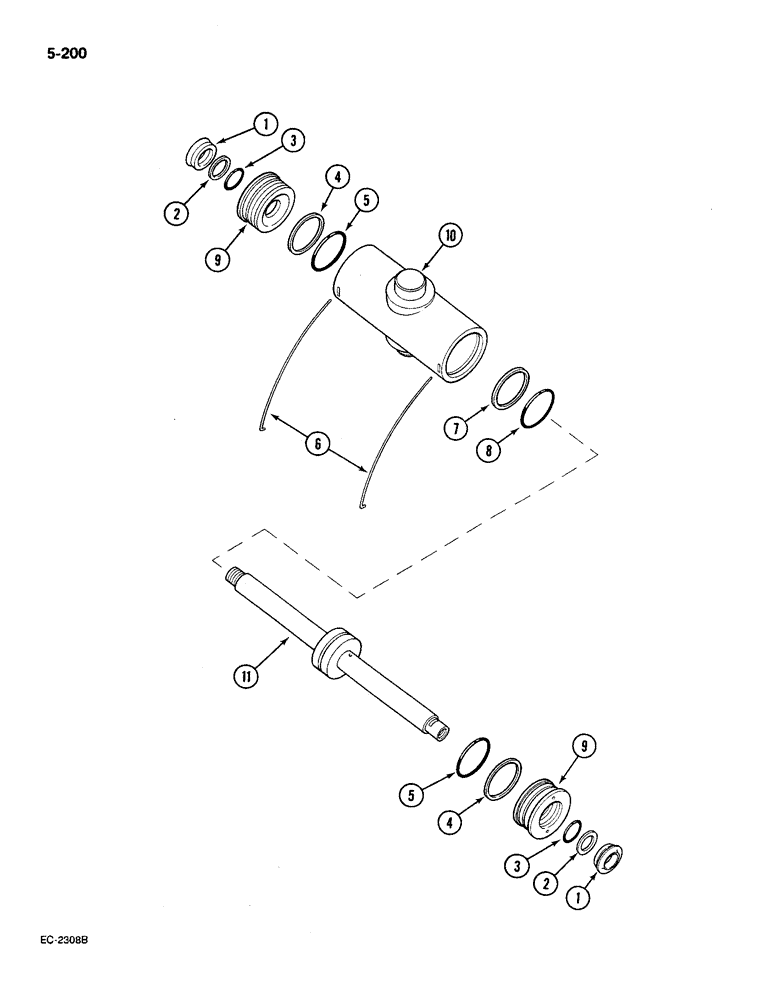

Запчасти Case IH 585 (5-200) - STEERING CYLINDER, ADJUSTABLE FRONT AXLE (05) - STEERING

549667R92

STEERING CYLINDER

CYLINDER power steering, Includes: Ref. 1-11 and P/N 55355C91

1шт.

84336125R

REMAN-HYD CYLINDER

585 (1/86-12/90), Reman for New P/N 549667R92

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

55355C91

GASKET KIT

KIT service, O-ring and seal, Includes: Ref. 1-8

1шт.

1

531183R1

WIPER SEAL,24.23mm ID x 38.91mm OD x 8.73mm Thk

WIPER piston rod

2шт.

2

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

piston rod back-up

2шт.

3

380794R1

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

1 x 1-1/4 inch, class 6

2шт.

4

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

back-up, rear head

2шт.

5

293726R1

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

2-1/4 x 2-1/2 inch, class 5

2шт.

6

385133R1

RETAINING WIRE

RING retaining

2шт.

7

37995R1

RING piston seal

1шт.

8

27034R1

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

2-1/16 x 2-1/4 inch, class 6

1шт.

9

400591R1

HEAD

rear

2шт.

10

400587R1

HYD CYL SLEEVE

BODY hydraulic cylinder

1шт.

84336125R

REMAN-HYD CYLINDER

585 (1/86-12/90), Reman for New P/N 400587R1

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

11

549668R2

PISTON ROD

ROD piston

1шт.
