(5-196) - STEERING CYLINDER, 4 WHEEL DRIVE PRIOR TO P.I.N. 18001

Запчасти Case IH 585 (5-196) - STEERING CYLINDER, 4 WHEEL DRIVE PRIOR TO P.I.N. 18001 (05) - STEERING

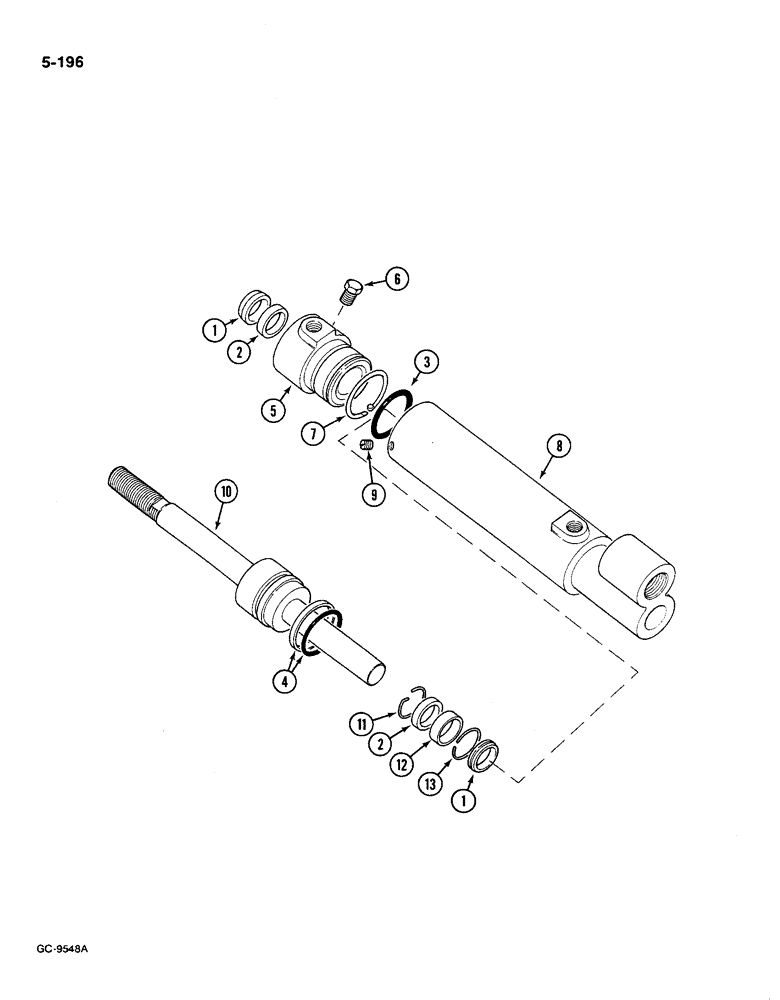

Схема запчастей Case IH 585 - (5-196) - STEERING CYLINDER, 4 WHEEL DRIVE PRIOR TO P.I.N. 18001 (05) - STEERING
4
13
2
3
6
11
1
5
12
7
9
2
8
10
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

742967C91

STEERING CYLINDER

CYLINDER power steering, Includes: Ref. 1-13 and P/N 742970C91

1шт.

742970C91

GASKET KIT

KIT service, O-ring and seal, Includes: Ref. 1-4

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL

2шт.

2

NSS

NOT SOLD SEPARAT

SEAL

2шт.

3

NSS

NOT SOLD SEPARAT

O-RING

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL

1шт.

5

3229430R1

END

guide top

1шт.

6

FOR444613

PLUG

automotive hex head, 1/8 inch NPTF

1шт.

7

3147624R1

WIRE

WIRE retaining

1шт.

8

NSS

NOT SOLD SEPARAT

CYLINDER tube

1шт.

9

934724R1

SET SCREW,Hex Skt, M5 x 6mm, Dog Pt

1шт.

10

742969C91

ROD ASSY.

ROD piston

1шт.

11

3217744R1

RING, SNAP

RING retaining

1шт.

12

3147619R1

THRUST RING

BUSHING

1шт.

13

3147620R1

RING, SNAP

RING retainer

1шт.
