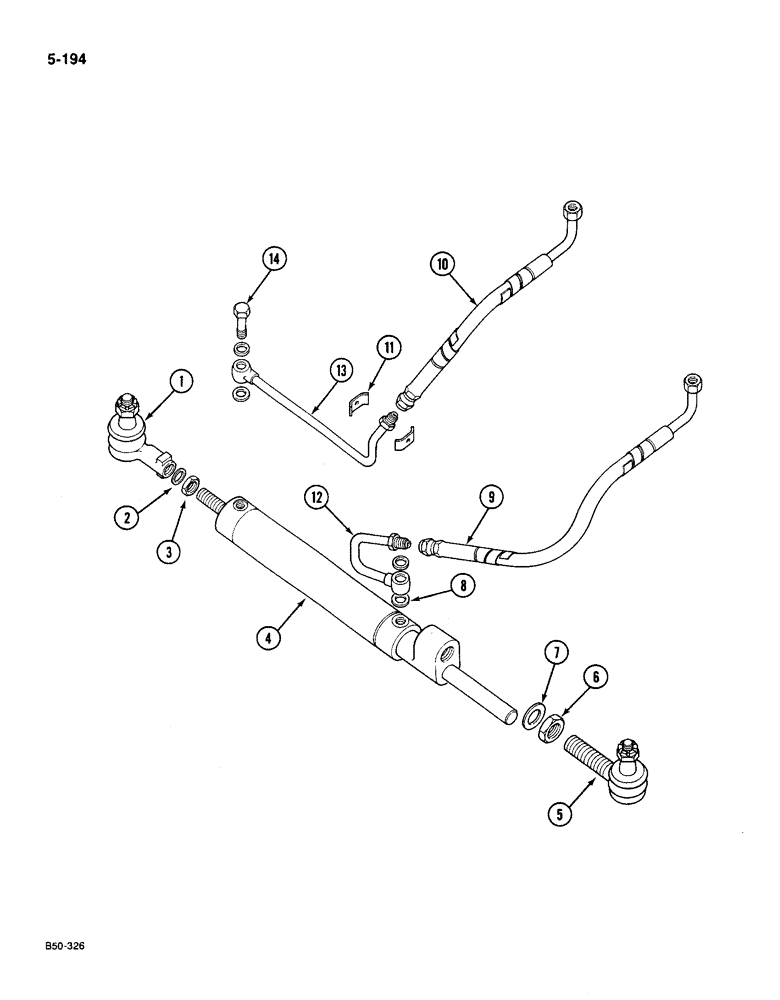

Запчасти Case IH 585 (5-194) - POWER STEERING, 4 WHEEL DRIVE, ZF, PRIOR TO P.I.N. 18001 (05) - STEERING

1

742968C91

BALL JOINT

JOINT ball, Includes: P/N 934165R1

1шт.

934165R1

NUT,M20 x 1.5

NUT hex, 17h M20 x 1.5

1шт.

2

934846R1

LOCK WASHER,Serr, M25

WASHER

1шт.

3

934262R1

THIN NUT,Thin, M24 x 1.5

hex, jam, M24

1шт.

4

742967C91

STEERING CYLINDER

CYLINDER power steering, see Figure 5-196, Includes: P/N 742970C91

1шт.

742970C91

GASKET KIT

KIT service, O-ring and seal

1шт.

4

1282141C91

CYLINDER

power steering (Optional to 742967C91), Includes: P/N 1282147C1

1шт.

1282147C1

PACKAGE

KIT service, O-ring and seal

1шт.

5

3141529R91

BALL JOINT

JOINT ball

1шт.

6

934070R1

THIN NUT,Thin, M30 x 1.5

hex jam, M30

1шт.

7

934072R1

LOCK WASHER,Serr, M31

WASHER lock

1шт.

8

933155R1

SEALING RING,M16 x 20 x 1.5

4шт.

9

3129985R1

HOSE ASSY.

HOSE hydraulic steering cylinder, right

1шт.

10

3129984R1

HOSE ASSY.

HOSE hydraulic steering cylinder, left

1шт.

11

3129983R1

CLAMP

tube

2шт.

86977786

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8

hex, M6 x 25 mm, class 8.8

1шт.

933833R1

LOCK WASHER,M6

WASHER lock, M6

1шт.

30281R1

NUT,M6, Cl 10

- hex, M6, class 10

1шт.

12

3129982R1

TUBE ASSY.

TUBE steering cylinder, right

1шт.

13

3129981R1

TUBE ASSY.

TUBE steering cylinder, left

1шт.

14

930241R1

BANJO BOLT,M16 x 1.5 x 36mm

SCREW hollow

2шт.
