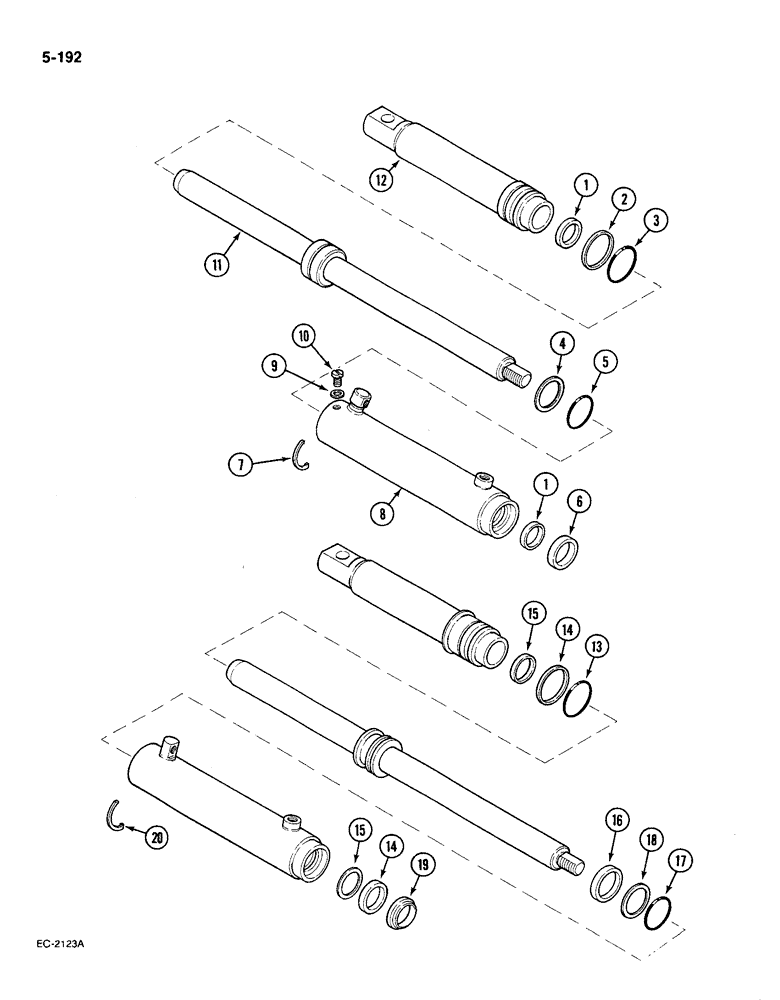

Запчасти Case IH 585 (5-192) - STEERING CYLINDER, SWEPT BACK CAST FRONT AXLE (05) - STEERING

3118502R93

STEERING CYLINDER

CYLINDER power steering, Includes: Ref. 1-12 and P/N 536314R92

1шт.

536314R92

SERVICE KIT

KIT service, O-ring and seal, Includes: Ref. 1-7

1шт.

1

119214C1

SEAL

rod

2шт.

2

378588R1

BACK-UP RING,48.31mm ID x 54.36mm OD x 1.14mm Thk

WASHER back up

1шт.

3

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

4

378586R1

RING,51.1mm ID x 54.66mm OD x 3.56mm Thk

sealing

1шт.

5

290987R1

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1-3/4 x 2 inch, class 5

1шт.

6

536308R1

SEAL rod wiper

1шт.

7

140600C1

RETAINING WIRE

WIRE retaining

1шт.

8

3118503R2

HYD TUBE,244.86, 38.10 mm Length

TUBE steering cylinder

1шт.

9

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

10

436729

SCREW,Slotted Pan Hd, #10-24 x 5/16"

10-24 x 5/16 zn slt pan hd. mach

1шт.

11

536309R1

PISTON ROD

ROD power steering

1шт.

12

536301R2

HEAD

power steering

1шт.

1954043C1

CYLINDER

power steering (Optional to 3118502R93) Includes: Ref. 13-20 and P/N 1954053C1

1шт.

1954053C1

SEAL KIT

service, cylinder seals, Includes: Ref. 13-19

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

SEAL

2шт.

15

NSS

NOT SOLD SEPARAT

RING guide

2шт.

16

NSS

NOT SOLD SEPARAT

RING guide

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL

1шт.

19

NSS

NOT SOLD SEPARAT

RING wiper

1шт.

20

1954141C1

ELECTRICAL WIRE

WIRE lock

1шт.
