(5-188) - STEERING PIPES REAR, 2 WHEEL DRIVE, TRACTOR WITH CAB AND WITHOUT 2 SPEED POWER SHIFT

Запчасти Case IH 585 (5-188) - STEERING PIPES REAR, 2 WHEEL DRIVE, TRACTOR WITH CAB AND WITHOUT 2 SPEED POWER SHIFT (05) - STEERING

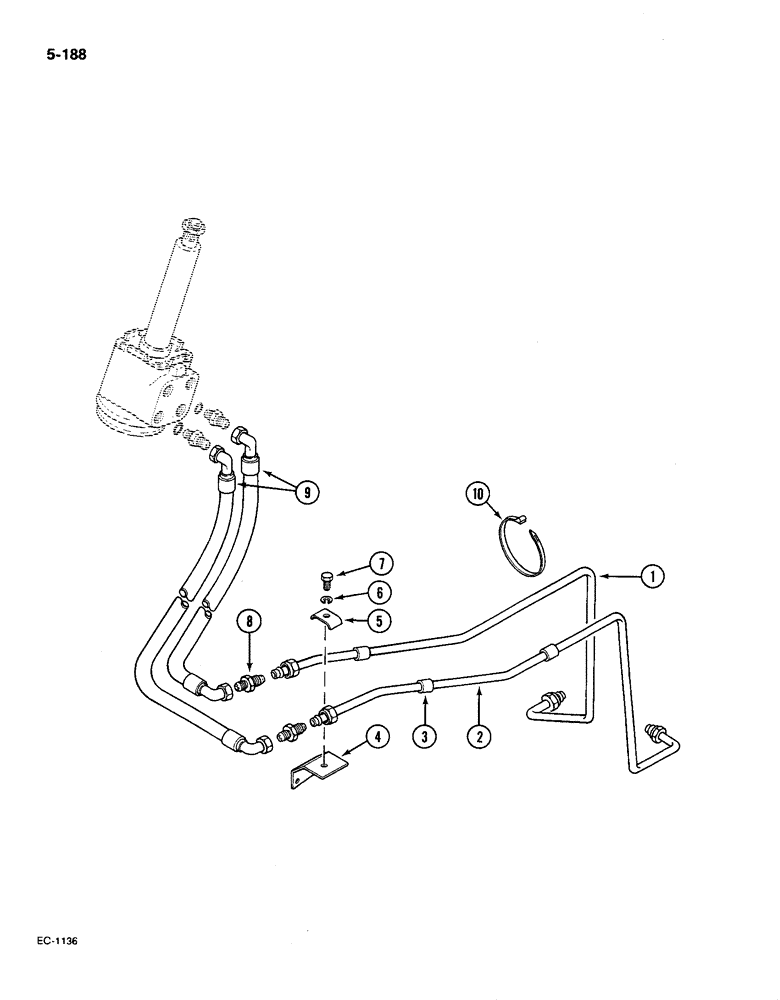

Схема запчастей Case IH 585 - (5-188) - STEERING PIPES REAR, 2 WHEEL DRIVE, TRACTOR WITH CAB AND WITHOUT 2 SPEED POWER SHIFT (05) - STEERING
10
5
3
8
2
1
6
9
4
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

99802C1

PIPE

TUBE power steering, return

1шт.

2

99776C1

PIPE

TUBE power steering, pressure

1шт.

3

673171C1

RUBBER BUSHING

SLEEVE rubber

2шт.

4

1500300C1

SUPPORT

BRACKET power steering pipes, rear

1шт.

5

1500302C1

CLAMP

1шт.

6

933833R1

LOCK WASHER,M6

WASHER lock, M6

1шт.

7

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, M6 x 20 mm, grade 8.8

1шт.

8

1287927C1

FITTING

UNION tube

2шт.

9

1502284C1

HOSE

hydraulic, pressure and return

2шт.

10

306132C1

CABLE TIE,14.5" L

STRAP cable, 4.0 max bundle

1шт.
