(5-186) - STEERING PIPES REAR, 2 WHEEL DRIVE, TRACTORS WITH CAB AND 2 SPEED POWER SHIFT

Запчасти Case IH 585 (5-186) - STEERING PIPES REAR, 2 WHEEL DRIVE, TRACTORS WITH CAB AND 2 SPEED POWER SHIFT (05) - STEERING

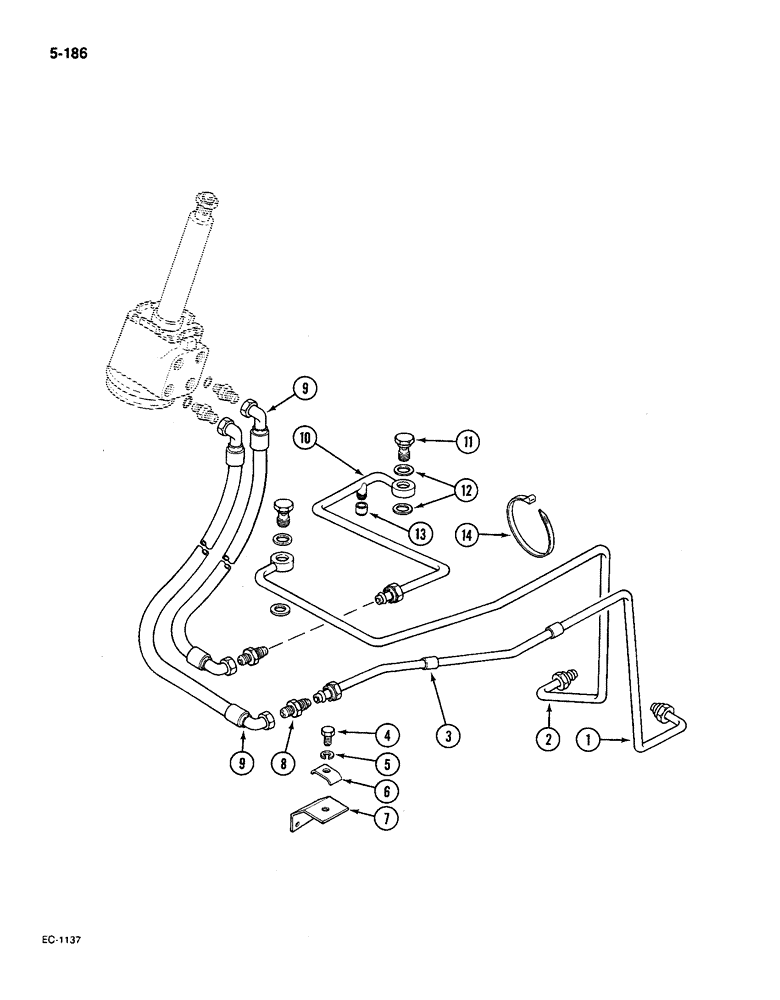

Схема запчастей Case IH 585 - (5-186) - STEERING PIPES REAR, 2 WHEEL DRIVE, TRACTORS WITH CAB AND 2 SPEED POWER SHIFT (05) - STEERING
7
1
2
12
6
9
13
10
5
4
9
8
3
14
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

99776C1

PIPE

TUBE power steering, pressure

1шт.

2

1287929C3

PIPE,65 mm Length

TUBE outlet

1шт.

3

673171C1

RUBBER BUSHING

SLEEVE rubber

2шт.

4

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, M6 x 20 mm, grade 8.8

1шт.

5

933833R1

LOCK WASHER,M6

WASHER lock, M6

1шт.

6

1500302C1

CLAMP

1шт.

7

1500300C1

SUPPORT

BRACKET power steering pipes, rear

1шт.

8

1287927C1

FITTING

UNION tube

1шт.

9

1502284C1

HOSE

hydraulic, pressure and return

2шт.

10

1287926C3

PIPE

TUBE 2 speed power shift, inlet

1шт.

11

1500102C1

SCREW

hollow

2шт.

12

1328294C1

SEAL

bonded, inlet and outlet

4шт.

13

9403371

CAP,37 Degree, 9/16"-18

3/8 inch hydraulic flared tube

1шт.

14

306132C1

CABLE TIE,14.5" L

STRAP cable, 4.0 max bundle

1шт.
