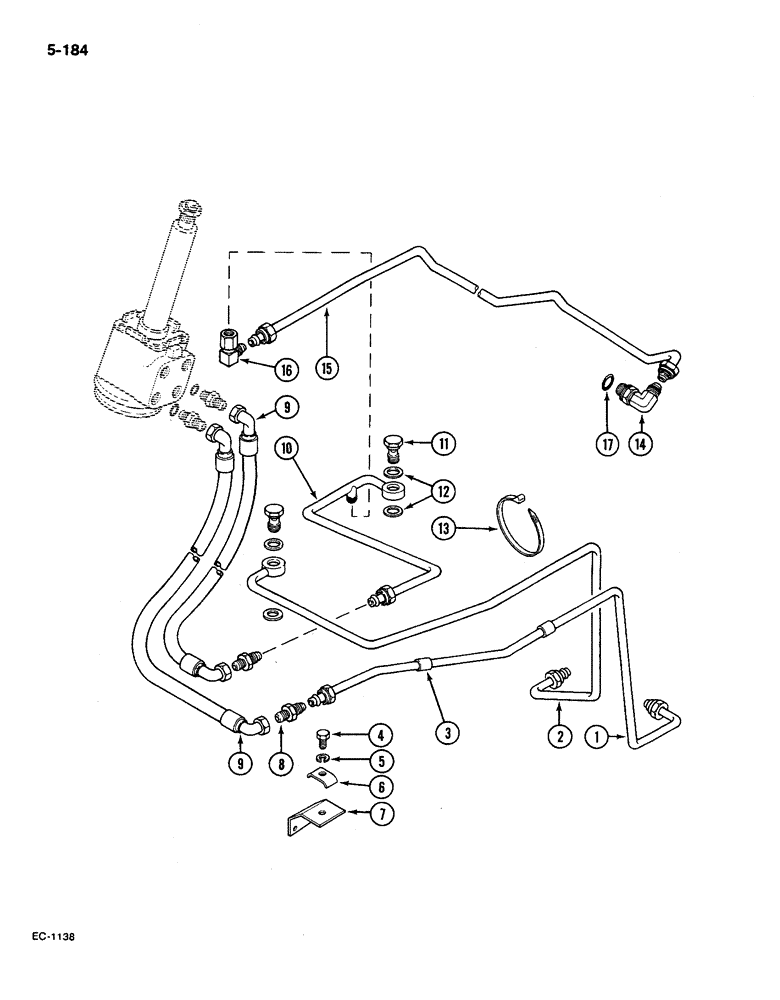

Запчасти Case IH 585 (5-184) - STEERING PIPES REAR, 4 WHEEL DRIVE, WITH CAB (05) - STEERING

1

99776C1

PIPE

TUBE power steering, pressure

1шт.

2

1287929C3

PIPE,65 mm Length

TUBE outlet

1шт.

3

673171C1

RUBBER BUSHING

SLEEVE rubber

2шт.

4

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

hex, M6 x 20 mm, grade 8.8

1шт.

5

933833R1

LOCK WASHER,M6

WASHER lock, M6

1шт.

6

1500302C1

CLAMP

1шт.

7

1500300C1

SUPPORT

BRACKET power steering pipes, rear

1шт.

8

1287927C1

FITTING

UNION tube

1шт.

9

1502284C1

HOSE

hydraulic, pressure and return

2шт.

10

1287926C3

PIPE

TUBE 2 speed power shift, inlet

1шт.

11

1500102C1

SCREW

hollow

2шт.

REF#11 P/N 1500102C1, GPN HAS "C2" SUFFIX SET-UP. NO SUB OF "C1" TO "C2" FOUND. JBEDFORD 5/19/99.

1шт.

12

1328294C1

SEAL

bonded, inlet and outlet

4шт.

13

306132C1

CABLE TIE,14.5" L

STRAP cable, 4.0 max bundle

2шт.

14

99865C1

ELBOW

1шт.

15

99489C3

PIPE

TUBE drop box

1шт.

16

99706C1

ELBOW

90 degree swivel

1шт.

17

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 1/2 OD tube

1шт.
