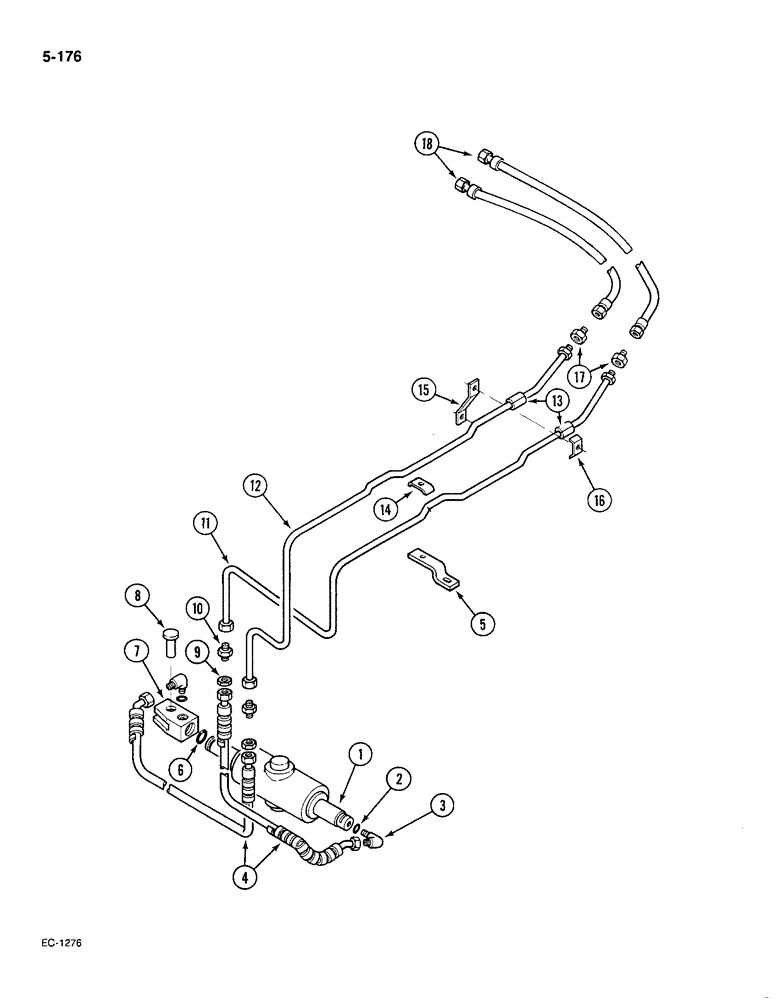

Запчасти Case IH 585 (5-176) - STEERING PIPES FRONT - 2 WHEEL DRIVE, P.I.N. 18001 AND AFTER (05) - STEERING

1

549667R92

STEERING CYLINDER

CYLINDER power steering, tractors with adjustable straight front axle, see Figure 5-200

1шт.

84336125R

REMAN-HYD CYLINDER

585 P.I.N. 18001 AND AFTER (1/86-12/90), Reman for New P/N 549667R92

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

1

3118502R93

STEERING CYLINDER

CYLINDER power steering, tractors with heavy duty cast front axle, see Figure 5-192

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6, tractors with adjustable straight front axle

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 degree adjustable, 3/8 inch OD tube, tractors with adjustable straight front axle

2шт.

4

3121235R1

HOSE

power steering cylinder

2шт.

5

99790C1

SUPPORT

BRACKET support, tractors without cab

1шт.

109084

NUT,1/4"-20, G5

Tractors without cab 1/4"-20, G5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , Tractors without cab 1/4"

1шт.

6

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6, tractors with adjustable straight front axle

1шт.

7

3125306R1

CLEVIS,9/16" - 18

cylinder end, tractors with adjustable straight front axle

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING grease, short drive type, 3/16 inch, tractors with adjustable straight front axle

1шт.

8

3125305R1

PIN

power steering cylinder, tractors with adjustable straight front axle

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), , tractors with adjustable straight front axle 1/4" x 1 1/4"

1шт.

9

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT lock, bulkhead union, 3/8 inch

2шт.

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

10

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION tube, bulkhead, 3/8 inch

2шт.

11

1282990C2

HYD TUBE

TUBE power steering, front left

1шт.

11

1537127C1

HYD TUBE

TUBE with new oil bath cleaner, L.H., Start Year: 05-DEC-95

1шт.

12

1282991C2

HYD TUBE

TUBE power steering, front right

1шт.

12

1537126C1

HYD TUBE

TUBE with new oil bath cleaner, R.H., Start Year: 05-DEC-95

1шт.

13

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

14

529644R11

CLAMP

tube

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

15

1500311C1

BRACKET

power steering pipe, front

1шт.

16

529644R1

CLAMP

tube

1шт.

930609R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

hex, M6 x 25 mm, grade 8.8

1шт.

933833R1

LOCK WASHER,M6

WASHER lock, M6

1шт.

17

99713C1

FITTING

ADAPTER union

2шт.

18

1502283C1

HOSE

hydraulic, tractors with cab

2шт.

18

99784C1

HOSE

flexible, front, tractors without cab

2шт.
