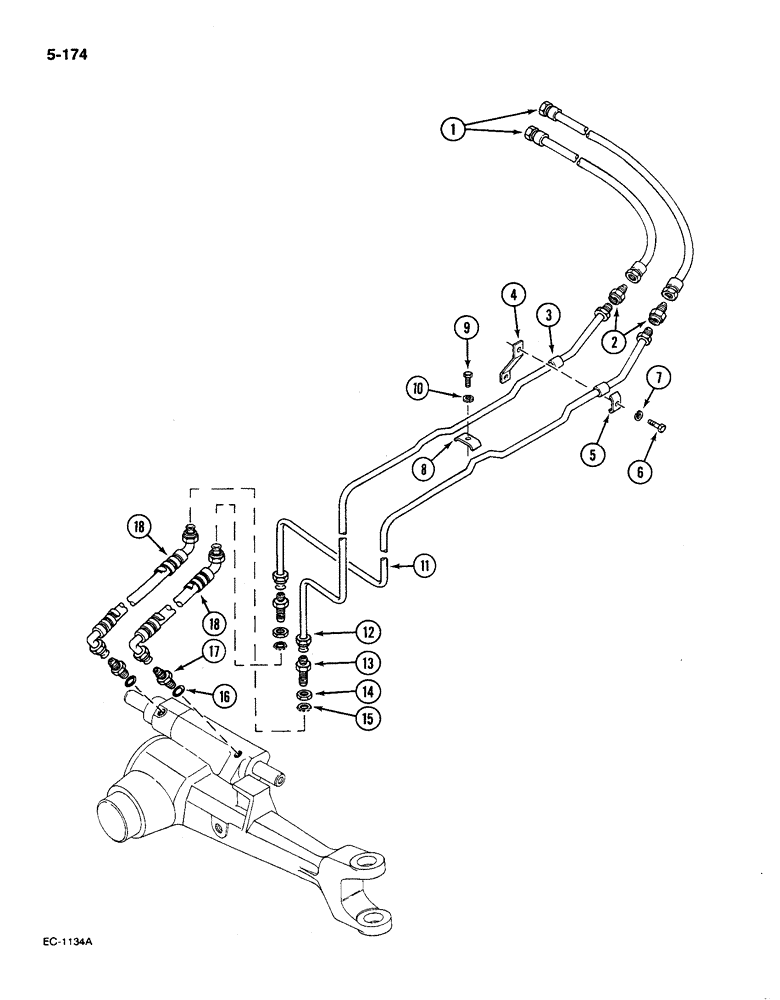

Запчасти Case IH 585 (5-174) - STEERING PIPES FRONT, 4 WHEEL DRIVE (05) - STEERING

1

1502283C1

HOSE

hydraulic, tractor with cab

2шт.

1

99784C1

HOSE

flexible, front, tractor without cab

2шт.

2

99713C1

FITTING

ADAPTER union

2шт.

3

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

4

1500311C1

BRACKET

power steering pipe, front

1шт.

5

529644R1

CLAMP

tube

1шт.

6

930609R1

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

hex, M6 x 25 mm, grade 8.8

1шт.

7

933833R1

LOCK WASHER,M6

WASHER lock, M6

1шт.

8

529644R1

CLAMP

tube

1шт.

9

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

99425C1

PIPE

TUBE power steering front, right, Serial Range: -22025

1шт.

11

1333031C1

HYD TUBE

TUBE power steering front, right, Start Serial: 22025

1шт.

11

1537031C1

HYD TUBE

TUBE used with new oil bath cooler, R.H., Start Year: 05-DEC-95

1шт.

12

99426C1

PIPE

TUBE power steering front, left, Serial Range: -22025

1шт.

12

1333032C1

TUBE

power steering front, left, Start Serial: 22025

1шт.

12

1537032C1

HYD TUBE

TUBE used with new oil bath cooler, L.H., Start Year: 05-DEC-95

1шт.

13

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION tube, bulkhead, 3/8 inch

2шт.

14

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT lock, bulkhead union, 3/8 inch

2шт.

15

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

16

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

17

83357C1

FITTING

CONNECTOR

2шт.

18

87884C1

HOSE,9.53mm ID x 711mm L, SAE 100R1

power steering cylinder

2шт.
