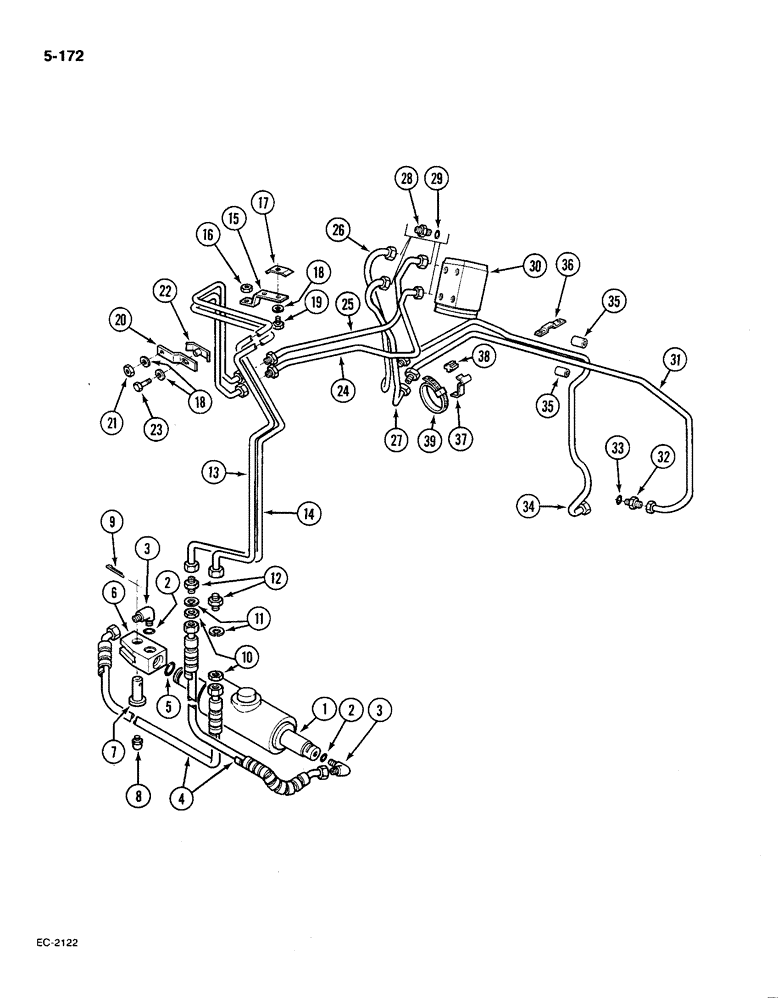

Запчасти Case IH 585 (5-172) - POWER STEERING, PRIOR TO P.I.N. 18001, WITH FRONT AXLE AND CAST BOLSTER (05) - STEERING

1

549667R92

STEERING CYLINDER

CYLINDER power steering, see Figure 5-200

1шт.

84336125R

REMAN-HYD CYLINDER

585 PRIOR TO P.I.N. 18001 (1/86-12/90), Reman for New P/N 549667R92

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

2

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

3

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 degree adjustable, 3/8 inch OD tube

2шт.

4

3121235R1

HOSE

power steering cylinder

2шт.

5

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

1шт.

6

3125306R1

CLEVIS,9/16" - 18

cylinder end

1шт.

7

3125305R1

PIN

power steering cylinder

1шт.

8

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING grease, short drive type, 3/16 inch

1шт.

9

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

10

9403293

LOCK NUT,Blkhd, 9/16"-18

NUT lock, bulkhead union, 3/8 inch

2шт.

11

115553

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, Int Tooth, 5/8"

2шт.

12

9403254

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

UNION tube, bulkhead, 3/8 inch

2шт.

13

3121237R1

TUBE ASSY.

TUBE power steering, right forward

1шт.

14

3121236R1

TUBE ASSY.

TUBE power steering, left forward

1шт.

15

529646R1

BRACKET

front manifold support

1шт.

16

9635082

NUT,5/16" - 18, Gr 5

hex, 5/16 inch NC, grade 5

1шт.

17

529644R11

CLAMP

tube

1шт.

18

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

19

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

hex, 1/4 NC x 3/4 inch

1шт.

20

529642R1

BRACKET

front manifold

1шт.

21

109084

NUT,1/4"-20, G5

1шт.

22

384891R11

CLAMP

tube

1шт.

23

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

hex, 1/4 NC x 7/8 inch

1шт.

24

3116268R3

TUBE ASSY.

TUBE power steering, right rear

1шт.

25

3116267R1

TUBE ASSY.

TUBE power steering, left rear

1шт.

26

3116272R2

TUBE ASSY.

TUBE power steering return, front

1шт.

27

3116271R2

TUBE ASSY.,0.375" OD, 12.44, 4.28" Length

TUBE power steering pressure, front

1шт.

28

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

UNION straight, 3/8 to 1/2 inch

4шт.

29

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 inch OD tube, class 6

4шт.

30

67698C93

VALVE

integral power steering

1шт.

31

1502293C1

TUBE

power steering pressure, rear

1шт.

32

57577C1

CHECK VALVE

VALVE check

1шт.

33

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

34

3129257R1

TUBE ASSY.

TUBE power steering return, rear

1шт.

35

536009R1

FUEL HOSE,0.31" ID x 2.50"

Sleeve 0.31" ID x 2.50"

2шт.

36

3129261R1

BRACKET

pipe retaining

1шт.

37

529638R1

BRACKET

rear manifold

1шт.

38

529637R2

GUIDE

manifold tube

1шт.

39

306132C1

CABLE TIE,14.5" L

STRAP cable, 4.0 max bundle

2шт.
