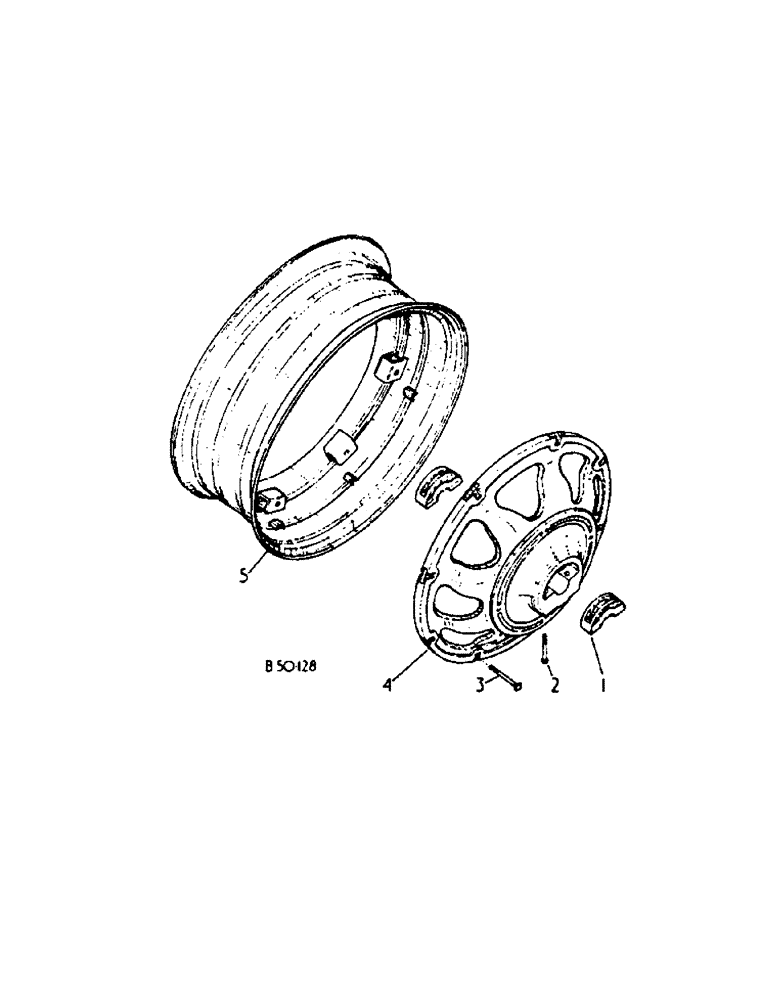

Запчасти Case IH 584 (15-04) - REAR WHEEL, ROW CROP TRACTORS Wheels & Traction

1

389539R1

CLAMP

rear wheel hub

4шт.

2

14-1480

BOLT,Hex, 7/8" - 14 x 5", Gr 5

SCREW, 7/8-14 x 4-3/4 hex hd cap

8шт.

3

381727R1

SCREW

BOLT, rim clamp

16шт.

363018R1

NUT

16шт.

4

388336R1

DISC

WHEEL, 42 in. rear disc, cast

2шт.

5

392714R91

RIM

ASSY, WDB9-42 rear w/clamps

2шт.

If looking for a rim just like it no. 5 appears, but the size is 2-14-38, the correct part number is 3123601R91, info per 884 tr cat.

1шт.
