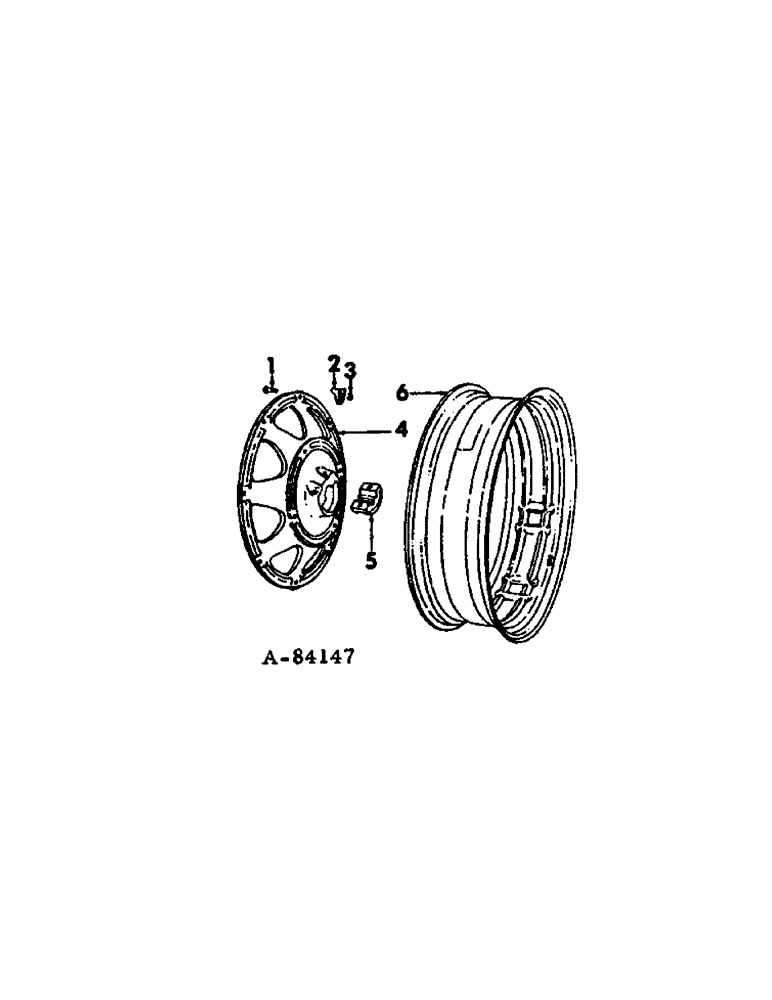

Запчасти Case IH 584 (15-04[A]) - REAR WHEEL WITH CAST DISC, ROW CROP TRACTORS Wheels & Traction

1

381727R1

SCREW

BOLT, rear wheel rim clamp

16шт.

2

381725R1

SHIN

CLAMP, rear wheel rim adj

12шт.

2

381726R1

SHIN

CLAMP, rear wheel rim fixed

4шт.

3

363018R1

NUT

rim clamp

16шт.

4

392415R1

WHEEL

ASSY, 38 in. rear

2шт.

5

389539R1

CLAMP

S, rear wheel hub

4шт.

375463R1

SCREW,Hex, 7/8" - 14 x 4 3/4"

7/8-14 x 4-3/4 cap

8шт.

6

380869R1

RIM

ASSY, WDB14-38 rear w/clamps

2шт.

6

383691R1

RIM

ASSY, WBD12-38 rear w/clamps

2шт.
