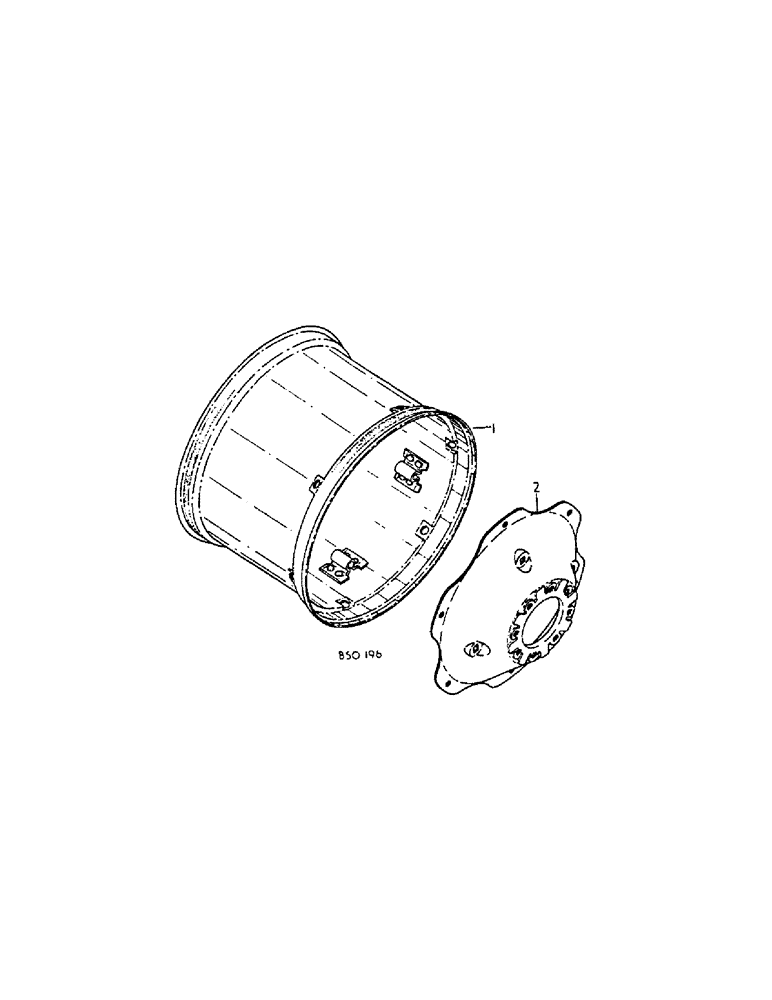

Запчасти Case IH 584 (15-03[A]) - REAR WHEELS, RIM ASSY. P/N 3129033R1 Wheels & Traction

1

3129033R1

RIM

ASSY, W15-26 rear wheel w/clamps

2шт.

2

66311C1

WHEEL

DISC, rear wheel

2шт.

363800R1

BOLT,5/8" - 18 x 3 1/8"

rear wheel clamp

12шт.

352777R1

NUT

rear wheel rim clamp, or

12шт.

225861

NUT,5/8"-18, G8

1шт.

131140

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

369730R1

WASHER

21/32 x 1-5/16 x 10 ga

12шт.
