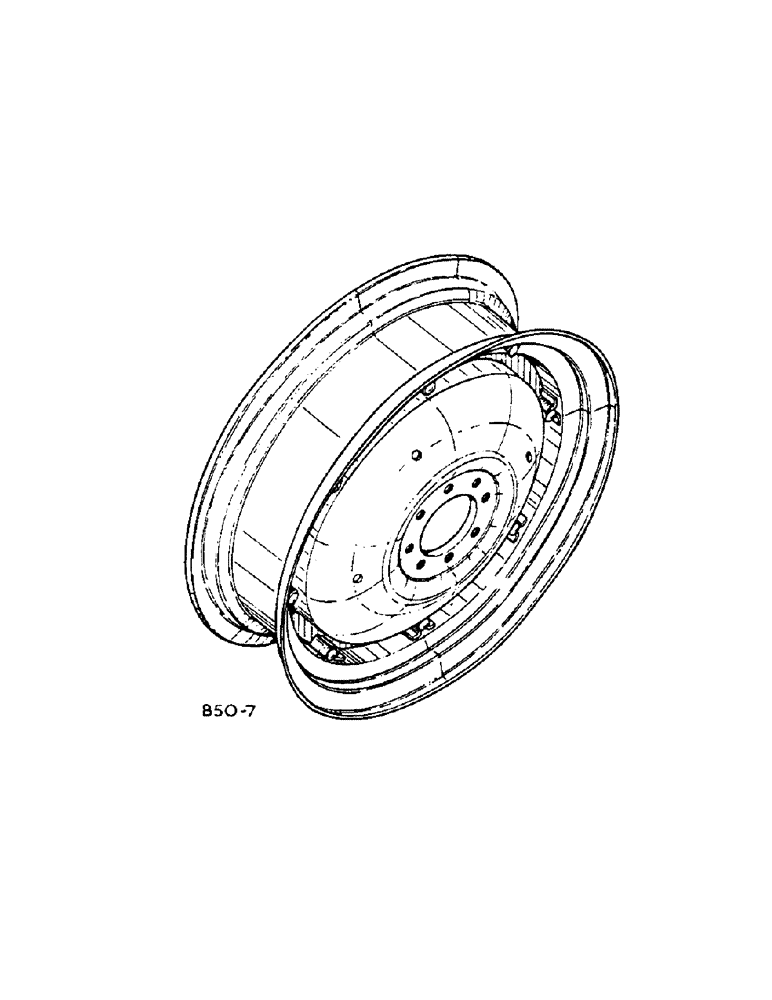

Запчасти Case IH 584 (15-02) - REAR WHEELS, EIGHT BOLT WHEEL TO RIM MOUNTING Wheels & Traction

1

527253R91

WHEEL

ASSY, DW14-30 rear

2шт.

406944R1

RIM

w/lug, DW14-30 rear wheel

2шт.

406942R1

DISC

rear wheel

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel disc

8шт.

406952R1

WASHER

rear wheel disc bolt

8шт.

406953R1

NUT

rear wheel disc bolt

8шт.

1

527251R91

WHEEL

ASSY, W13-28 rear

2шт.

406941R1

RIM

w/lug W13-28 rear wheel

2шт.

406942R1

DISC

rear wheel

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel disc

16шт.

406952R1

WASHER

rear wheel rim mtg bolt

16шт.

406953R1

NUT

rear wheel rim mtg

16шт.

1

537619R1

WHEEL

ASSY, rear w/12-24

2шт.

1

NSS

NOT SOLD SEPARAT

WHEEL ASSY, W15L-30 rear, order components

2шт.

3116540R1

RIM

w/lug

2шт.

3116404R1

DISC

rear wheel

2шт.

3116403R1

BOLT (SPREADER)

BOLT, rear wheel

12шт.

102639

NUT,5/8"-11, G5

12шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

1

527249R91

WHEEL

ASSY, W11-28 rear

2шт.

406939R1

RIM

W/LUG, W11-28 rear

2шт.

406942R1

DISC

rear wheel

2шт.

406951R1

BOLT,5/8" - 18 x 2.91", Gr 5

rear wheel rim mtg

16шт.

406952R1

WASHER

rear wheel mtg bolt

16шт.

406953R1

NUT

rear wheel mtg bolt

16шт.

1

527250R91

WHEEL

ASSY, W12-28 rear

2шт.

406940R1

RIM

W/LUG, W12-28 rear

2шт.

406942R1

DISC

rear wheel

2шт.

406941R1

RIM

BOLT, rear wheel rim mtg

16шт.

406952R1

WASHER

rear wheel mtg bolt

16шт.

406953R1

NUT

rear wheel mtg bolt

16шт.
