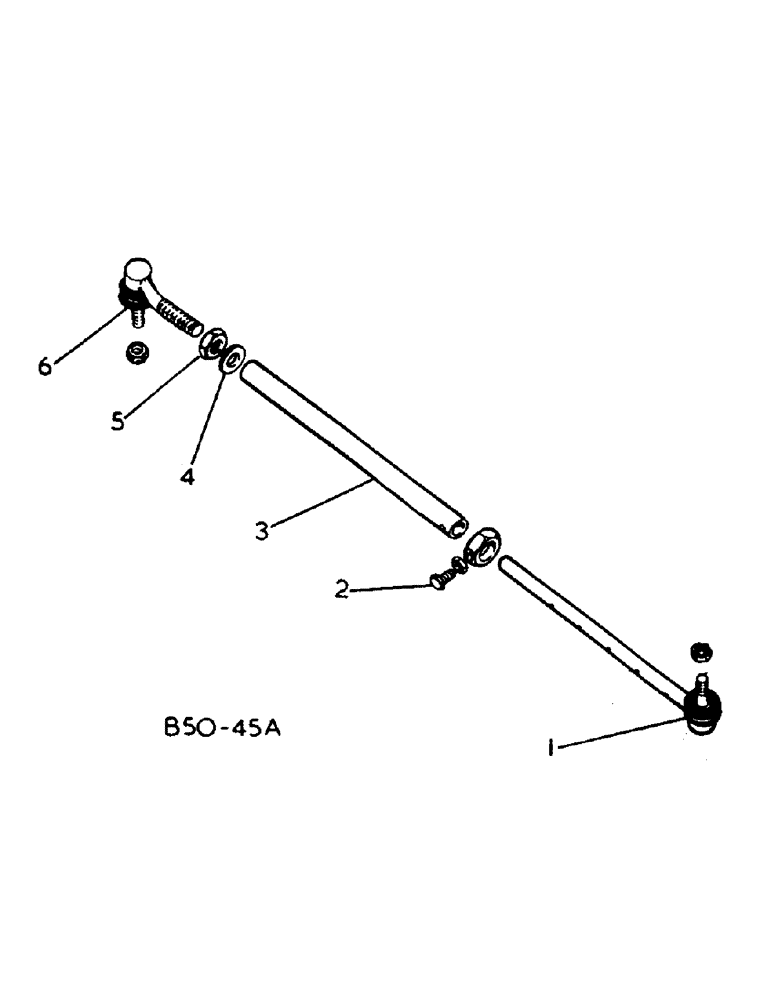

Запчасти Case IH 584 (14-11) - TIE ROD ASSY, ADJUSTABLE FRONT AXLE, STRAIGHT, HEAVY DUTY Suspension

3121427R92

ROD ASSY.

ROD ASSY, adjustable tie

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

4шт.

1

3125171R1

BALL JOINT

SOCKET ASSY, outer

1шт.

2

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW, set

1шт.

3116410R1

LOCK NUT

NUT, lock

1шт.

3

3125172R1

TUBE,20.75 mm ID, 28 mm OD, 382 mm Length

ROD ASSY

1шт.

4

3116411R1

LOCK WASHER

tab

1шт.

5

3116412R1

LOCK NUT

NUT, lock

1шт.

6

3116407R2

BALL JOINT

SOCKET ASSY, inner

1шт.
