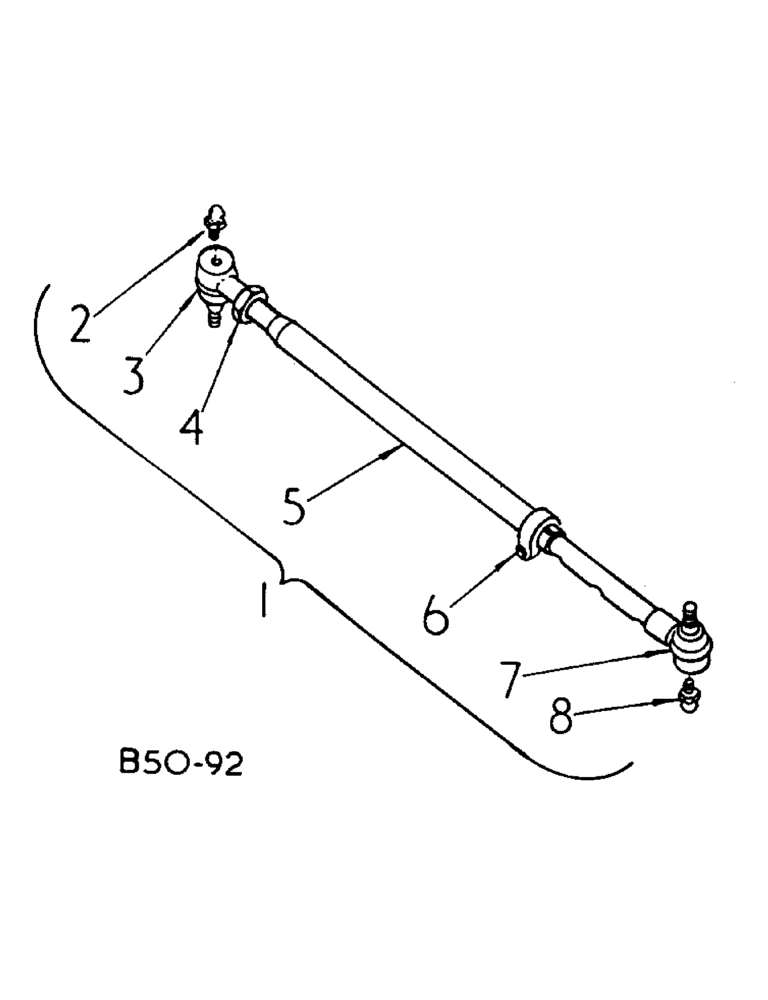

Запчасти Case IH 584 (14-09) - TIE ROD, SWEPT BACK AXLE Suspension

1

NSS

NOT SOLD SEPARAT

ROD ASSY, tie, order components ref no 2 thru 8, using tie rod tube clamp as illustrated

1шт.

1

NSS

NOT SOLD SEPARAT

ROD ASSY, tie, using lock nut tube clamp, order components as follows

1шт.

3116407R2

BALL JOINT

JOINT, ball, threaded end

1шт.

3129379R1

TUBE,20.7 mm ID, 28 mm OD, 419 mm Length

ASSY, center

1шт.

3129380R1

JOINT

ball, dimple end

1шт.

3116409R1

SET SCREW,Hex, 7/16" - 14 x 1"

SCREW, set

1шт.

3116410R1

LOCK NUT

NUT, lock

1шт.

3116411R1

LOCK WASHER

1шт.

3116412R1

LOCK NUT

NUT, clamp

1шт.

2

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

NIPPLE, LUBE, 90°, 1/4" NPT x .75" lg, Drive

2шт.

3

527658R91

BALL JOINT

END ASSY, RH

2шт.

3

527658R91GV

TIE-ROD

Value, Tie Rod End

2шт.

102648

SLOTTED NUT,9/16"-18, G5

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

358900R1

SEAL

COVER, dust

2шт.

4

390686R1

JAM NUT

11/16-18 hex jam

2шт.

5

527659R2

TUBE

tie rod

2шт.

6

43747D

CLAMP

tie rod tube

2шт.

537165R1

BOLT,Hex, 7/16" - 20 x 1-7/8", Gr 5

7/16-20 x 1-3/4 hex hd cap

2шт.

9421096

LOCK WASHER,7/16"

2шт.

425-117

NUT,7/16"-20, G5

7/16-NF pln type 5

2шт.

7

527660R91

END

ASSY, LH, or

2шт.

7

65082C91

END

ASSY, LH

2шт.

102648

SLOTTED NUT,9/16"-18, G5

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

358900R1

SEAL

COVER, dust

2шт.

8

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Taper, Straight 1/4"-28 NPT x .54" lg

1шт.
