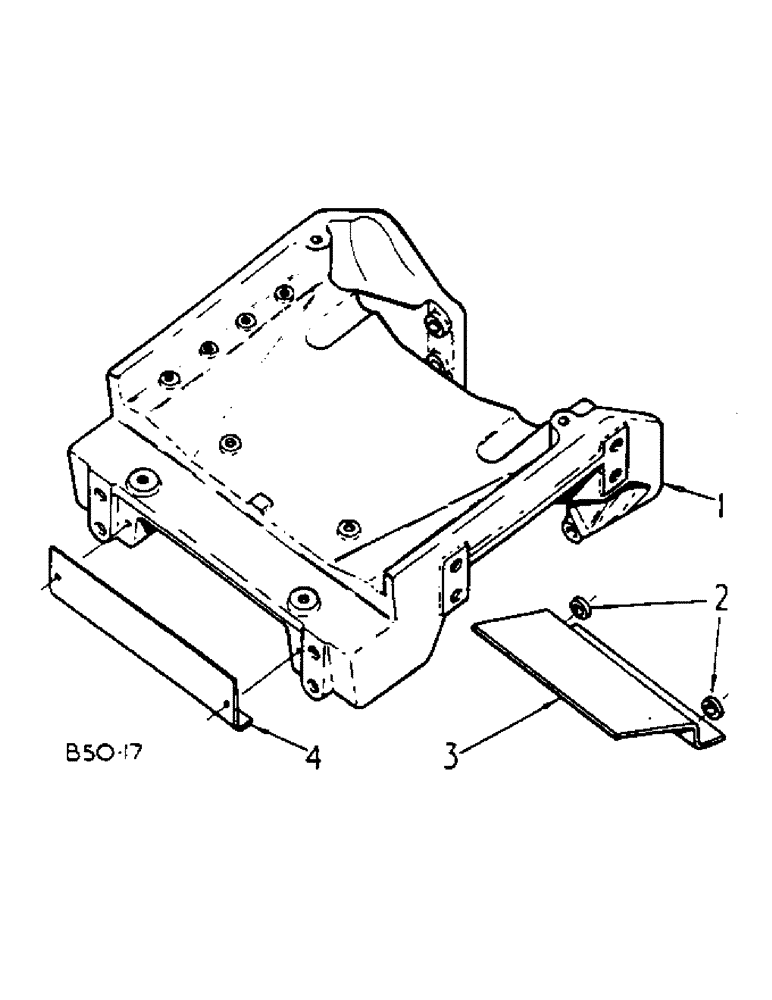

Запчасти Case IH 584 (14-08) - FRONT BOLSTER, CAST Suspension

1

3121169R4

BOLSTER

front

1шт.

271564

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 5

5/8 x 2-1/2 pln type 5, or

6шт.

24970R1

BOLT

5/8 x 2.500 pln type 5, 12 pt flg

6шт.

2

534813R1

SPACER

bolster air baffle

1шт.

3

534812R1

BAFFLE

bolster, front axle, straight, all wheel drive Kimco axle

1шт.

3

534811R1

PROTECTION PLATE

BAFFLE, front bolster air, front axle, swept back

1шт.

3

1500014C1

BAFFLE

bolster, all wheel drive ZF axle

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

5/8 x 3-1/4 pln type 5

2шт.

369936R1

WASHER

bolster air baffle

2шт.

4

3121168R3

COVER

bolster front

1шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 znp P/HDS mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
