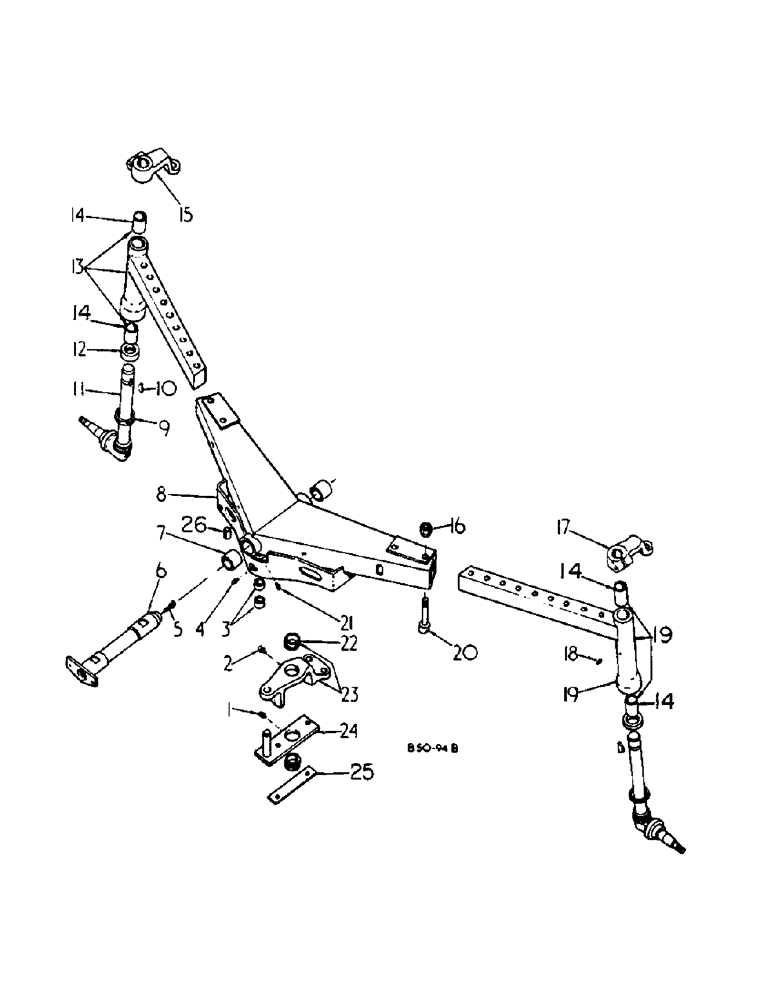

Запчасти Case IH 584 (14-06) - ADJUSTABLE FRONT AXLE, SWEPT BACK, 48 TO 80 INCH TREAD Suspension

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type

1шт.

3

405574R1

BUSHING

support

2шт.

4

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 45 deg angle drive type

1шт.

5

273352

SCREW

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

6

539128R1

SHAFT ASSY.

SHAFT ASSY, front axle pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

hardened

2шт.

7

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

8

539158R93

AXLE

ASSY, front, center section, composed of ref no. 3, 7 & 25, on orders for 539158R91 furnish 539158R93 plus clevis 3125306R1, pin 3125305R1 and bushing 3125304R1

1шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

405840R12

KNUCKLE

ASSY, steering

2шт.

12

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

BEARING, steering knuckle thrust

2шт.

13

66702C91

EXTENSION

ASSY, front axle RH

1шт.

14

376099R1

BUSHING

4шт.

15

405837R1

ARM

steering knuckle, RH

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

16

405576R1

NUT

front axle

4шт.

17

405836R1

ARM

steering knuckle, LH

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

18

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type str lub

2шт.

19

66701C91

EXTENSION

ASSY, front axle LH

1шт.

20

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

21

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

22

379748R1

BUSHING

2шт.

23

405585R11

ARM

ASSY, power steering center

1шт.

24

405580R11

BAR ASSY.

BAR ASSY, power steering cylinder

1шт.

25

67976C1

PLATE, LOCKING

STRIP STRG, center arm bolt lock

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

26

3125304R1

BUSHING

spring steel

1шт.
