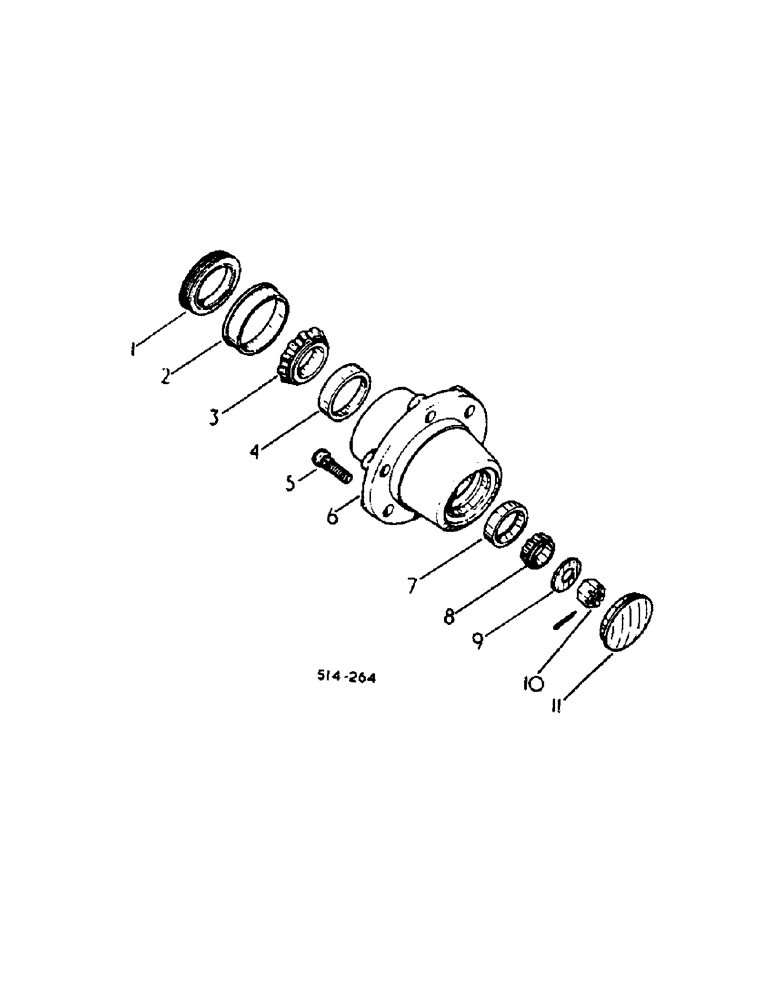

Запчасти Case IH 584 (14-04[A]) - FRONT WHEEL HUB, BEARINGS AND CAP ADJUSTABLE FRONT AXLE, STRAIGHT HEAVY DUTY Suspension

1

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

front wheel dust

1шт.

2

67328C1

SEALING RING

RING, wear

2шт.

3

400987C91

BEARING ASSY,1.7817" ID x 2.892" OD x 0.77, 0.62"

BEARING ASSY, inner cone

1шт.

4

400988C1

BEARING, CUP

Inner

1шт.

5

528803R1

BOLT,1/2" - 20 x 1.75"

Mounting

12шт.

483879R1

NUT

wheel

12шт.

6

67527C92

HUB

ASSY, front wheel

1шт.

7

536054R1

BEARING CUP,60mm OD x 11.94mm W

BEARING, outer cup

1шт.

8

536053R1

ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"

BEARING ASSY, outer cone

1шт.

9

105759C1

WASHER

outer bearing retainer

1шт.

10

427639

SLOTTED NUT,3/4"-16, G5

NUT, 3/4-NF pln slt type 5

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

11

612884R1

HUB CAP

CAP, front wheel hub

1шт.

B93362

BEARING

KIT, the following part numbers are included in this kit

1шт.

369857R1

WASHER,20.7mm ID x 31.75mm OD x 3mm Thk

1шт.

371882R91

ROLLER BEARING,20.64mm ID x 49.23mm OD x 19.84mm W

1шт.

371883R1

BEARING CUP

Set

1шт.

406295R2

RING

1шт.

432-1024

COTTER PIN,5/32" x 1 1/2"

subbed from 108643 5/32" x 1 1/2"

1шт.

48539DA

PACKING RING

RING, PACKING, seal

1шт.

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

BEARING, CONE

1шт.

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Set

1шт.
