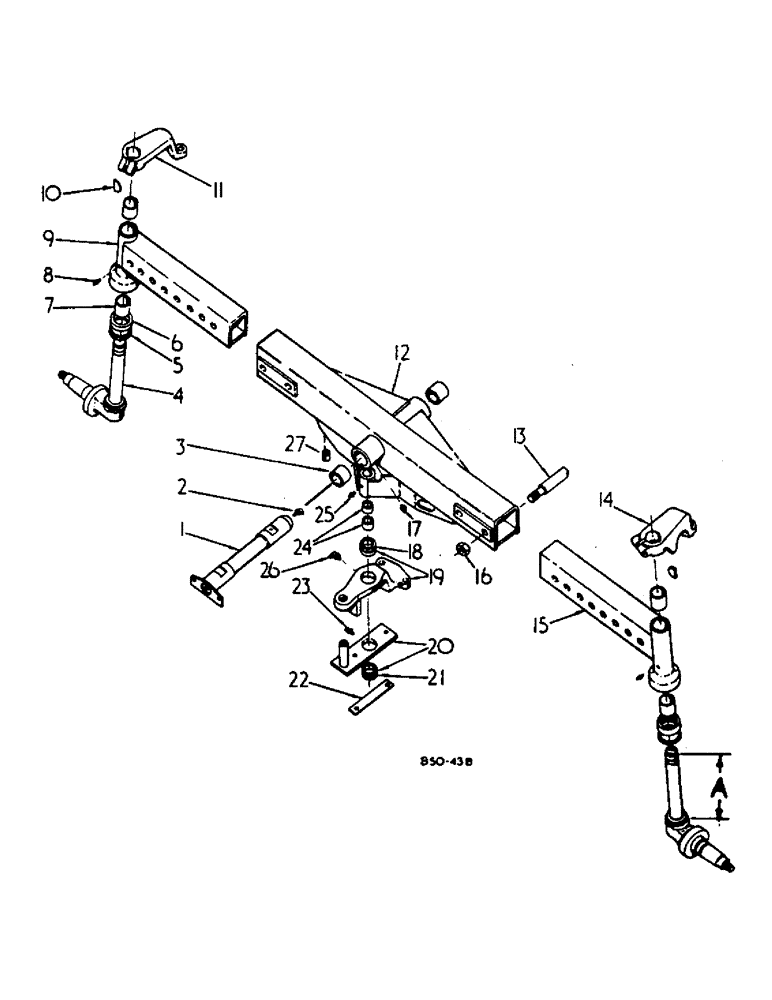

Запчасти Case IH 584 (14-03) - ADJUSTABLE FRONT AXLE, STRAIGHT, HEAVY DUTY, 52 TO 80 INCH TREAD, UTILITY TRACTORS Suspension

1

3121254R1

SHAFT ASSY.

SHAFT ASSY, front axle pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

hardened

2шт.

2

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING, 1/8 PTF short 90d lub

1шт.

3

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

4

3121270R91

KNUCKLE

ASSY, steering, low spindle, A dimension is 8.328 in.

2шт.

5

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

6

405831R91

BEARING

steering knuckle thrust

1шт.

7

376099R1

BUSHING

4шт.

8

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 hole 45d lub

2шт.

9

3121268R91

EXTENSION ASSY.

EXTENSION ASSY, front axle R.H., low spindle

1шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

3121264R1

ARM

steering knuckle R.H.

1шт.

454993

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

1/2 x 3-1/2 pln type 8

1шт.

25526R1

NUT,1/2"-13, G8

1/2 PHC type 8

1шт.

12

3121242R92

CENTER AXLE

AXLE ASSY, center, straight, on order for R91 order 3121242R92 w/clevis 3125306R1, pin 3125305R1, and bushing 3125304R1

1шт.

13

3121252R1

BOLT,3/4" - 16 x 1 27/32"

axle extension shoulder

4шт.

14

3121263R1

ARM

steering knuckle L.H.

1шт.

454993

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

1/2 x 3-1/2 pln type 8

1шт.

25526R1

NUT,1/2"-13, G8

1/2 PHC type 8

1шт.

15

3121267R91

EXTENSION ASSY.

EXTENSION ASSY, front axle R.H., low spindle

1шт.

16

3121253R1

SPECIAL NUT

front axle

4шт.

17

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 hole less ball check lub, brg tube and pivot spacer

1шт.

18

379748R1

BUSHING

1шт.

19

67499C91

ARM ASSY.

ARM ASSY, power steering center

1шт.

20

405580R11

BAR ASSY.

BAR ASSY, power steering cylinder

1шт.

21

379748R1

BUSHING

1шт.

22

67976C1

PLATE, LOCKING

STRIP, steering center arm bolt lock

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

23

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 hole less ball check lub

2шт.

24

405574R1

BUSHING

cylinder mounting bracket

2шт.

25

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 hole less ball check lub

1шт.

26

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 hole 65d lub

1шт.

27

3125304R1

BUSHING

spring steel

1шт.
