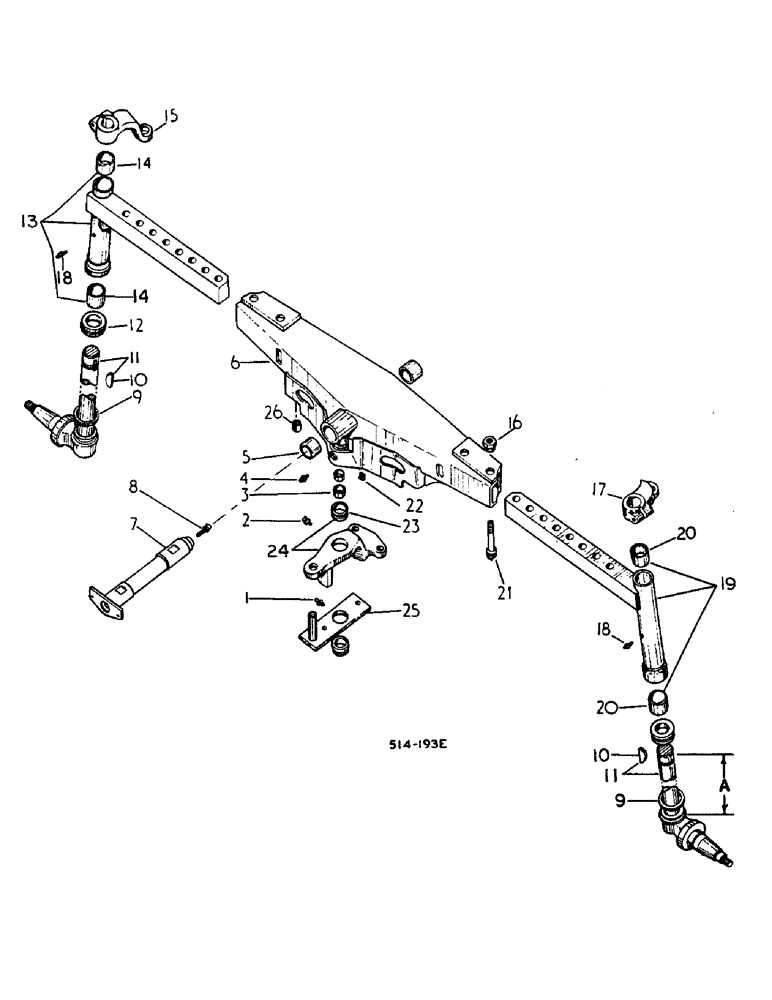

Запчасти Case IH 584 (14-01) - ADJUSTABLE FRONT AXLE, STRAIGHT, 52 TO 80 INCH TREAD Suspension

1

125617

LUBE NIPPLE,3/16" x .61 lg, Drive

FITTING, 3/16 drive type str lub

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg drive type str lub

1шт.

3

405574R1

BUSHING

support, or

2шт.

3

376160R1

BUSHING,25.4mm ID x 28.7mm OD x 19.3mm L

support

2шт.

4

20605R1

LUBE NIPPLE,45 Degree, 3/16" x .62" lg, Drive

FITTING, 1/4 45 deg angle drive type

1шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

pivot

2шт.

6

69881C92

FRONT AXLE

AXLE ASSY, front, composed of ref no. 3, 5 & 26, replaces 539161R92

1шт.

405574R1

BUSHING

cyl mounting bracket

2шт.

7

539128R1

SHAFT ASSY.

SHAFT ASSY, front axle pivot

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

1251958C1

WASHER,13mm ID x 25.40mm OD x 1.367mm, HTS

hardened

2шт.

8

273352

SCREW

FITTING, 1/8-27 PTF 90 deg angle lub

1шт.

9

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle felt

2шт.

10

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

2шт.

11

405840R12

KNUCKLE

ASSY, steering, low spindle, A dimension is 12.17 in.

2шт.

Utility tractors.

1шт.

11

527292R92

STEERING KNUCKLE

KNUCKLE ASSY, steering, high spindle, A dimension is 15.35 in.

2шт.

Utility and row crop tractors.

1шт.

11

534288R92

KNUCKLE

ASSY, steering, low low spindle, A dimension is 9.52 in.

2шт.

Low profile utility tractors.

1шт.

12

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

BEARING, steering knuckle thrust

2шт.

13

67533C91

EXTENSION ASSY.

EXTENSION ASSY, front axle RH, low spindle

1шт.

Utility tractors.

1шт.

13

67502C91

EXTENSION ASSY.

EXTENSION ASSY, front axle RH, high spindle

1шт.

Utility and row crop tractors.

1шт.

13

3116476R91

EXTENSION ASSY.

EXTENSION ASSY, front axle RH, low low spindle

1шт.

Low profile utility tractors.

1шт.

14

376099R1

BUSHING

2шт.

15

67525C1

ARM

steering knuckle RH

1шт.

102637

NUT,1/2"-13, G5

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

16

405576R1

NUT

front axle

4шт.

17

67524C1

ARM

steering knuckle LH

1шт.

16081R1

BOLT,Hex, 1/2" - 13 x 3 1/8", Gr 5

1шт.

102637

NUT,1/2"-13, G5

1шт.

18

443567

LUBE NIPPLE,1/4" x .56 lg, Drive

FITTING, 1/4 drive type str lub

2шт.

19

67532C91

EXTENSION ASSY.

EXTENSION ASSY, front axle LH, low spindle

1шт.

Utility tractors.

1шт.

19

67501C91

EXTENSION ASSY.

EXTENSION ASSY, front axle LH, high spindle

1шт.

Utility and row crop tractors.

1шт.

19

3116475R91

EXTENSION ASSY.

EXTENSION ASSY, front axle LH, low low spindle

1шт.

Low profile utility tractors.

1шт.

20

376099R1

BUSHING

2шт.

21

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

22

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 drive type str lub

1шт.

23

379748R1

BUSHING

2шт.

24

67499C91

ARM ASSY.

ARM ASSY, power steering center

1шт.

25

405580R11

BAR ASSY.

BAR ASSY, power steering cylinder

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

67976C1

PLATE, LOCKING

STRIP, steering center arm bolt lock

1шт.

26

3125304R1

BUSHING

spring steel

1шт.
