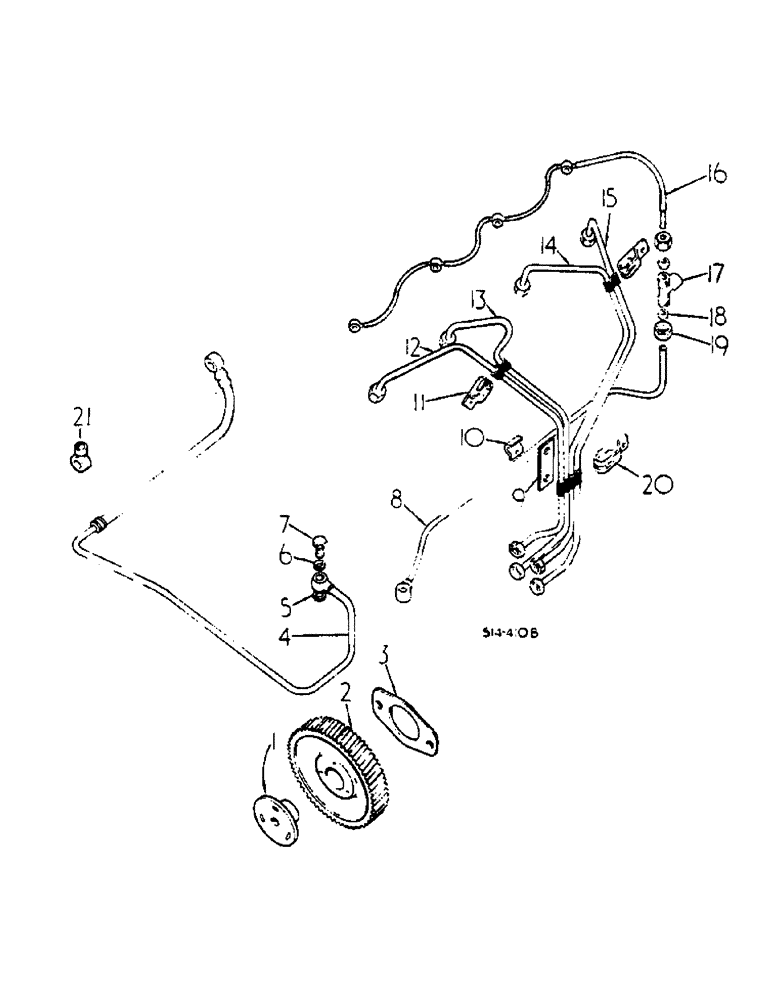

Запчасти Case IH 584 (12-39) - FUEL INJECTION PIPES AND PUMP GEAR Power

1

3055067R2

HUB

injection pump gear

1шт.

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 x 3/4 PHC type 8

3шт.

30183R1

WASHER,M8 x 21.5 x 2.5, HT

8.8 x 21 x 2.5mm PHC

3шт.

2

3056885R3

PINION

GEAR, injection pump

1шт.

3

3055384R1

GASKET

fuel injection pump

1шт.

4

3136077R2

FUEL HOSE

filter to injection pump

1шт.

Engine serial no. 318209 and below.

1шт.

4

3228005R1

HOSE

PIPE, filter to injection pump

1шт.

Engine serial no. 318210 and above.

1шт.

710098R2

BANJO BOLT,M14 x 1.5 x 32mm

SCREW, hollow

2шт.

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

4шт.

3132052R1

CLIP

fuel line

2шт.

5

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing M12 x 18 x 1.5

1шт.

6

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

Packing M12 x 15.5 x 1.5

1шт.

7

717200R1

BANJO BOLT,M12 x 1.5 x 28mm

SCREW, hollow

1шт.

8

3144382R1

TUBE ASSY.

PIPE, overflow, Bosch injection C.R. pump

1шт.

713845R1

SEALING WASHER,M12 x 15.5 x 1.5

Packing M12 x 15.5 x 1.5

2шт.

9

3132174R1

LINK

fuel line fixing

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10

3055386R1

CLAMP

CLIP, fuel line

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

3052189R1

BELLEVILLE WASHER

1/4 med lock

2шт.

11

3132770R1

COLLAR

CLAMP, pipe

2шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

M6 x 12 pan hd

3шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

3шт.

12

3218481R1

LINE

PIPE, injection no. 1 cylinder

1шт.

13

3218482R1

PIPE

injection no. 2 cylinder

1шт.

14

3218483R1

PIPE

injection no. 3 cylinder

1шт.

15

3218484R1

PIPE

injection no. 4 cylinder

1шт.

16

3218124R1

HOSE

1шт.

3218130R1

BANJO BOLT,Hex, M6 x 133.02mm

hollow

4шт.

933696R1

SEALING RING,M6 x 10 x 1

RING - packing, 6 x 10 mm

8шт.

17

3055739R1

TEE,1/2" - 20 x M14 x 1.5 ORFS x M14 x 1.5 ORFS

special tee

1шт.

18

3056136R1

SLEEVE,Cutting Ring, 8mm ID x 11mm OD x 9mm L

compression

2шт.

19

3056137R1

PIPE UNION NUT,Coupling, M14 x 1.5

NUT, coupling

2шт.

20

3132768R1

CLAMP

pipe

1шт.

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

M6 x 12 pan hd

1шт.

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

1шт.

21

3228006R1

FITTING

1шт.

Engine serial no. 318210 and above.

1шт.
