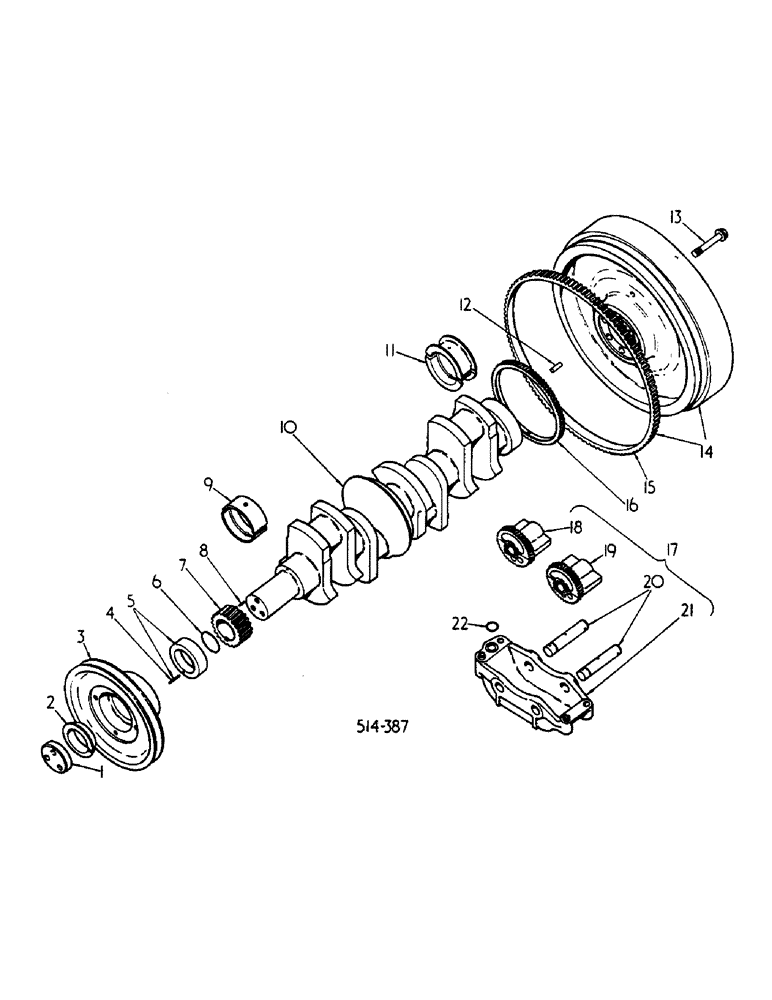

Запчасти Case IH 584 (12-29) - CRANKSHAFT, FLYWHEEL AND BEARINGS Power

1

3055154R1

WASHER

pressure

1шт.

308464R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

3шт.

2

3138874R1

BEARING WASHER

RING, clamping

1шт.

3

3138838R2

PULLEY

crankshaft

1шт.

4

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

5

NSS

NOT SOLD SEPARAT

RING ASSY, distance, order package 3228133R93

1шт.

6

713778R1

O-RING,3mm Thk x 55mm ID

1шт.

7

3055028R1

PINION

GEAR, crankshaft pinion, 33T

1шт.

8

932169R1

LOCK PIN,M4 x 10, Slotted

Roll M4 x 10, Slotted

1шт.

9

3055130R21

CRANKSHAFT BEARING

BEARING ASSY, main std

4шт.

9

3056832R21

BEARING ASSY

BEARING, main 0.25mm U/S

4шт.

Engine serial no. D317628 and above.

1шт.

10

3132968R93

CRANKSHAFT BEARING

W/BEARINGS, std., consists of crankshaft (NSS)

1шт.

3055028R1

PINION

GEAR

1шт.

3136237R1

PINION

GEAR

1шт.

NLS

NO LONGER SERVICED

PIN

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

2шт.

3055129R21

CRANKSHAFT BEARING

BEARING

1шт.

3055130R21

CRANKSHAFT BEARING

BEARING

4шт.

3055351R91

BEARING ASSY

BEARING

4шт.

10

3132969R93

CRANKSHAFT

W/BEARINGS, 0.25mm U/S, consists of crankshaft (NSS)

1шт.

Engine serial no. D317628 and above.

1шт.

3055028R1

PINION

GEAR

1шт.

3136237R1

PINION

GEAR

1шт.

141242

DOWEL

PIN

1шт.

932169R1

LOCK PIN,M4 x 10, Slotted

1шт.

3056820R11

BEARING ASSY

BEARING, main 0.25mm U/S

1шт.

3056832R21

BEARING ASSY

BEARING, main 0.25mm U/S

4шт.

3056834R11

BEARING ASSY

BEARING, connecting rod 0.25 U/S

4шт.

11

3055129R21

CRANKSHAFT BEARING

BEARING ASSY, main std.

1шт.

11

3056820R11

BEARING ASSY

BEARING, main 0.25mm U/S

1шт.

Engine serial no. D317628 and above.

1шт.

12

NLS

NO LONGER SERVICED

PIN, 3/8 x 7/8 pln UHDN dowel

1шт.

13

3218037R1

BOLT,Hex, 1/2" - 20 x 58.5mm

Flywheel, Use w/flywheel 3136044R41

7шт.

13

3144213R1

BOLT,Hex, 1/2" - 20 x 53mm

Flywheel, Use w/flywheel 1808412C91

7шт.

14

3136044R41

FLYWHEEL WITH GEAR

FLYWHEEL ASSY, tractors w/11 inch clutch

1шт.

14

1808412C91

FLYWHEEL

ASSY, tractors w/12 inch clutch

1шт.

15

60883H

RING GEAR

GEAR

1шт.

16

3136237R1

PINION

GEAR, balancer drive

1шт.

17

3228366R91

BALANCER

ASSY, complete, consists of ref no. 18 thru 21

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

7/16 x 2-1/4 pln type 5

1шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

1шт.

3218543R1

LOCK WASHER

7/16 lock

3шт.

18

WEIGHT ASSY, idler, order set 3228372R91

1шт.

19

WEIGHT ASSY, drive, order set 3228372R91

1шт.

20

3132878R11

PIN,23mm OD x 93mm L

SHAFT ASSY, weight

2шт.

21

HOUSING ASSY (NSS), order assy 3228366R91

1шт.

932229R1

SPLIT PIN/SAFETY PIN

PIN, 4 x 20 roll

1шт.

932299R1

LOCK PIN,M2.5 x 20, Slotted

M2.5 x 20

2шт.

3055174R1

BUSHING

dowel

2шт.

22

380839R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

7/8 x 1-1/16 class 6

1шт.

3228133R93

SEAL KIT

PACKAGE, crankshaft oil seal, consists of, retainer, distance (NSS), seal, radial lip (NSS)

1шт.

713788R1

RING, sealing

1шт.

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

932224R1

DOWEL,M4 x 32, Oval

PIN, 4M6 x 32

1шт.

932652R1

DOWEL,4mm OD x 28mm L

PIN, 4M6 x 28, instructions (NSS)

1шт.

3228372R91

BALANCING WEIGHT

SET, matched balancer weights assy, consists of ref nos. 18 & 19

1шт.
