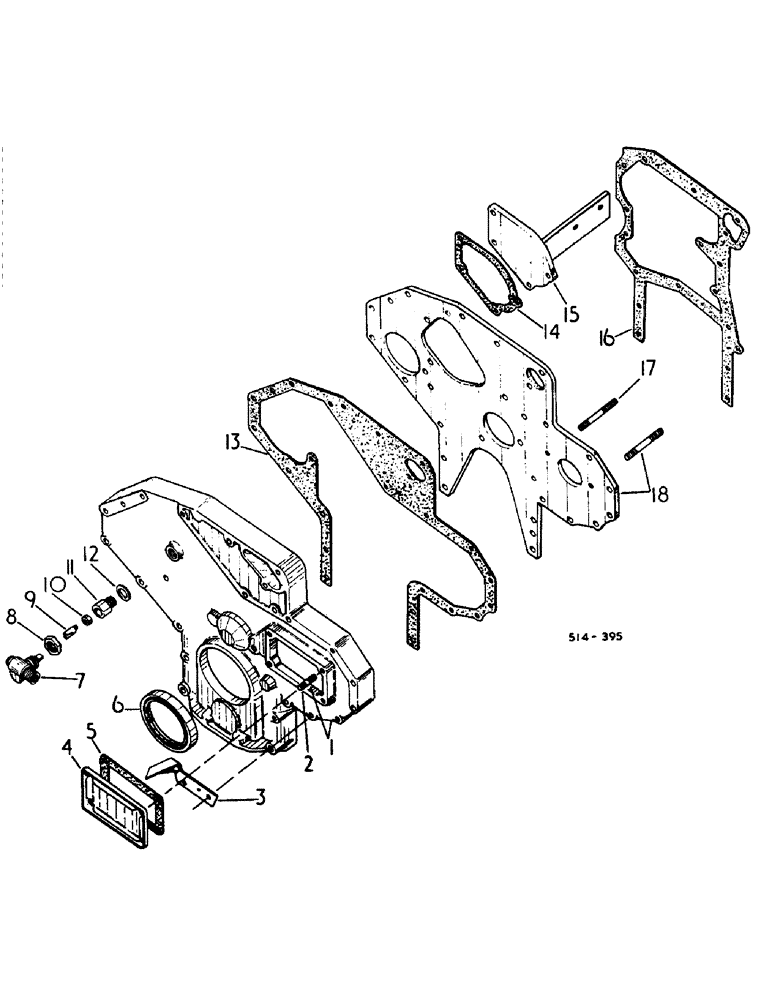

Запчасти Case IH 584 (12-26) - CRANKCASE FRONT COVER Power
№
Артикул
Название
Примечание
Количество
1
3136057R14
COVER ASSY
crankcase front
1шт.
179826
BOLT,Hex, 5/16" - 18 x 2", Gr 5
9шт.
13-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
2шт.
9635082
NUT,5/16" - 18, Gr 5
7шт.
3050129R1
LOCK WASHER
WASHER, lock
5шт.
3218395R1
BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk
6шт.
179828
BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5
2шт.
2
3055242R1
STUD
crankcase front cover
4шт.
3
3136040R21
ADJUSTER
INDICATOR, timing assy
1шт.
4
3055140R1
COVER
injection pump
1шт.
3050129R1
LOCK WASHER
WASHER, lock
4шт.
9635082
NUT,5/16" - 18, Gr 5
4шт.
131402H
WASHER
.344 x .562 x .054 pln
4шт.
5
3138640R1
GASKET
injection pump cover
1шт.
6
3228133R93
SEAL KIT
PACKAGE, crankcase oil seal service replaces 3136724R94, consists of retainer, distance (NSS), seal, radial lip (NSS)
1шт.
713778R1
O-RING,3mm Thk x 55mm ID
RING, sealing
1шт.
932681R1
DOWEL,4mm OD x 24mm L
Pin M4 x 24, Oval
1шт.
932224R1
DOWEL,M4 x 32, Oval
PIN, 4M6 x 32
1шт.
932652R1
DOWEL,4mm OD x 28mm L
PIN, 4M6 x 28, instructions (NSS)
1шт.
7
3055982R93
DRIVE, ANGLE
1шт.
8
3132116R1
NUT
hex
1шт.
9
3056986R1
SUPPORT
COUPLING, drive angle
1шт.
10
3052295R91
SEAL,6mm ID x 16mm OD x 7mm Thk
RING, seal
1шт.
11
3055983R1
REDUCER FITTING
SPACER
1шт.
12
3051337R1
SEALING RING,M18 x 24mm OD x 1.5mm Thk
Packing M18 x 24 x 1.5
1шт.
13
3055994R1
GASKET
crankcase front cover
1шт.
14
3132541R1
GASKET
closing cover
1шт.
15
3136061R92
COVER ASSY
1шт.
Engine serial no. 318209 and below.
1шт.
15
3228003R1
COVER ASSY
1шт.
Engine serial no. 318210 and above.
1шт.
179827
FRONT AXLE
4шт.
9635082
NUT,5/16" - 18, Gr 5
4шт.
16
3055239R1
GASKET
front plate
1шт.
17
3055065R1
STUD
2шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
18
3055996R11
PLATE ASSY.
PLATE ASSY, crankcase front, Bosch injection
1шт.
179814
SPACER
5/16 x 5/8 pln type 5
7шт.
3050129R1
LOCK WASHER
WASHER, lock
7шт.
20990R1
PLUG
3/8-18 pln h/hd pipe
1шт.
Выбрано товаров: 42
