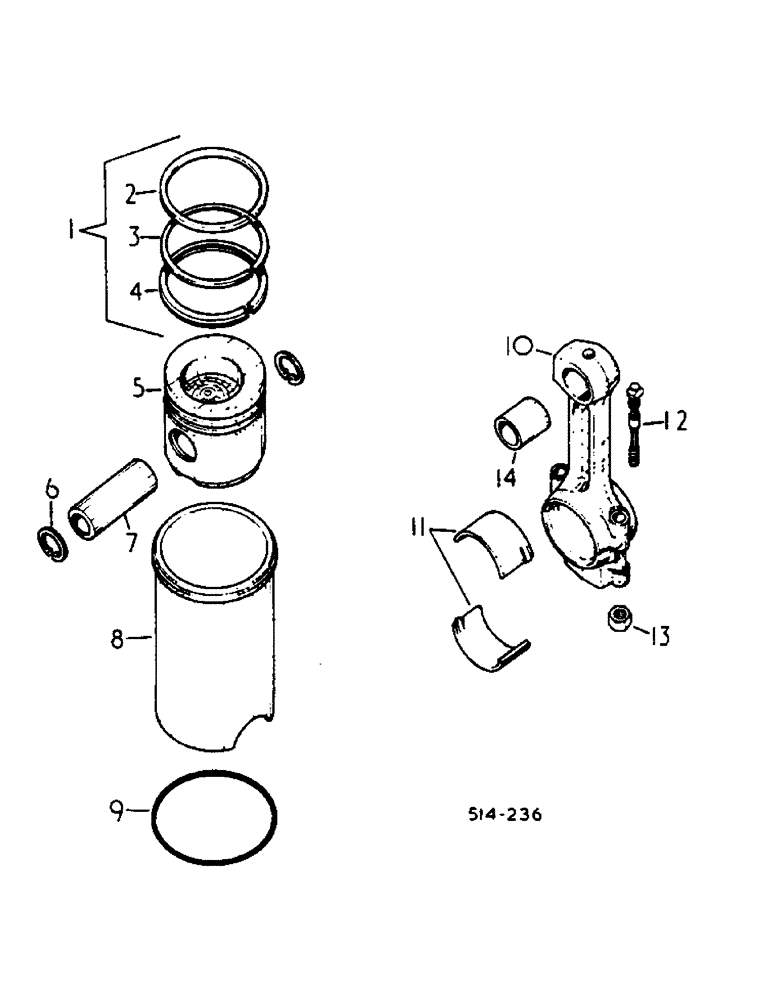

Запчасти Case IH 584 (12-19) - CONNECTING ROD, PISTONS AND SLEEVE Power

1

3218416R91

PISTON RING SET

RING SET, piston, chrome, used w/3 ring pistons

4шт.

2

NSS

NOT SOLD SEPARAT

RING, compression, first, used w/3 ring pistons, order set 3218416R91

4шт.

3

NSS

NOT SOLD SEPARAT

RING, compression, second, used w/3 ring piston, order set 3218416R91

4шт.

4

NSS

NOT SOLD SEPARAT

RING, compression, third, used w/3 ring pistons, order set 3218416R91

4шт.

5

3218758R95

SLEEVE ASSY

PISTON W/SLEEVE, 3 ring piston

4шт.

Replaced by 3228771R91 This is a short stroke, high compression Sleeve and piston kit. Should contact Serv. Rep before using. 1806470C91 is the Hi Ratio, Long Stroke Kit.

1шт.

Refer to SB NEN SB 001 97 TSG DBN 5/9/00

1шт.

6

933327R1

SNAP RING,M36, Int

RING, piston pin retainer

8шт.

7

3055217R2

PISTON PIN

PIN, piston

4шт.

8

3139587R3

SLEEVE CYLINDER

SLEEVE, cylinder, 8" long

4шт.

9

3228344R1

SEALING RING,5mm Thk x 110mm ID

O-RING

4шт.

Engine serial no. D319017 and below.

1шт.

9

3228348R1

RING,4.75mm Thk x 109.16mm ID

cylinder sleeve packing

4шт.

Engine serial no. D319018 and above.

1шт.

10

3055029R24

CONNECTING ROD

ROD ASSY, connecting, w/two bolts and bushing

4шт.

11

3055351R91

BEARING ASSY

BEARING ASSY, connecting rod, std

4шт.

11

3056834R11

BEARING ASSY

BEARING ASSY, connecting rod 0.25 U/S

4шт.

Engine serial no. D319018 and above.

1шт.

12

3055033R11

BOLT

W/Nut, Connecting rod

8шт.

13

3055034R1

NUT

connecting rod bolt, not serviced separately

8шт.

14

3132018R2

BUSHING,35.34mm ID x 39.84mm OD x 34mm L

piston pin

4шт.
