Запчасти Case IH 584 (12-15) - FOOT PEDAL ACCELERATOR, LINKAGE TYPE, OUTBOARD MOUNTED PEDAL Power

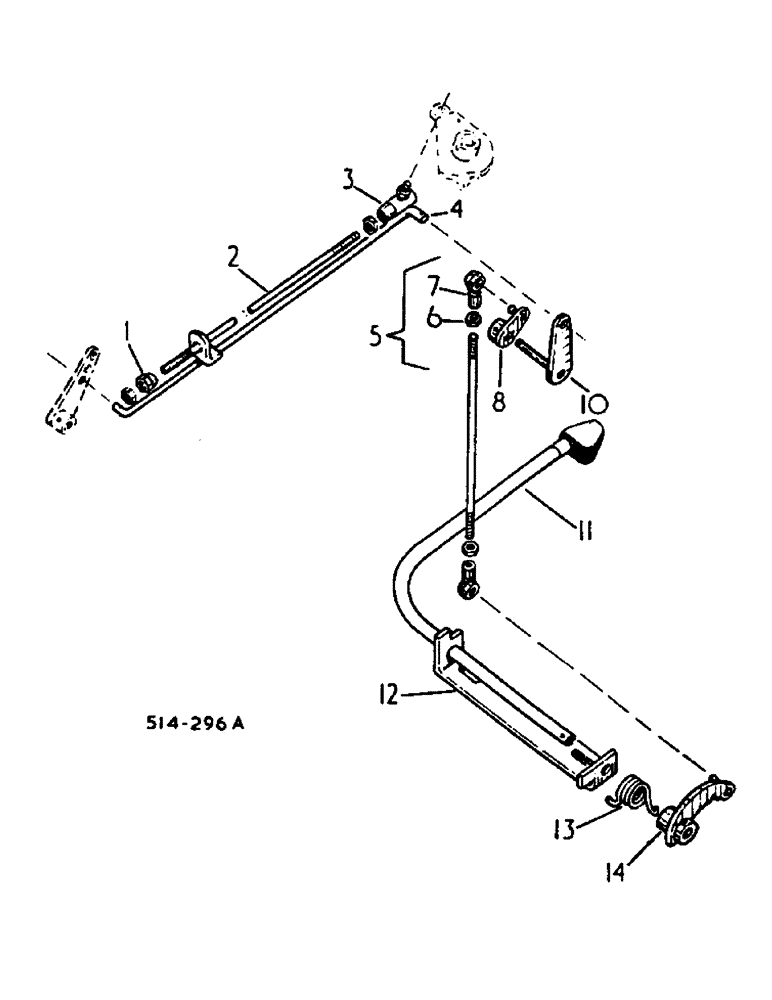

Схема запчастей Case IH 584 - (12-15) - FOOT PEDAL ACCELERATOR, LINKAGE TYPE, OUTBOARD MOUNTED PEDAL Power
6
14
10
4
8
13
3
2
12
11
7
5
1

Артикул

Название

Примечание

Количество

1

528776R1

NUT

foot accelerator pick-up rod swivel

1шт.

120613

JAM NUT,Hex, 1/4" - 28, Gr 5

1шт.

2

528775R1

ROD

foot accelerator pick-up

1шт.

3

19318R1

BALL JOINT

JOINT, 1/4-28 ball

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-NF type 5

1шт.

4

528767R1

ROD ASSY.

ROD ASSY, bellcrank pull

1шт.

103361

PIN, SPLIT (COTTER)

PIN, 1/16 x 1/2 pln cot

2шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8 type 5

2шт.

5

532108R1

ROD ASSY.

ROD ASSY, connecting

1шт.

6

114501

JAM NUT,Jam, 1/4"-20, G5

2шт.

7

1265138C1

BALL JOINT

END, connecting rod

2шт.

8

532104R1

LEVER ASSY.

LEVER ASSY, bellcrank inner

1шт.

9

(Not used this application)

1шт.

10

532100R2

ARM ASSY.

ARM ASSY, bellcrank

1шт.

120394

WASHER,3/8", SAE

WASHER

2шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

754603R1

SPACER

1шт.

11

532096R2

PEDAL ASSY.

PEDAL ASSY, foot accelerator

1шт.

12

532093R4

SUPPORT ASSY.

SUPPORT ASSY, foot accelerator pedal

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

2шт.

425-115

NUT,5/16"-24, G5

5/16-NF pln type 5

2шт.

13

532099R1

SPRING

torsion

1шт.

14

532102R1

LEVER ASSY.

LEVER ASSY, bellcrank outer

1шт.

19368R1

PIN,5/32" x 1", Coiled

1шт.

Выбрано товаров: 25
