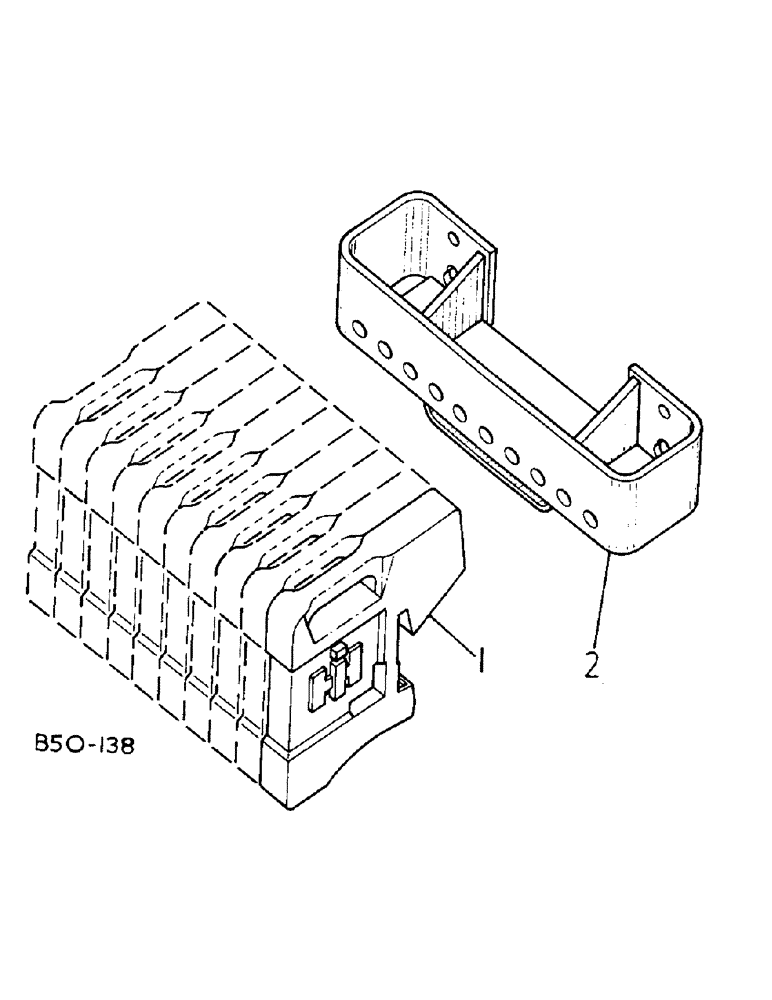

Запчасти Case IH 584 (09-13) - FRONT END WEIGHTS, ALL WHEEL DRIVE (12) - FRAME

1

383392R2

WEIGHT

front end, 67 lbs

10шт.

180194

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2 x 4 type 5

10шт.

125536

SQUARE NUT

1/2 sq type 1

10шт.

2

3123572R1

BRACKET

ASSY, front end weight

1шт.

24887R1

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 8

4шт.
