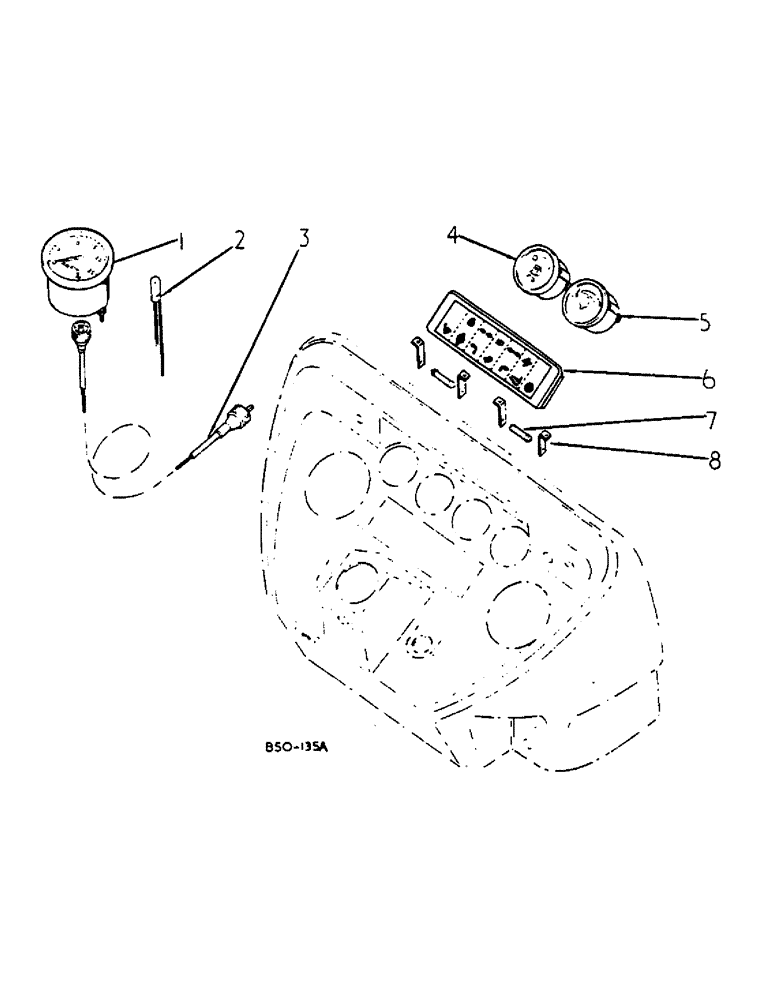

Запчасти Case IH 584 (11-02) - INSTRUMENTS Instruments

1

66455C1

GAUGE

TACHOMETER, or

1шт.

1

3125106R92

TACHOMETER

1шт.

2

3041099R1

LAMP

12v 2.2w mes cap, used w/66455C1 tachometer

1шт.

2

3123661R1

HOLDER

LAMP ASSY, tachometer/speedometer

2шт.

529233R1

LAMP

12v-3w wedge type capless

8шт.

3125084R91

CABLE

ASSY, tachometer illumination

1шт.

3

529234R1

CABLE,1480.32mm L

CABLE ASSY, tachometer drive

1шт.

289862C1

CABLE TIE,3/16" x 7"

STRAP, tachometer cable

2шт.

4

3121239R1

FUEL GAUGE

GAUGE ASSY, fuel, AC Delco, use only w/AC Delco sending unit 529790R1, or

1шт.

4

3129840R1

FUEL GAUGE

GAUGE ASSY, fuel, Icknield, use only w/Icknield sending unit 3129841R91

1шт.

5

3121240R1

ELECTRICAL GAUGE

GAUGE ASSY, water temp, AC Delco, use only w/AC Delco sending unit 3073787R91, or

1шт.

5

3127959R1

ELECTRICAL GAUGE

GAUGE ASSY, water temp, Icknield, use only w/Icknield sending unit 3127956R1

1шт.

6

1502006C1

HOLDER

warning light bulb, replaces 3121636R2

1шт.

3121718R1

SCREW

no. 6-32 x 5/8 cs hd, used w/3121636R2

4шт.

3121717R1

LOCK NUT

Lokut, used w/3121636R2

4шт.

529233R1

LAMP

12v-3w wedge type capless

6шт.

7

710196R1

BULB,C5W, 12V, 5W

Festoon C11, 12Vm 5W

2шт.

8

3121705R1

CONTACT HOUSING

lamp

4шт.

3121704R1

SCREW

no. 4-40 x 5/16 slt fil hd

4шт.

3121703R1

TERMINAL CONNECTOR

TERMINAL 1/4 BLADE

4шт.

1093380R1

PRODUCT GRAPHIC

speed chart MPH, fast speed drive train type ET, for machines w/14.9/13-28, 16 9/14-28, 16.9/14-30, 18.4/16-26 rear tires

1шт.

1093381R1

PRODUCT GRAPHIC

speed chart MPH, fast speed drive train type ET, for machines w/14.9/13-24, 16 9/16-24 rear tires

1шт.

1093213R1

PRODUCT GRAPHIC

speed chart MPH, fast speed drive train type ET, all wheel drive w/12.4/11-36, 12.4R36, 13.6/12-36, 16.9/14-30, 16.9R30, 13.6R36 rear tires

1шт.

1093221R1

DECAL

PRODUCT GRAPHIC, speed chart MPH, fast speed drive train type BT, utility, row crop & all wheel drive tractors w/16.9-30 rear tires

1шт.

1287572C1

DECAL

PRODUCT GRAPHIC, speed chart MPH, fast speed drive train type BT, utility tractors w/14.9-24, 16.9-24, 13.6-28 or 14.9-28 rear tires

1шт.

1093093R1

DECAL

PRODUCT GRAPHIC, speed chart MPH, fast speed drive train type BT, row crop tractors w/13.6-38 or 15.5-38 rear tires

1шт.

1135111R1

DECAL

rabbit and tortoise graphic

1шт.

1135097R1

DECAL

two-speed

1шт.

1135098R1

DECAL

3 N 4

1шт.

1332883C1

OIL PRESSURE GAUGE

oil pressure

1шт.

1332882C1

AMMETER

GAUGE

1шт.
