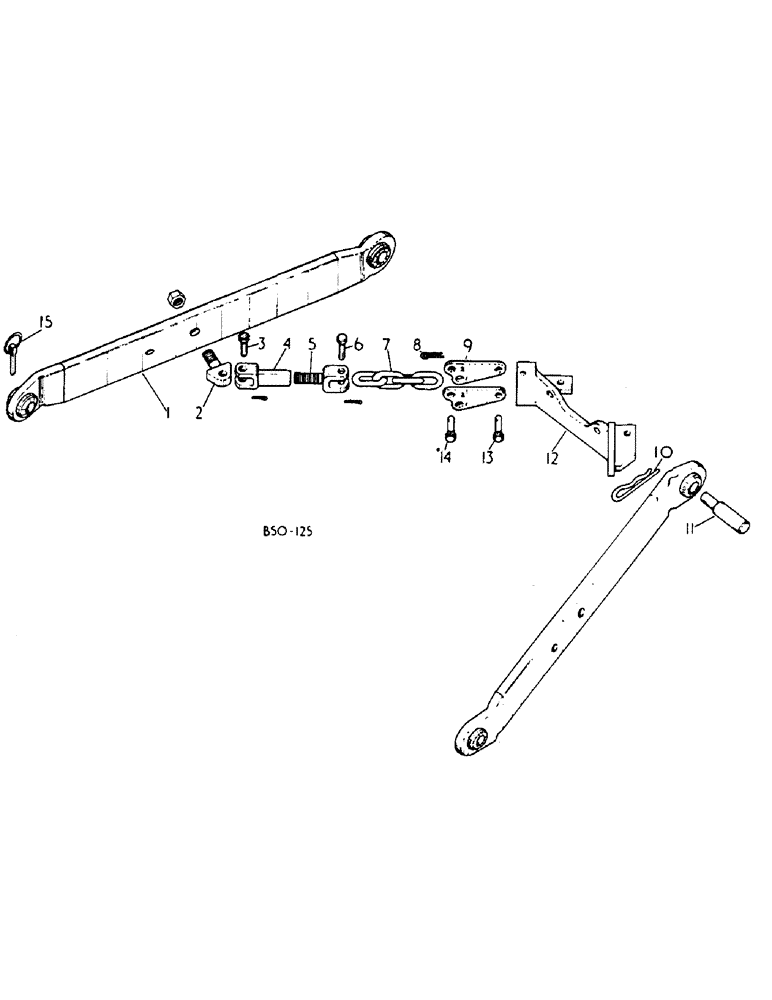

Запчасти Case IH 584 (09-04) - LOWER LINKS, 3 POINT HITCH, 33" FIXED LOWER LINKS W/ INSIDE CHECK CHAINS, ROW CROP TRACTORS (12) - FRAME

1

66250C1

LOWER LINK

LINK ASSY, lower, w/33 in fixed links

2шт.

2

527985R1

EYEBOLT,Eye, 7/8" - 14 x 1.90"

BOLT, eye

2шт.

19853R1

LOCK NUT,7/8"-14

NUT, 7/8-EF p/t lock

2шт.

3

528112R2

PIN,15.77mm OD x 54.61mm L

limiter chain

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

4

527978R1

YOKE,7/8" - 14

ASSY, limiter chain

2шт.

5

70622C1

CLEVIS,7/8" - 14

limiter chain

2шт.

6

403037R2

PIN

limiter chain

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

7

403038R1

CHAIN (AG)

CHAIN, limiter

2шт.

8

460047R1

CLIP, SPRING

PIN, quick attachable cotter

2шт.

9

403036R1

LARGE PLATE

STRAP, limiter chain adj

4шт.

10

538406R1

COTTER PIN

PIN, quick attachable cotter

2шт.

11

67829C1

PIN,28.57mm OD x 108.61mm L

lower link

2шт.

12

3123737R1

BRACKET

CPTE, check chain

1шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8 x 1-1/2 pln type 5

4шт.

13

403043R1

PIN

limiter chain front

2шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

2шт.

14

403037R2

PIN

limiter chain

2шт.

15

533189R1

PIN

ASSY, lower link

2шт.
