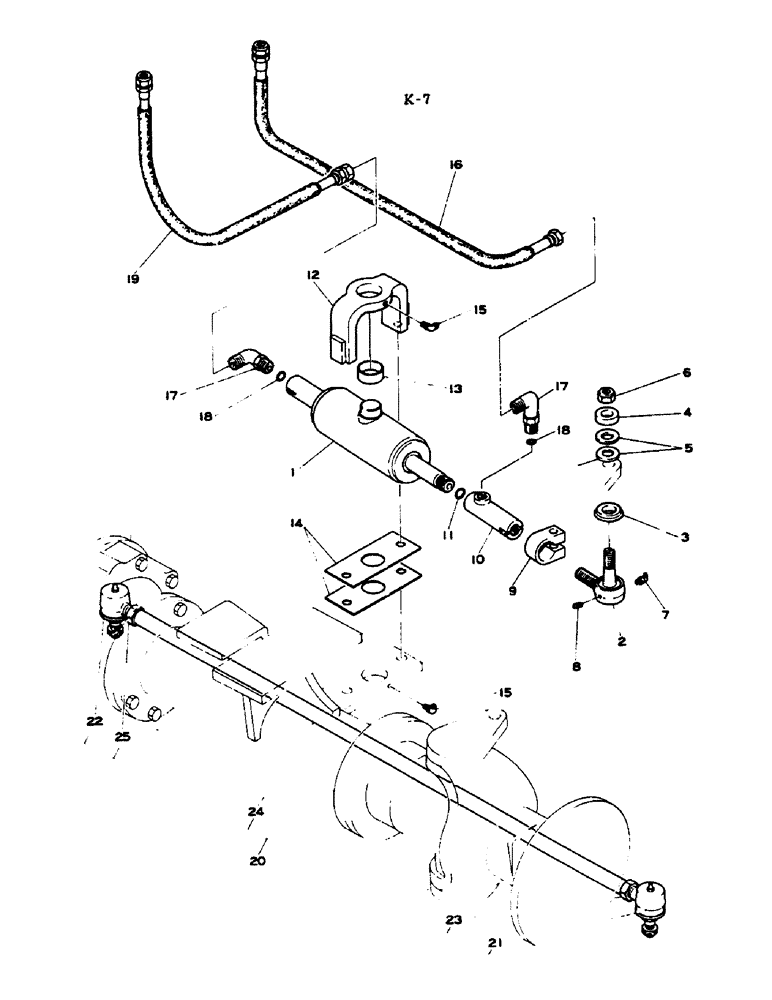

Запчасти Case IH 584 (10-24) - POWER STEERING, ALL WHEEL DRIVE, KIMCO (07) - HYDRAULICS

1

984785C93

CYLINDER BLOCK

CYLINDER ASSY, steering, Kimco

1шт.

1004716C1

KIT

o-ring & seal service

1шт.

1

3125346R91

CYLINDER ASSY.

CYLINDER ASSY, steering

1шт.

55355C91

GASKET KIT

KIT, o-ring & seal service, see parts catalog cyl-1 for service parts

1шт.

2

1004723C1

BALL JOINT

BALL, socket

1шт.

3

984623C1

SEAL

dust

1шт.

4

189074H1

SOCKET

WASHER

1шт.

5

25538R1

WASHER

.812 x 1.500 x .134 PHC hdn

1шт.

6

144423H

LOCK NUT,5/8" - 18, GC

NUT, LOCK, 5/8"-18, GC

1шт.

7

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

FITTING, grease

1шт.

8

444687

PLUG,Hex Soc, 1/8"-27

Auto, Pipe Hex Soc, 1/8"-27

1шт.

9

890356H1

CLAMP

1шт.

NLS

NO LONGER SERVICED

1/2-NF x 2-1/4 pln type 5

1шт.

23439R1

LOCK NUT,1/2"-20, GC

NUT, 1/2-NF CAD p/t lock type 8

1шт.

10

984671C1

ADAPTER

1шт.

11

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

12

984673C2

ANCHOR

or

1шт.

12

3125337R91

BOLT

ANCHOR ASSY

1шт.

25505R1

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 8

1/2 x 1-3/8 PHC type 8

2шт.

131101

LOCK WASHER

1/2"

2шт.

13

379748R1

BUSHING

2шт.

14

984875C1

SHIM

1.0mm

1шт.

14

984876C1

SHIM

0.5mm, as required

1шт.

15

1005530C1

FITTING

grease

2шт.

16

984788C1

HOSE ASSY.

HOSE ASSY

1шт.

17

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90d

2шт.

18

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

2шт.

19

984789C1

HOSE ASSY.

HOSE ASSY

1шт.

20

984133C6

TIE-ROD

ROD ASSY, tie

1шт.

21

984716C2

END

tie rod LH

1шт.

125258

SLOTTED NUT,9/16"-18, G5

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

984749C1

SEAL

dust

1шт.

974749C1

FITTING

grease

1шт.

22

984134C4

END

tie rod RH

1шт.

125258

SLOTTED NUT,9/16"-18, G5

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

984749C1

SEAL

dust

1шт.

974749C1

FITTING

grease

1шт.

23

984278R1

NUT, LH, or

1шт.

23

890356H1

CLAMP

1шт.

80289R1

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 8

1/2-NF x 2-1/2 PHC type 8

1шт.

23439R1

LOCK NUT,1/2"-20, GC

NUT, 1/2-NF CAD p/t lock type 8

1шт.

24

984226C4

TUBE

tie rod

1шт.

25

530061R1

BOLT (SPREADER)

NUT, RH, or

1шт.

25

890356H1

CLAMP

1шт.

80289R1

BOLT,Hex, 1/2" - 20 x 2 1/2", Gr 8

1/2-NF x 2-1/2 PHC type 8

1шт.

23439R1

LOCK NUT,1/2"-20, GC

NUT, 1/2-NF CAD p/t lock type 8

1шт.
