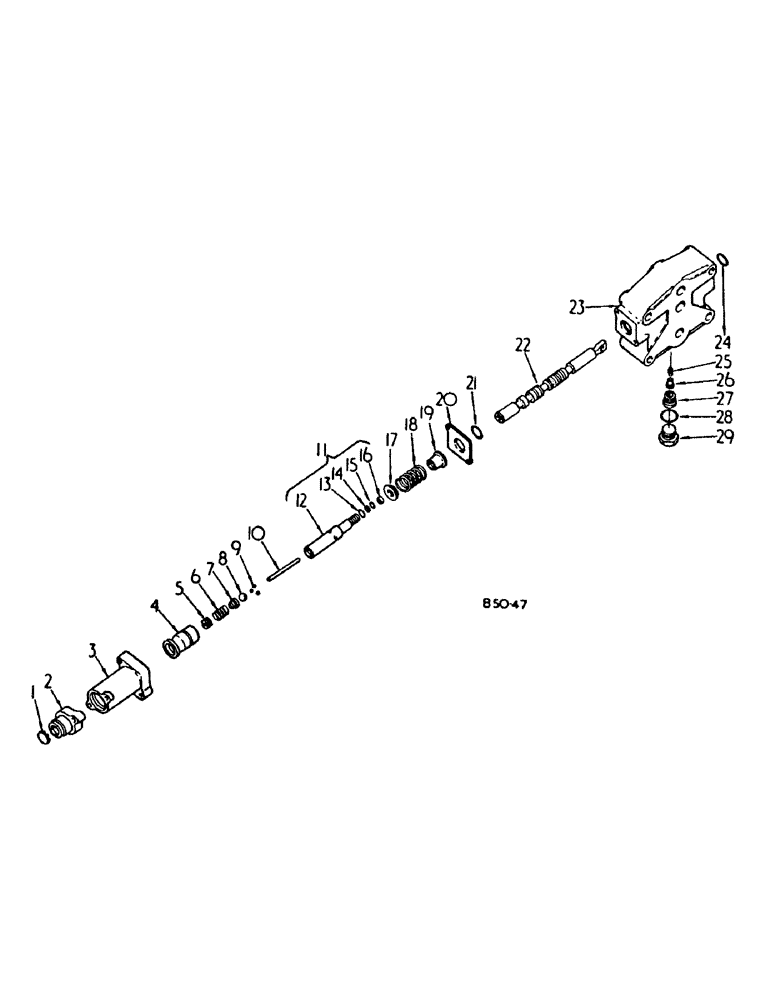

Запчасти Case IH 584 (10-22) - SINGLE AUXILIARY HYDRAULIC VALVE (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
62464C94
VALVE
hyd open center control
1шт.
1
432539
HOLE PLUG BUTTON,7/16"
PLUG, 7/16 stl button
1шт.
2
62482C1
CAP
retaining
1шт.
26629R1
12 PT SCREW,Flg, 1/4" - 20 x 1"
SCREW, 1/4 x 1.000 PHC type 8 12 pt flg
2шт.
3
62478C1
HOUSING
sleeve
1шт.
26629R1
12 PT SCREW,Flg, 1/4" - 20 x 1"
SCREW, 1/4 x 1.000 PHC type 8 12 pt flg
2шт.
4
128034C1
SLEEVE
position control
1шт.
5
377803R1
PLUG
spring retaining
1шт.
6
114032C1
SPRING
detent
1шт.
7
62480C1
WASHER
detent actuating ball
1шт.
8
17013R1
BALL,13/32" Dia
Detent actuating 13/32" Dia
1шт.
9
17007R1
BALL
7/32 cr-stl detent
3шт.
10
529905R1
PISTON
unlatching
1шт.
11
62474C91
BODY
actuator assy, consists items 12-16 incl.
1шт.
12
NSS
NOT SOLD SEPARAT
BODY, not serviced separately
1шт.
13
379795R1
O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro
3-1, .301" ID x .064" Thk, 3/16 OD tube
1шт.
14
529903R1
WASHER
back up
1шт.
15
21587R1
O-RING,0.07" Thk x 0.114" ID, -6, Cl 6, 90 Duro
1/8 x 1/4 x 1/16
1шт.
16
529904R1
RETAINER
o-ring
1шт.
17
62473C2
RETAINER
centering spring
1шт.
18
62472C1
SPRING
centering
1шт.
19
62471C1
SPRING CUP
CUP, centering spring
1шт.
20
1252320C1
RETAINER
o-ring, replaces 62469C1
1шт.
1263497C1
WASHER,16.02mm ID x 20.32mm OD x 0.51mm Thk
RING, retaining
1шт.
21
350429R1
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
5/8 x 13/16 x 3/32 valve spool
1шт.
22
NSS
NOT SOLD SEPARAT
SPOOL, valve
1шт.
23
NSS
NOT SOLD SEPARAT
BODY, valve
1шт.
24
350429R1
O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro
5/8 x 13/16 x 3/32
1шт.
25
62470C1
SPRING
check valve
1шт.
26
108867C1
VALVE POPPET
VALVE, reverse flow check poppet
1шт.
27
108868C1
SEAT
reverse flow check valve
1шт.
29
9410359
PLUG
1/2 OD tube
1шт.
9410360
PLUG
7/8-14 C-Z str thd o-ring boss
1шт.
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
5/8 OD tube
1шт.
Выбрано товаров: 35
